Summary of Contents for ZERODRAG BOOST 55A

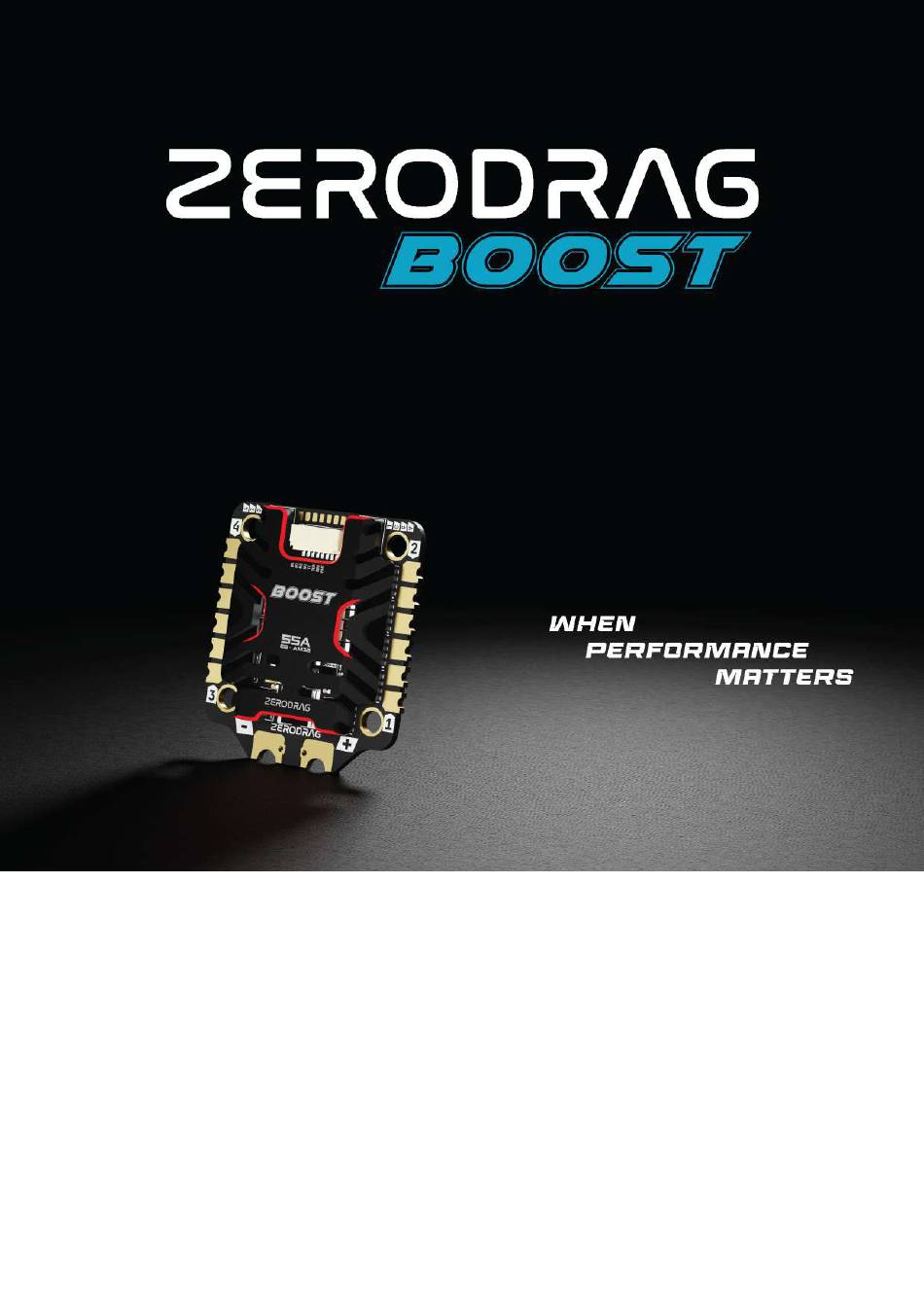

- Page 1 ZERODRAG USER MANUAL VERSION 1.0 01/01/2025 BOOST 55A...
-
Page 2: Table Of Contents
ZERODRAG INDEX CONTENT PAGE NO. Product Description Specifications In The Box Layout Installation Guide Wiring and Connection Diagram Firmware Current Sensing and Telemetry ESC Calibration Safety and Precautions Troubleshooting Contact BOOST 55A... -
Page 3: Product Description
ZERODRAG Product Description The Zerodrag BOOST AM32 55A 4-in-1 ESC is a high-performance electronic speed controller designed for various UAVs and remote control applications. This ESC supports a 3s-6s LiPo power input and uses reliable AM32 firmware, providing smooth throttle response and precise control. With current sensing and ESC telemetry support, this ESC offers advanced monitoring capabilities for optimized performance. -
Page 4: In The Box
ZERODRAG 3. In The Box • 1 x Zerodrag BOOST AM32 55A 4-in-1 ESC • 1 x XT60H Pigtail • 1 x Capacitor (35V 1000uF Rubycon) • 5 x Short Gummies (6mm) • 5 x Tall Gummies (8mm) BOOST 55A... -
Page 5: Layout
ZERODRAG 4. Layout BOOST 55A... -
Page 6: Installation Guide
Use screws with a 4mm diameter hole. ◦ Ensure that the ESC is oriented correctly, as incorrect orientation can impact performance. ◦ Use the provided Low ESR 35V 1000uF Rubycon capacitor to prevent voltage spikes that could damage the ESC, especially during power-ups. BOOST 55A... -
Page 7: Wiring And Connection Diagram
2 GND Ground 3 Current Current sensing 4 Telemetry Telemetry data 5 Signal 1 Motor 1 control signal 6 Signal 2 Motor 2 control signal 7 Signal 3 Motor 3 control signal 8 Signal 4 Motor 4 control signal BOOST 55A... - Page 8 fluctuation risks. 7. Firmware and Protocols The BOOST 55A ESC uses AM32 firmware, which enhances the responsiveness and compatibility of this ESC across various flight controllers. The firmware supports DSHOT 150/300/600 protocols, allowing users to select the preferred protocol based on their system requirements.
-
Page 9: Current Sensing And Telemetry
9. ESC Calibration and Configuration Calibration: Most DSHOT-enabled ESCs, including the BOOST 55A, do not require manual • calibration. However, you may need to update the firmware or recalibrate if issues occur. -
Page 10: Troubleshooting
Telemetry Not Showing: Ensure the telemetry wire is properly connected to the flight • controller. Error Signals: Check for any unusual beeping patterns, indicating a connection or protocol • mismatch. 12. Contact Website: https://zerodrag.in/ Instagram: https://www.instagram.com/zerodrag.in/ LinkedIn: https://www.linkedin.com/company/zerodrag/ WhatsApp: https://wa.me/9821734544 BOOST 55A...
