ATTE SDIP-20-AD0 Instruction Manual

SDIP-20-AD0
Gigabit Ethernet PoE step-down adapter
Vout 5V/12V/24V, Pout max 20W 802.3at/af oraz PASSIVE
INSTRUCTION MANUAL
The SDIP-20-AD0 adapter is designed to power additional devices via the PoE line or to reduce the
PoE voltage present in the RJ45 plug at 10/100/1000Mbps bandwidth.
Appropriate combinations of jumpers allow you to choose the right configuration of POE power
supply at the output as well as the output voltage level from the converter.
One set of jumpers allows you to select the DC output voltage of the inverter at 5V, 12V or 24V.
The second set of jumpers is responsible for configuring the power available at the LAN output port. It
allows you to transfer PoE power from the input to the output, lower the PoE voltage to the jumper
setting on the inverter, or turn off the power and leave only LAN transmission.
The adapter is designed to work with a PoE switch operating in 802.3at/af or PoE PASSIVE standard.
The device has a very small size which allows easy installation in small spaces. Additional mounting
studs or an adapter allow mounting in ABOX enclosures or on a TH35 rail.

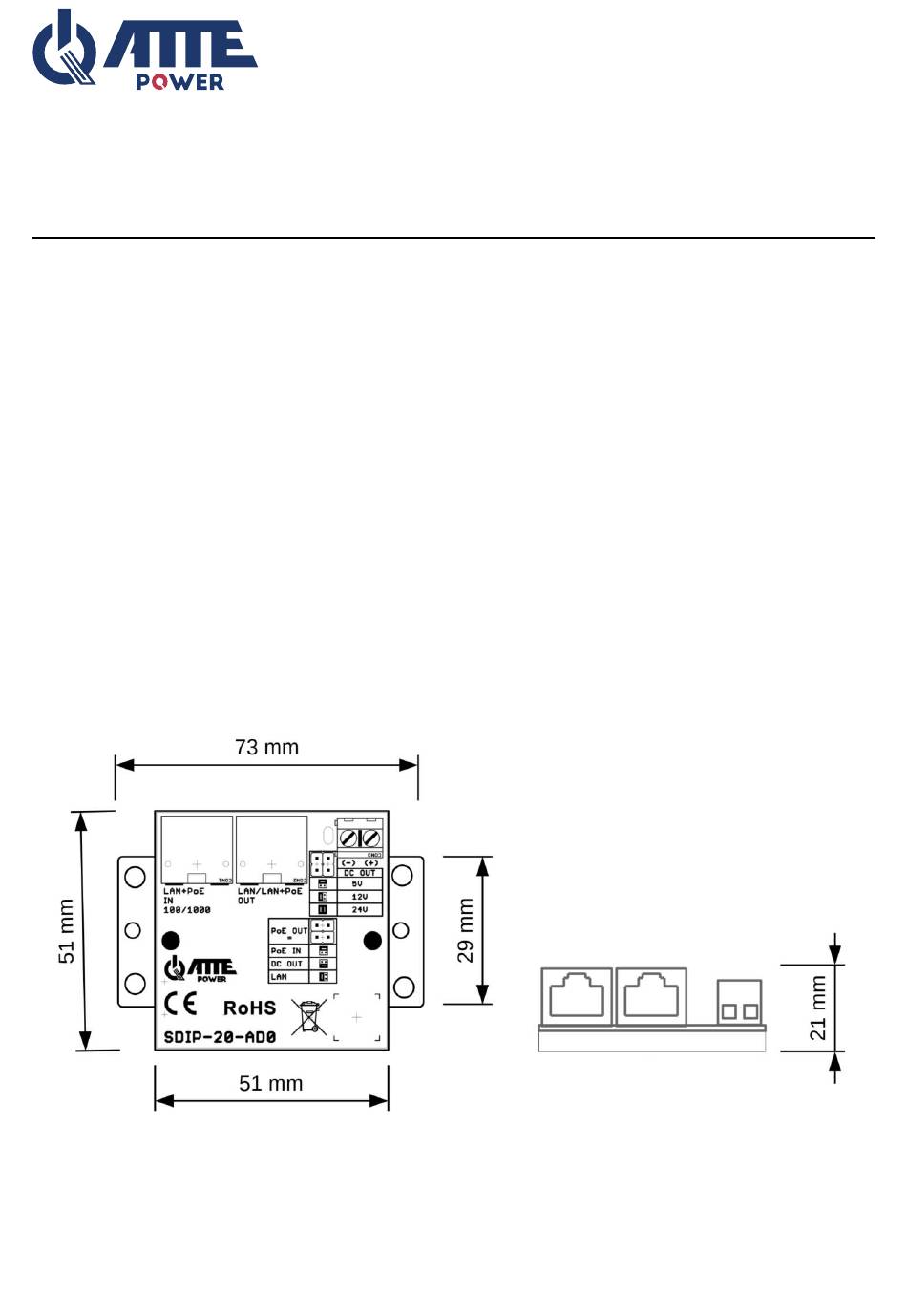

General view of the device
