Kirstein Shaman MP-50 Manual

Shaman MP-50 Power Supply
Article no.: 00046168
Precautions
1) Read these instructions before operating the unit
2) Please heed all safety warnings and keep these instructions
for future reference. Follow all instructions
4) Do not use this device near water or moisture
5) Clean only with dry cloth
6) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus that produce heat
7) Only use attachments/accessories specified by the manufacturer.
8) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as liquid has been spilled or objects have fallen into the
device, the adapter been exposed to rain or moisture or does not
operate normally.
Specifications
Shaman MP50: AC/DC Net adapter for effect pedals
Input: 110-240V/AC 50-60Hz – 18V/DC
Output: 7x9V/DC (100mA), 1x9V/DC (500mA)
1x12V/DC (100mA), 1x18V/DC 100mA
Polarity: Inner = (-), Outer = (+)
Certifications: CE (RoHS, EMC, LVD, ErP)
Dimensions: 152mm x 53mm x 29mm (LxBxH)
Weight: 230gr incl. power supply
Musikhaus Kirstein GmbH
Bernbeurenerstr. 11 / 86956 Schongau / Germany
Phone: 0049-8861-909494-0 Fax: 0049-8861-909494-19
Power supply

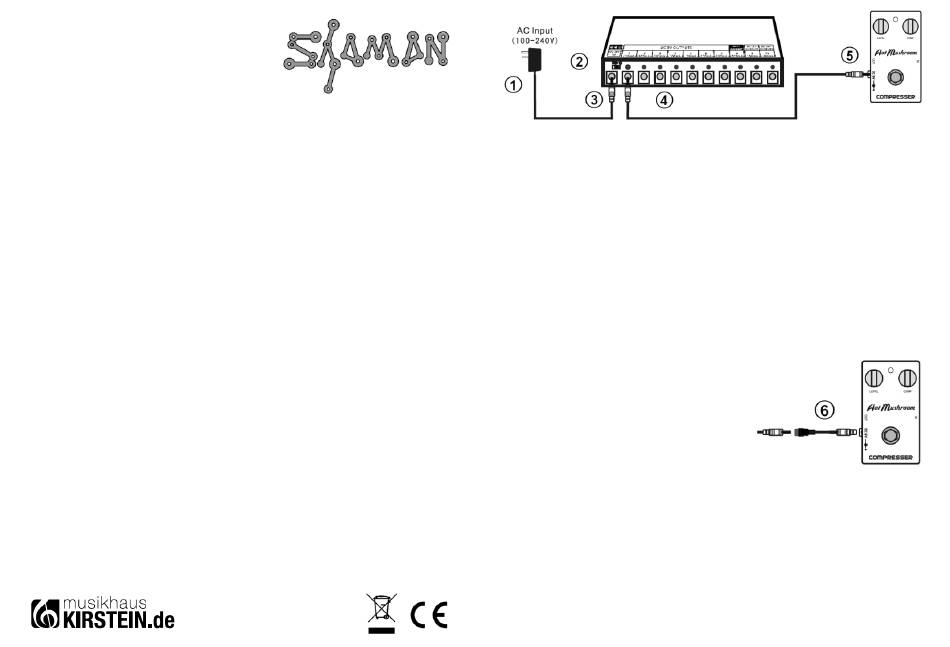

Connect the 18VDC net adapter (1) with a net socket and MP-50 multi power
supply (3). Note the local AC voltage specification.
LED indicators
With switch (2) you can switch ON/OFF the LED indicators for each output
channels
Output connectors (4)
Outer diameter 5mm / Inner diameter 2.1mm. Before power on please check
the polarity and input voltage off all effect pedals you want to supply. In general
effect pedals work with polarity (-) inner, (+) outer contact. Wrong polarity can
damage your effect pedals.
Connect your effect pedal(s) according the
specification (input voltage and current) of
your effect pedal(s) with DC-cable(s) (5). If
you have an effect pedal with outer polarity
minus you can use one of the reverse
cables (6) to change polarity.
Pack content
1pcs 18V/AC-DC net adapter
1pcs MP-50 multi power supply
10pcs DC-power cables
2pcs reverse cables
