Kelvinator KCCF140WH Service Manual

SERVICE/INSTALL MANUAL
IMPORTANT INFORMATION,
KEEP FOR OPERATOR
USA & Canada, 866-339-8515
4003 Collins Lane, Louisville, KY 40245
www.kelvinatorcommercial.com
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the consignee
to inspect the container upon receipt of same and to determine the possibility
of any damage, including concealed damage. Electrolux Professional, Inc.
suggests that if you are suspicious of damage to make a notation on the
delivery receipt. It will be the responsibility of the consignee to file a claim with
the carrier. We recommend that you do so at once.
Manufacture Service/Questions 866-339-8515.
EQUIPMENT DESCRIPTION
REFRIGERANT
MODEL NO.
TYPE
KCCF073WS R600a
KCCF140WH R600a
KCCF170WH R290
KCCF210WH R290
Kelvinator Commercial is a pending or registered trademark of Electrolux Consumer Products, Inc., and is used under a license from Electrolux Consumer Products, Inc. Information contained in
this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most updated product information and specifications.
© 2024 Electrolux Professional, Inc. All Rights Reserved.
REFRIGERANT
V/HZ/PH AMPS
WEIGHT, G
45 115/60/1 1.2
85 115/60/1 1.9
119 115/60/1 1.9
128 115/60/1 1.9
This manual provides information for:

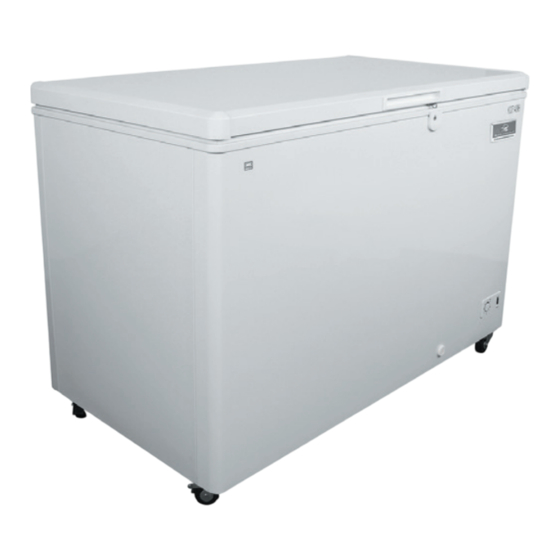

CHEST FREEZER
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Electrolux
Professional, Inc. reserves the right to make changes in design and specifications
without prior notice. NOTICE: Please read the entire manual carefully before
installation. If certain recommended procedures are not followed, warranty claims
will be denied.
The serial number of all self-contained refrigerators and freezers is located inside
the unit on the left hand side near the top on the wall. Always have the serial
number of your unit available when calling for parts or service. This manual
covers standard units only. If you have a custom unit, consult the customer service
department at the number listed in this manual.
CAPACITY
HP BTU
STORAGE (CU FT)
7 1/8 140
14.2 1/5 1500
17.3 1/5 1740
20.9 1/5 2100
PART NUMBER HB_738371_9F73837100, REV. A (07/23)
CHARGE OZ SHIP WEIGHT LBS
1.9 99
3 187
4.2 205
4.52 240
REV. D (09/24)
NEMA PLUG
5-15P
5-15P
5-15P
5-15P
