Summary of Contents for Tzone TZ-BC08

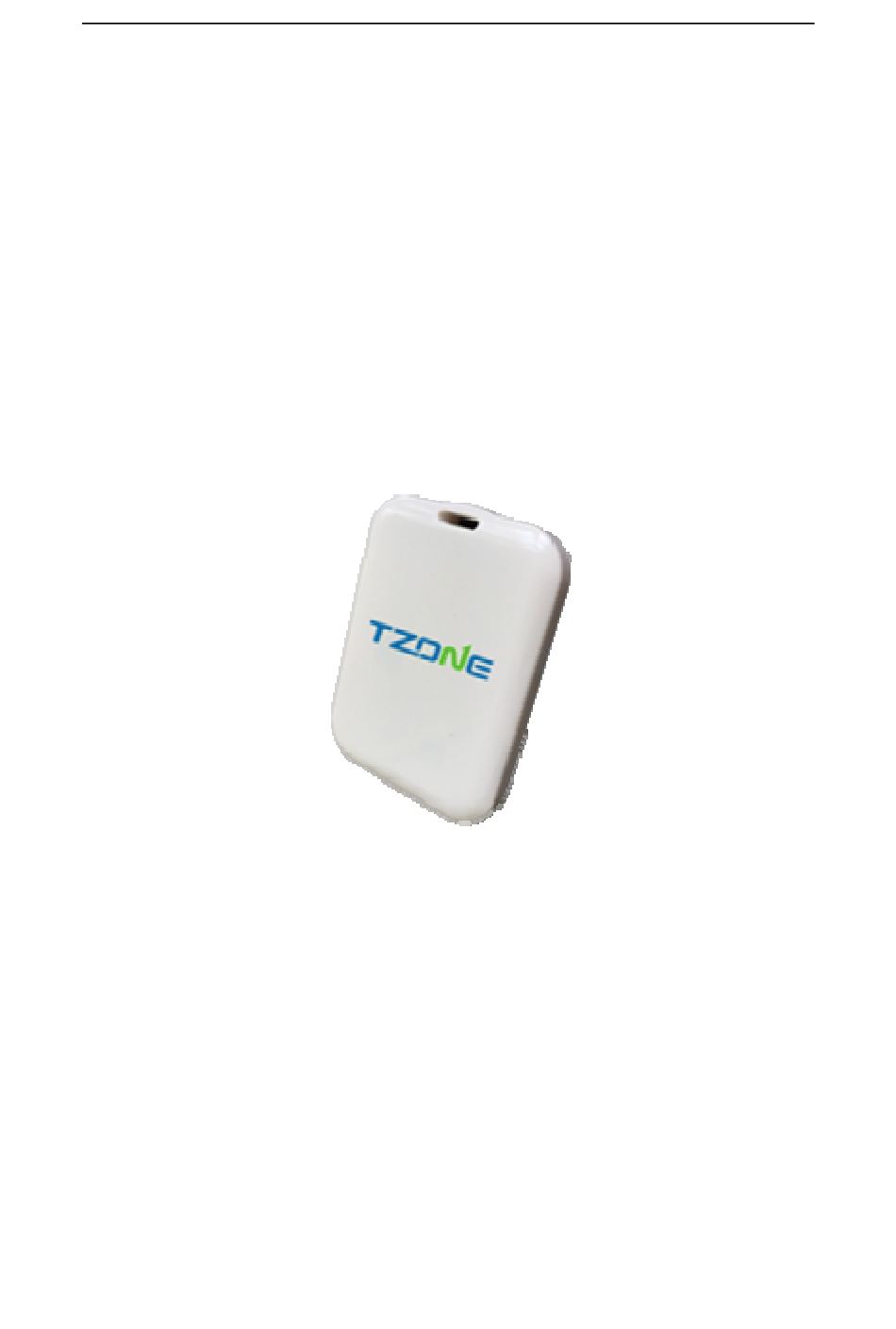

- Page 1 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com TZ-BC08 User Manual ---------- 1 / 13 ...
-
Page 2: Table Of Contents
Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com Content Product introduction ......................3 Key feature ........................3 Product Specifications.......................4 4. Applications...........................4 5. Configuration tools........................4 5.1 Instructions........................5 6. WeChat Interface Access Description..................8 2 / 13 ... -
Page 3: Product Introduction
Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com 1. Product introduction TZ-beacon is based on the current Bluetooth 4.0 low energy consumption of the latest technology. It can be used to create a base station signal. TZ-beacon base station can automatically create a signal area, the corresponding application will remind user whether access to the signal network or not when the equipment enters into the area. -
Page 4: Product Specifications
Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com 3. Product Specifications TZ-BC08 Item Parameters Chip Nordic nRF51822 Color White Size 65x50x10 mm Weight 15 gram Battery CR 2450 Voltage 3V DC Protocol Standards BLE 4.0 Suitable systems iOS 7.0 or Android 4.3above Safety Password protection Broadcast interval 0.1 s~3 s (Adjustable) -
Page 5: Instructions
Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com broadcasting strength and interval, and read battery status of our beacons. Kindly please download from Apple Store: https://itunes.apple.com/us/app/tzone-beacon/id1129067261?l=zh&ls=1&mt=8 Google Play: https://play.google.com/store/apps/details?id=tzone.beacon.config.new Configuration tools are available for customers to view and modify the parameters. There is single configuration App and batch configuration software. Opening TZBeacon configuration tool, you will see the list of beacons nearby;... - Page 6 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com a: restrict the range of beacon detection b: quantity of beacon detected c: sequence preference of the list d: refresh the list e: input Serial Number / Major / Minor for choosing beacon f: beacon list g: save the info 7.2 Beacon Configuration...
- Page 7 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com (2) Enter the password to connect Beacon. Default: 000000 or 123456. If the password is wrong, it will automatically disconnect. (3) After pressing “Connect”, the UUID, Major and Minor will appear. You can reset these three parameters.
-
Page 8: Wechat Interface Access Description
Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com (5) After you set the parameters, kindly please press “Done” 6. WeChat Interface Access Description WeChat Shake Nearby function is a new feature in WeChat version 6.1, but notice that there must be beacon hardware around. This is for your reference, as Content Management System of WeChat is in Chinese. - Page 9 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com 1. WeChat application WeChat shake nearby 9 / 13 ...
- Page 10 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com 10 / 13 ...
- Page 11 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com Get equipment ID distributed by WeChat. Modify UUIS, Major, Minor value of TZBeacon with the configuration tool according to the value allocated by Wechat. Test ID can use the test ID below to configure the Beacon, Experience "Shake it off" of WeChat.
- Page 12 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com UUID: FDA50693-A4E2-4FB1-AFCF-C6EB07647825 Major: 10003 Minor: 18679 2. Allocate Wechat "Shake nearby" Three point among the information: logo / main title six words / subheading seven words. A mobile version micro website is: the content you want to display.
- Page 13 Tzone Digital Technology Co., Ltd. Website: www.tzonedigital.com § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
