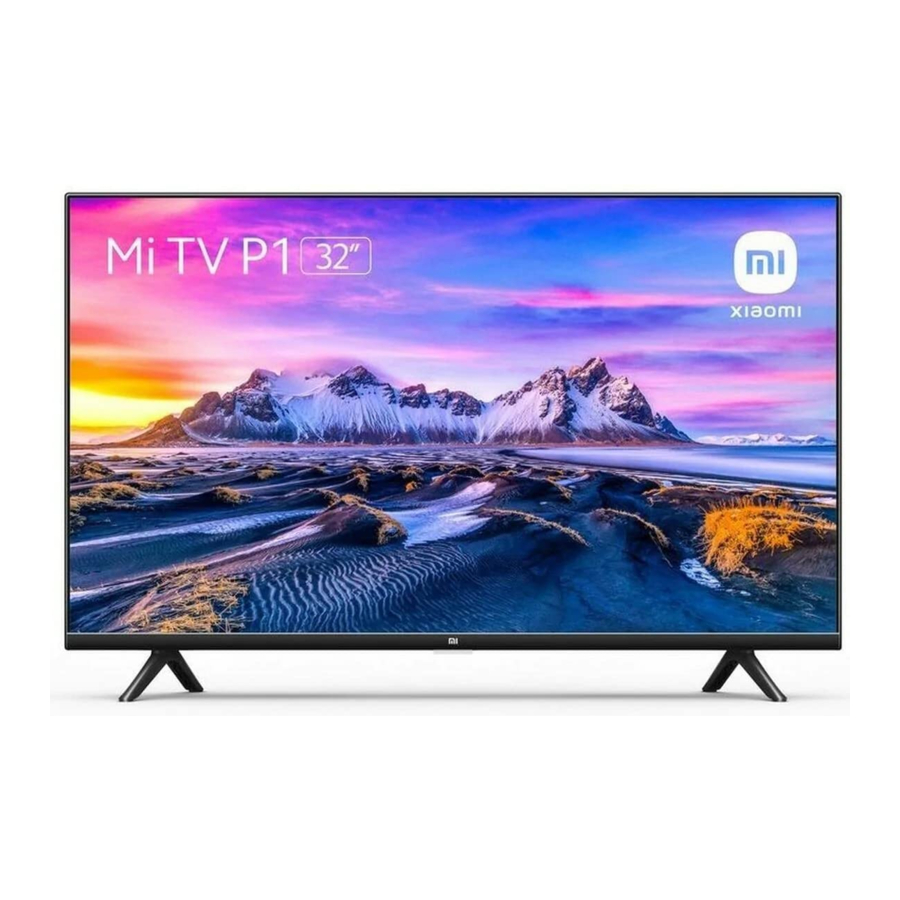

Xiaomi Mi TV P1, Mi TV P1E (L32M6-6AEU, ELA4740EU) Manual

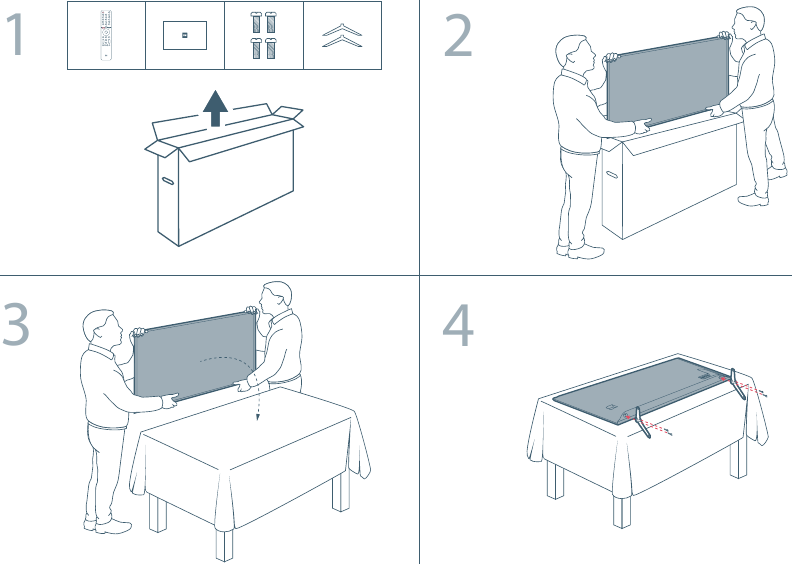

Unpacking

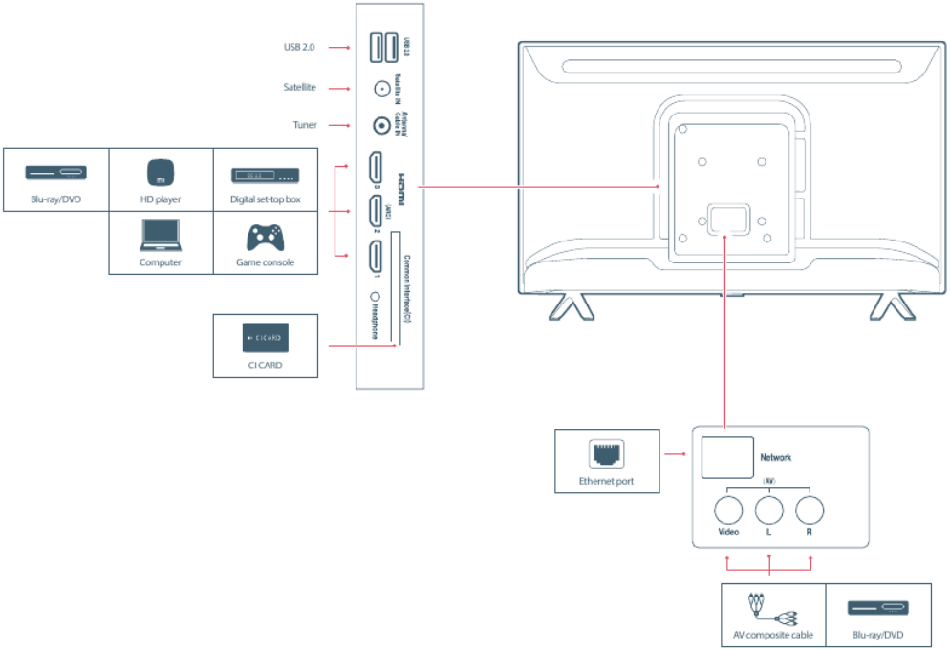

Overview

Specifications

Using the remote control

Power: Turn On and Off the TV.
Audio Track: Select audio track from multiple audio tracks.
Number Buttons: Gives direct access to channels.
INFO: Short press to launch info bar.
TTX: Select or exit Teletext mode.
Input: Press to select available video sources.
Settings: Displays the main on-screen menu.
CH List: Press to show channel list or to switch to watch TV when current watching is not on Live TV.
Google Assistant: Press the Assistant button on your remote to use your Google Assistant*.
Netflix: Gives direct access to Netflix application.
Prime Video: Gives direct access to Prime Video application.
OK: Press to confirm current selection during navigation. You can pause/play the current video during playback, except Live Channels (Set-Top Box or RF).
Direction: Navigate up/down or left/right through content. During playback use left/right buttons to rewind/fast-forward.
Back: To go back to the last channel, or to close a menu or a application, or to go back to the previous menu.
Patchwall Home: Short press to quickly return to the PatchWall Home screen.
Android TV Home: Short press to quickly return to the Android TV Home screen. Long press to open App drawer.
Exit: Quit the menu.
Volume: To adjust the volume level. Long press Volume "-" button will mute immediately.
Channel: On live TV mode, Move the button up or down to select the channel.
Mute: Short press to mute/un-mute the volume.

* The Google Assistant is not available in certain languages and countries.

Installation

• The TV should be installed near an AC power outlet that can be easily plugged and unplugged.
• Place the TV on a smooth, flat surface to avoid the TV falling and causing injury, or damaging the TV.
• If you intend to install a TV wall mount, we recommend that you use an authorized TV wall mount.
• The diameter and length of the screws will vary depending on the wall mount model. Failure to use the correct screws may cause the TV to fall or lead to internal damage.

Moving

• Disconnect all cables before moving the TV.
• Large TV need 2 or more people to move safely. Avoid applying pressure to the LED panel when moving the TV. Avoid shaking the TV or exposing it to excessive vibrations.
• When moving the TV to a new location or to carry out repairs, package the TV using the original box and packaging materials.

Ventilation

• Do not cover the ventilation holes or insert any objects into the case.
• Keep a space for ventilation around the TV.

Wall mounting
In order to ensure proper ventilation and prevent the buildup of dust or dirt:

• Do not mount the TV flat, upside-down, or backwards, or side mount the TV.
• Do not place the TV on a shelf, carpet, bed, or closet.
• Do not cover the TV with fabric (such as curtains) or other materials (such as newspapers).

AC power cord
Use the AC power cord and socket according to the instructions below to avoid fire, electric shock, damage, or personal injury:

• Insert the plug completely into the AC outlet.
• Use the TV with a 100-240V AC power supply.
• When connecting cables, the AC power cord should be unplugged for safety reasons. Be careful not to trip over cables.
• Before carrying out work or moving the TV, disconnect the AC power cord from the AC power outlet.
• Keep the AC power cord away from heat.
• Unplug the AC power plug and clean it regularly. If the plug is covered with dust and has water vapor, its insulation quality may deteriorate, producing a fire risk.
• Avoid excessive pinching, bending, modifying, or twisting of the AC power cord, otherwise the wires may become exposed or broken.
• Do not place any heavy objects on the AC power cord.
• Do not pull the AC power cord when disconnecting the power.
• Do not connect too many devices on the same AC power outlet.
• Do not use unsuitable AC power outlets.

Children

• Do not let children climb the TV.
• Place small objects out of the reach of children in order to avoid swallowing.

Optional items

• Keep optional accessories or any devices that emit electromagnetic radiation away from the TV in order to avoid image distortion or noise.

In case of the following problems

• The AC power cord is damaged.
• The AC power outlet is not suitable.
• The TV is damaged due to a drop or impact.
• Any liquid or solid object falls into the case through an outlet, turn off the TV and immediately unplug the AC power cord.

Usage restrictions
Do not install/use the TV in the following places, environments, or conditions, otherwise the TV may malfunction and cause a fire, electric shock, damage, or personal injury.

• Places:
  Outdoors (in direct sunlight), by the sea, in a ship or other vessel, inside a car, in a medical institution, at an unstable location, next to water, or in a place exposed to rain, moisture, or mildew. If the TV is placed in the dressing room of a public bath or spa, it may be damaged by the sulfide in the air.
• Environment:
  Hot, damp, or dusty places; places where insects may enter; places that may be exposed to mechanical shock; next to flammable objects (such as candles). The TV should not be exposed to dripping or splashing water, and do not place any items containing liquid such as flower vases on top of the TV. Do not place the TV in a damp or dusty place, or in a room with steam or fumes (near a stove or humidifier) to avoid fire, electric shock, or deformation. Do not boil water, heat, cook noodles, or use mosquito coils near the TV.
• Conditions:
  Do not use the TV when your hands are wet, when the case is open, or with accessories that are not authorized by the manufacturer. In the case of a lightning storm, disconnect the TV from the AC power cord and AC outlet. Do not install the TV in an open-air location. Failure to follow these conditions may result in personal injury or damage, or cause objects to strike the TV.
• Damage to Mi TV screen
  Do not throw any objects toward the TV, otherwise the screen may be broken due to the impact and cause serious injury. In case of damage to the surface of the TV, do not touch the TV before the AC power cord has been unplugged, otherwise electric shock may occur.
• Operating conditions:
  Operating temperature: 0°C–40°C; Storage temperature: -15°C–45°C; Relative humidity: <80%.

Precautions

• Watch TV in appropriate lighting conditions. Watching TV in insufficient light or for long periods can damage your eyesight.
• The screen and case will get hot when the TV is working. This is normal.
• Not support the decoding of DTS-CD bitstream coming in from HDMI IN.

Using and cleaning the screen/case of the Mi TV
Before cleaning the LED TV, ensure that the AC power cord is disconnected from the AC power outlet. In order to avoid deterioration of the casing materials or corroding the screen coating, please observe the following precautions.

• Wipe with a soft cloth to remove any dust on the surface of the screen/case. If there is still dust, wipe with a soft cloth that has been moistened with a mild detergent.
• Do not spray water or detergent directly onto the TV. It may drip to the base of the screen or external parts, causing malfunction.
• Do not use scrub pads, alkaline/acid cleaners, scouring powder, or volatile liquids, such as alcohol, volatile oils, thinners, or insecticides. The use of the above materials or prolonged contact with rubber or vinyl products may cause damage to the screen surface and casing materials. It is recommended that you regularly clean the vents to ensure proper ventilation.
• When adjusting the angle of the TV, slowly move the TV to prevent it moving or slipping from the base.
