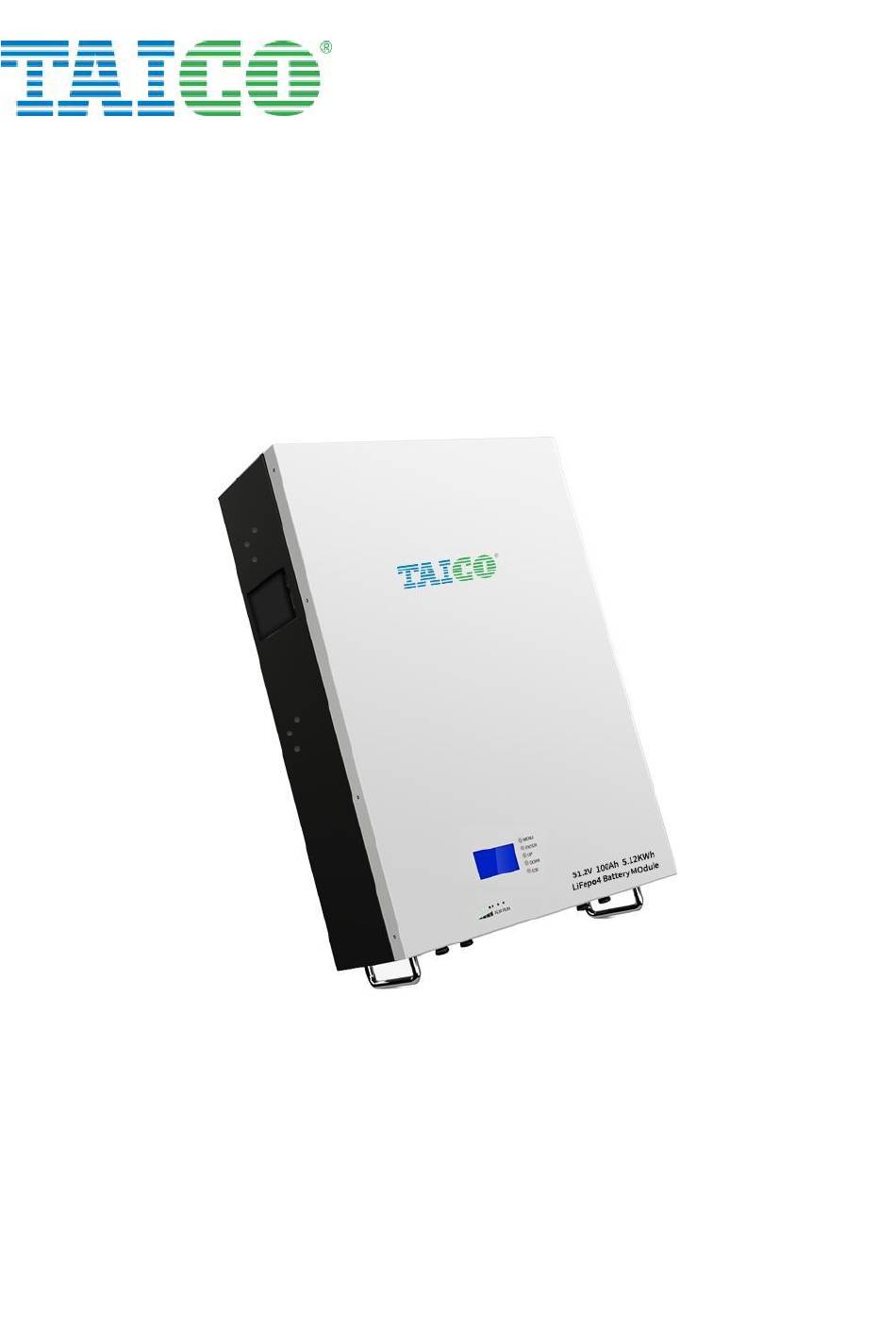

TKPW5000 (51.2V 100Ah)

Lithium Iron Phosphate Battery

User Manual

Table of Contents

Need help?

Do you have a question about the TKPW5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Taico TKPW5000

Page 1 TKPW5000 (51.2V 100Ah) Lithium Iron Phosphate Battery User Manual...
Page 2: Table Of Contents
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 Directory Directory..................... 2 1. Notes.......................3 2. Introduction....................4 3. Characteristics..................4 4. Parameter Specifications..............5 4.1 Dimensions..................5 4.2 Battery Parameters.................5 4.3 Interface Definitions................6 5. LiFePO4 Battery Safety Operating Guidelines....... 9 5.1 Application Schematic..............9...
Page 3: Notes
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 1. NOTES Attention! It is important and necessary to read the user manual carefully before （1） installing or using the battery. The safety precautions mentioned in this manual do not represent all safety matters to be observed and only complement all safety precautions;...
Page 4: Introduction
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 1.1.3 Wiring must be correct, do not mistake positive(+) and negative(-) cables, and ensure the external devices are not short-circuited; 1.1.4 Direct connection of batteries and AC power is prohibited;...
Page 5: Characteristics
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 3. Characteristics Environmental protection and pollution-free: the whole battery module using materials are non-toxic, pollution-free; long safety life: the core cathode material of battery module is made of LiFeOP4, good safety performance and long service life;...
Page 6: Parameter Specifications
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 4. Parameter Specifications 4.1 Dimensions 4.2 Battery Parameters Project Parameters Model TK48-100 (51.2V100Ah） Nominal voltage 51.2V Nominal capacity 100Ah Combination mode 16 Series Dimensions W×D×H (mm) 570×400×170...
Page 7: Interface Definitions
°C Discharge temperature range -20~60 Monitoring communications RS232, RS485, CAN Number of cycles 6000 Cycles Working environment Humidity :≤95; Altitude :≤4000 4.3 Interface Definitions 4.3.1 RESET： Reset Button When the BMS is dormant, press reset button for 3 seconds and release, the protection board will be activated, and LED indicator will light up in 0.5 seconds from “RUN"...
Page 8 TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 4.3.2 RS485-2 With a dual RS485 interface, the default baud rate is bps.9600 can be expanded in parallel battery pack, communication interconnection.
Page 9 TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 4.3.3 RS232: Default baud rate bps .9600 4.3.4 ADD : Address switch: four address switches, used to determine where the different communication address is. The lower position is off, which means 0。...
Page 10 TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 4.3.5 indicator Table 1 LED Working status indicators Electricity indicator LED Normal/alert/pro State Note tection ● ● ● ● ● ● Elimi Shutd Elimin...
Page 11: Lifepo4 Battery Safety Operating Guidelines
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 Elimi Undercurrent Elimin Elimin Elimina Elimina Elimin natio Stop discharge protection ation ation tion tion ation Temperature, overcurrent, short Alway Elimi Elimin Elimina Elimina...
Page 12: Tools
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 5.2 Tools The following tools are needed to install batteries Use insulated tools to prevent accidental electric shock or short circuit. If there is no insulation tool, use insulation tape to cover all exposed metal surfaces of the tool for insulation treatment.
Page 13: Installation Location
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 6.1 Installation location Ensure that the installation location meets the following conditions: 6.1.1 The area is completely waterproof. 6.1.2 The installation wall is flat.
Page 14: Faq Analysis And Solutions
TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 Attention If the ambient temperature is out of working range, the battery pack will stops to work. The optimal operating temperature of the battery ranges from 0 to 50 degrees Celsius.
Page 15 TAICO Technology Co., Ltd. Building 12, Feicui Street, Xuzheng County, Zhangmutou Town, Donguan City, China 523000 8.1 Undervoltage alarm ALM indicator lights flicker, RUN operation indicator lights out. Cause analysis: (1) The load current is too large that exceeds the battery’s discharge protection value.
