Summary of Contents for DIMAX GROUP Konner & Sohnen KS 3000PS

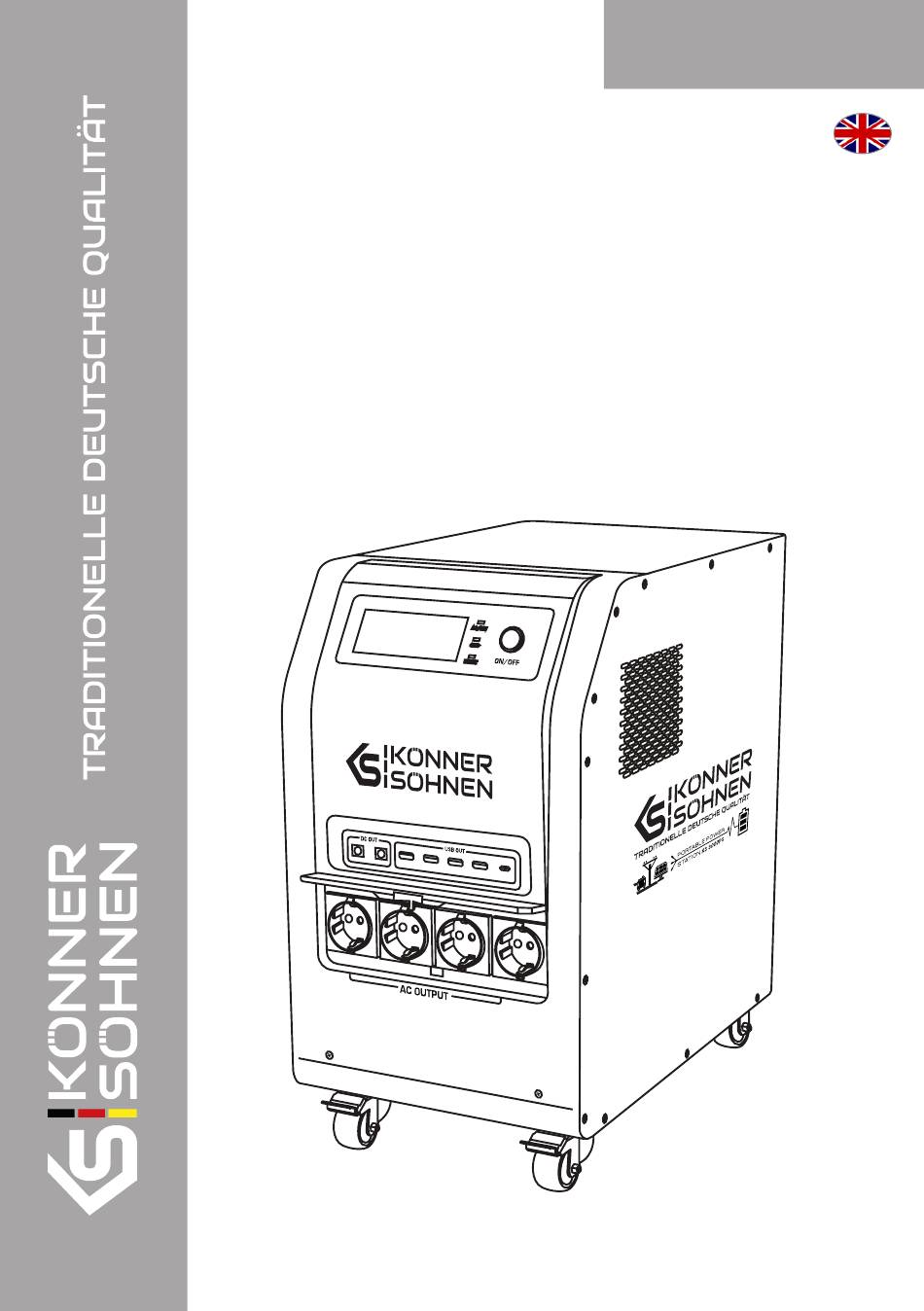

- Page 1 Owner’s Manual Please, read this manual carefully before use! Portable power station KS 3000PS KS 5200PS...
-
Page 2: Product Description
INTRODUCTION Thank you for opting for Könner & Söhnen products. This manual contains a brief description of safety, setup and use. ® More information can be found on the official importer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the manual by scanning the QR code or on thewebsite of the official importer of Könner &... -
Page 3: Main Overview
FEATURES FEATURES • Inverter module delivers a sine wave 230VAC 50 Hz with rated power of 3000W or 5200W (depending on the model) when the power factor of the load to be supplied is 1. • High performance with small dimensions, transport wheels for high mobility. •... - Page 4 1. LCD display 2. AC output indicator 3. Charging indicator 4. Fault Indicator 5. On/off switch for the inverter module 230V 6. Outputs 12VDC (DC5521) 7. Outputs USB 5V/2A, USB Type-C 1х5V/2А 8. Sockets 230V AC 9. PV input (MC4) 10.
-
Page 5: Technical Specification
TECHNICAL SPECIFICATION Model KS 3000PS KS 5200PS Rated Power 3000 W 5200 W Output Waveform Pure Sine Wave Output voltage 230 V ±5 % AC OUTPUT (INVERTER Output frequency 50Hz / 60Hz (±0,2Hz) MODULE) Peak efficiency Standby consumption < 25W (230V AC output switched off) Charging current (MPPT output), max 100A... - Page 6 Cable from the external AC power source should be protected with a two-pole circuit breaker so that the power station can be switched off CAUTION! on all poles if necessary. The circuit breaker B16 for KS 3000PS and B25 for KS 5200PS is recommended. All wiring must be performed by a qualified person.
- Page 7 AC INPUT KS 3000PS AC INPUT KS 3000PS The KS 3000PS model has the AC input with the Type C19 coupling, which can withstand the rated power of the KS 3000PS over the long time. The supplied power cable has the Type C20 plug on the device side and the Schuko CEE 7/7 (Type E/F) on the other side.
- Page 8 Most solar modules for fixed installation have an output voltage of over 30V and you can use the KS 3000PS even with 1 module. The total maximum output of the solar module must not exceed the output of the PV input by more than 25%. It is not recommended to connect more than 4 solar modules to avoid overloading the PV inputs.
- Page 9 Additional batteries with the same parameters as those installed internally (LiFePo4 25.6V for KS 3000PS or LiFePo4 51.2V for KS 5200PS) from Könner & Söhnen can also be connected to the DC input. Connecting the external battery in parallel with the internal battery is only possible if the charge level of the two batteries does not differ by more than 20%. If the charge level differs by more than 20%, only one battery should be used (just switch on the corresponding DC breaker).
- Page 10 Access to the inverter settings is now available: ENERGY USE MODES ENERGY USE MODES www.konner-sohnen.com...
- Page 11 SUB (preset at KS 5200PS) (preset at KS 5200PS) Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility energy will supply power to the loads at the same time. The battery energy will supply power to the loads only in condition of the utility is unavailable.
- Page 12 CHARGER SOURCE PRIORITY CHARGER SOURCE PRIORITY SOLAR FIRST SOLAR FIRST Solar energy will charge battery as first priority. Utility will charge battery only when solar energy is not available. Please note the energy use mode settings. SOLAR AND UTILITY SOLAR AND UTILITY Solar energy and utility will charge battery at the same time.
-
Page 13: Operation
OPERATION Before turning on the device, please reserve a distance of more than 300mm above the device and 200mm to the left and right to ensure for heat dissipation. To ensure the best operation, the ambient temperature should be between 0-40 °C. OPERATION AND DISPLAY PANEL OPERATION AND DISPLAY PANEL The operation and display panel shown as below includes 3 LED indicators, an ON/OFF switch and a LCD display, indi-... -
Page 14: Fault Reference Code
Icon Description AC input - The device is connected to an external AC power source. PV input - A solar array is connected to the PV input. Output Frequency - Indicates output frequency (50/60Hz) of the device. Error code - Indicates the error occurred inside the device. Low Temperature Warning - The internal temperature of the battery is lower than the warning temperature. - Page 15 Fault Code Fault Cause Inverter grid voltage sensor error. Inverter output current sensor error. Inverter grid current sensor error. Inverter load current sensor error. Inverter grid over current error. Inverter radiator over temperature. Solar charger battery voltage class error. Solar charger current sensor error. Solar charger current is uncontrollable.
- Page 17 CONTACTS Deutschland: Deutschland: Hergestellt unter Lizenz und Kontrolle der DIMAX International GmbH. Importeur und Vertreter in Deutschland: DIMAX International GmbHFlinger Broich 203, 40235 Düsseldorf, Deutschland. Produziert in VRC. innovationtrade8@gmail.com www.konner-sohnen.com/de www.konner-sohnen.com/de European Union: European Union: Manufactured under license and control of DIMAX International GmbH,Flinger Broich 203, 40235 Duesseldorf,Germany.
