Summary of Contents for Salto ASL-101DCTPC-PCAP-V3.1

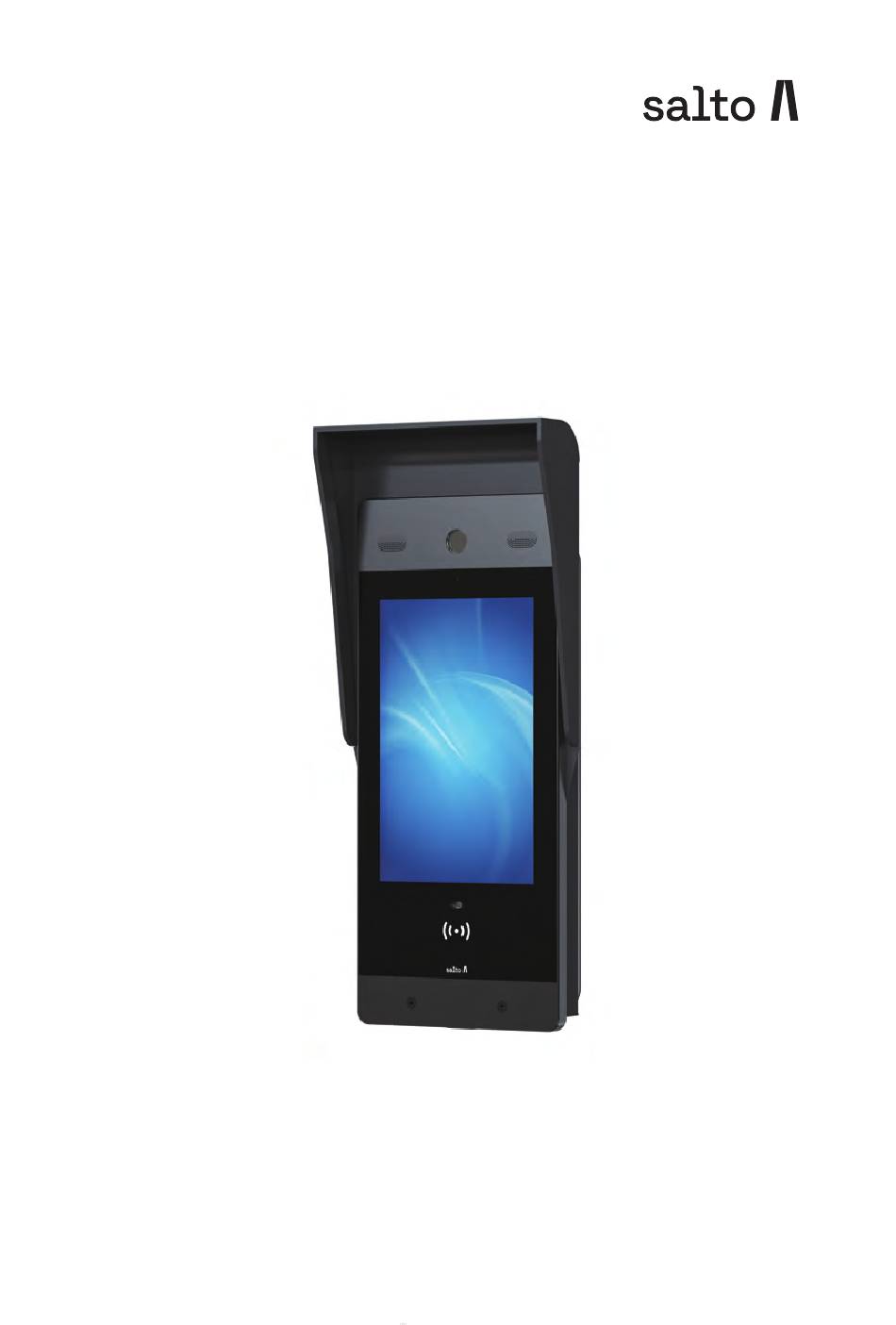

- Page 1 10.1 inch outdoor display operation instructions Model: ASL-101DCTPC-PCAP-V3.1...
-
Page 2: Table Of Contents
Content Content Safety precautions Instructions for use Precautions for installing the display Cleaning and Maintenance Flushing Mount Installation Option A: When on plaster wall Option B: When on concrete wall Surface Mount Installation Option A: When on plaster wall Option B: When on concrete wall Packaging accessories Screen interface description Basic operation instructions... -
Page 3: Safety Precautions
Safety precautions Instructions for use Please read this manual in detail before using this product and keep it in a safe place for future reference. The product specifications and other information in this manual are for reference only. They are subject to change without notice. Please do not remove any stickers on this product as this may affect the judgment of warranty time. -
Page 4: Cleaning And Maintenance
Safety precautions Cleaning and Maintenance When cleaning the screen, please gently wipe it with a clean, soft cloth without threads, and do not use sprays directly on the screen. If any foreign matter or liquid gets into the product, please turn off the power immediately, unplug the power cord, and then remove the foreign matter or liquid before sending the product back to the repair center. - Page 5 Safety precautions FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation..
-
Page 6: Flushing Mount Installation
Flushing Mount Installation Option A: When on plaster wall a. Make a square hole of 408.5*167*38 mm b. Embed the fixing box into it and fix the high and 167*38 mm deep on the wall; box by M4 expansion screws, fill the gap around the box;... -
Page 7: Option B: When On Concrete Wall
Flushing Mount Installation Option B: When on concrete wall a. Choose the location, the internal space of the wall meets Height 408.5*Width 167*Depth 38 mm. b. Make holes in the wall and install the fixing plank inside the wall and make sure that the internal space is enough Height 408.5*Width 167*Depth 38 mm;... -
Page 8: Surface Mount Installation
Surface Mount Installation Option A: When on plaster wall （1）First, make a slot in the wall for the （2）Use a template that is slightly smaller than the power cord, access control cable, network wall panel and embed it into the plaster wall. Note! cable and USB cable. -
Page 9: Option B: When On Concrete Wall
Surface Mount Installation Option B: When on concrete wall （1）First, make a slot in the wall for the power cord, access control cable, network cable and USB cable; （2）Attach the wall mount to the board; （3）Plug in the cable, align the square hole on the back of the screen with the wall-mount buckle, and then pull the screen down to slide it into the slot;... -
Page 10: Product Description
Product description Packaging accessories European power cord Power adapter M4 expansion screws Screen interface description 1. Power and access control port: this port is the DC 12V input and access control switch port; 2. Headphone Port: this port is an audio output port; 3&4. -
Page 11: Basic Operation Instructions
Basic operation instructions 1. Product Configuration ITEM SPECIFICATION Panel Model ASL-101ODCTPC-PCAP-V3.1 Max Resolution 1280x800 Aspect Ratio 16:10 Pixel Pitch 0.1695x0.1695 Panel Viewing Angle 85/85/85/85 Contrast Ratio 900:1 Brightness 1200 cd/m² Response Time 30ms Display Area 216.96x135.6mm Intel Core I3-8145U Specifications Memory Storage 128G... -
Page 12: Common Fault Analysis
Basic operation instructions 2. Common fault analysis Common Failures Possible solutions LCD screen not bright 1. Check if the power cord is plugged in properly? 2. Replace the power adapter? 3. Restart the screen and check if there is a boot screen? If so, try reinstalling the system.
