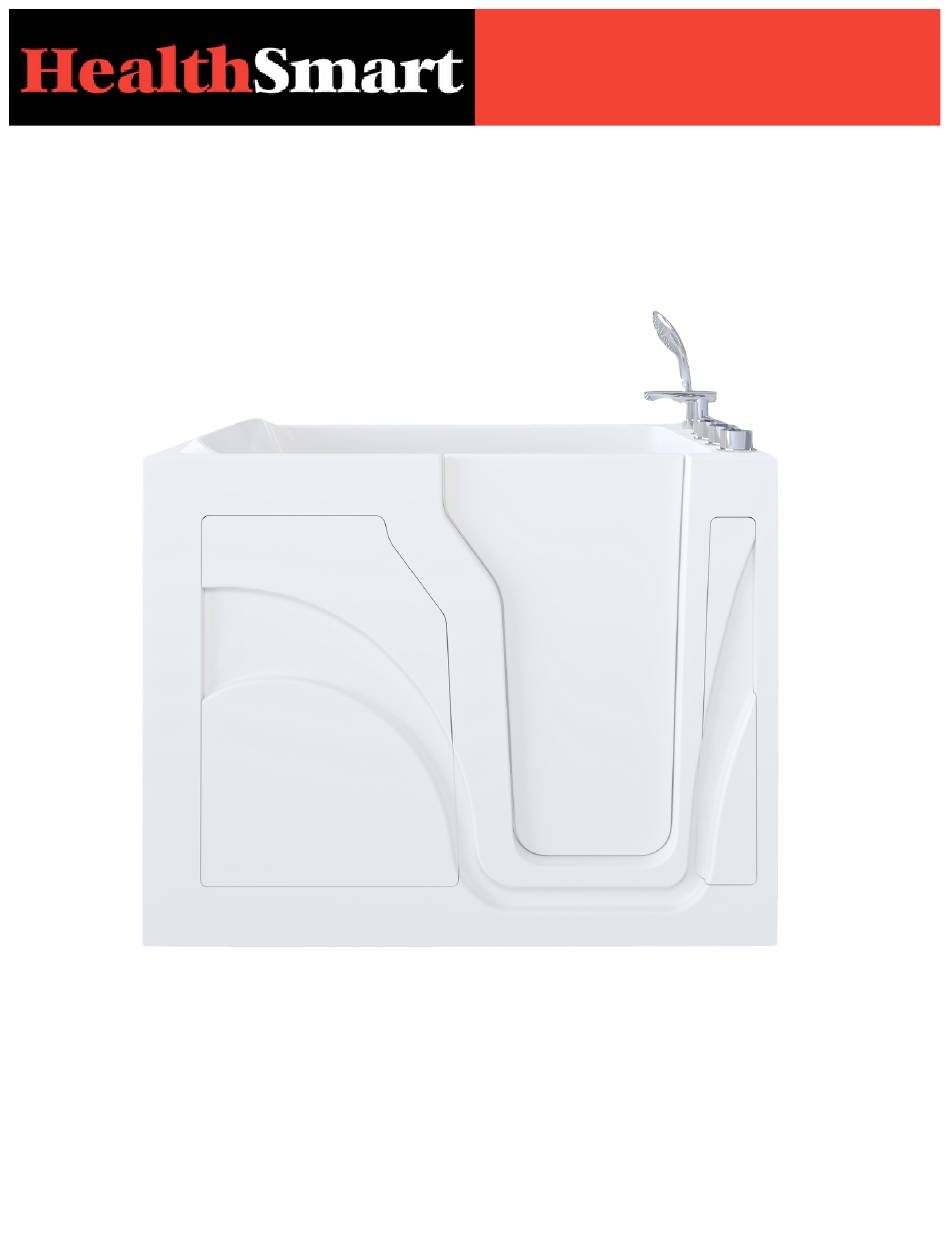

HealthSmart HS-SOAK User Manual

Walk-in bathtub
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Wa lk- I n Bat ht ub
U se r Ma nu a l
Questions? Comments?
952.884.0326
Mon-Fri 8a-5p CST
healthsmartlife@gmail.com
www.healthsmartlife.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-SOAK and is the answer not in the manual?

Questions and answers

Michael Murray
July 6, 2025

How do you replace the door seal

0

Summary of Contents for HealthSmart HS-SOAK

  • Page 1 Wa lk- I n Bat ht ub U se r Ma nu a l Questions? Comments? 952.884.0326 Mon-Fri 8a-5p CST healthsmartlife@gmail.com www.healthsmartlife.com...

  • Page 2: Safety Information

    Table of Contents Safety Information 02-03 Assembly Diagram 03-04 Installation 04-05 Optional Extension Door Drain Drain Stopper Adjustment Bathtub Operation Specifications Care & Maintenance Warranty Information Safety Information READ AND FOLLOW ALL INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING •...

  • Page 3: Assembly Diagram

    • TEST THE GROUND FAULT CIRCUIT INTERRUPTER PROTECTING THE BATHTUB IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS THIS BATHTUB IS FOR INDOOR USE ONLY, TO BE USED ONLY FOR ITS INTENDED PURPOSE AS DESCRIBED IN THIS MANUAL • INSTALL IN ACCORDANCE WITH THE MANUFACTURER’S INSTALLATION INSTRUCTIONS •...

  • Page 4: Assembly & Installation

    TOP VIEW SIDE VIEW 23½” 52” 18” 22” 20” 13” 29½” Assembly: Installation Before you begin, please familiarize yourself with the product to avoid accidental damage or injury. • Lifting the bathtub by the pipes can cause severe damage to the whirlpool air jet system; ALWAYS lift the unit by the frame to minimize the risk of damage to the unit and/or the whirlpool air jet system.
  • Page 5 Take a level and check to make sure that all the walls are level. Remove any debris around the area. Be sure to check for any obstructions that could interfere with the installation. Bring in the bathtub and position it so that all sides fit to the walls. Lock Nut Stainless Steel Use the five leveling legs provided to adjust the height and achieve uniform leveling of the...

  • Page 6: Top View

    Assembly: Optional Extension 1. Frame out 1x3 or 2x4 wood beams 2. Place extension panels using the small metal brackets [fig. 1A & 1B] 3. Put one bracket on the extension side and one bracket on the tub side 4. Pre-drill holes through the extension panel and the tub, so that the small Fig.
  • Page 7 Assembly: Drain Stopper Adjustment INCORRECT CORRECT No Air Gap Air Gap Tile Tile Cement Board Cement Board Tub Deck Tub Deck Tile Flange Tile Flange Fig. 1 Rubber Seal 1. Lift the drain stopper out of the drain. Lock Nut Internally Threaded 2.
  • Page 8 WARNING: PROLONGED IMMERSION IN HOT WATER MAY INDUCE EXTREMELY HIGH BODY TEMPERATURES, DIZZINESS, WEAKNESS, HEADACHE, NAUSEA, MUSCULAR CRAMPS, AND/ OR FEELING FAINT Bathtub: Specifications Soaker Tub Whirlpool Air Jet Tub Model No. HS-SOAK HS-WHIR Dimensions 52”L x 30”W x 40”H Extended Dimensions 60”L x 30”W x 40”H Max Water Fill...

  • Page 9: Warranty Information

    Defective component parts will be repaired or replaced and returned freight-prepaid to the owner within 30 days. Door Seal HealthSmart model bathtubs offer a lifetime warranty on the door seal. This warranty is offered only to the original purchaser and installed in the original home. This warranty is non-transferable. The warranty covers defects in the material, cracking, peeling, or degeneration of the composite material used.

This manual is also suitable for:

Hs-whir
