ADTI X-Port LR1 User Manual

Hide thumbs

Advertisement

Table of Contents

ADTi X-Port LR1
User Manual
2024.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Port LR1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADTI X-Port LR1

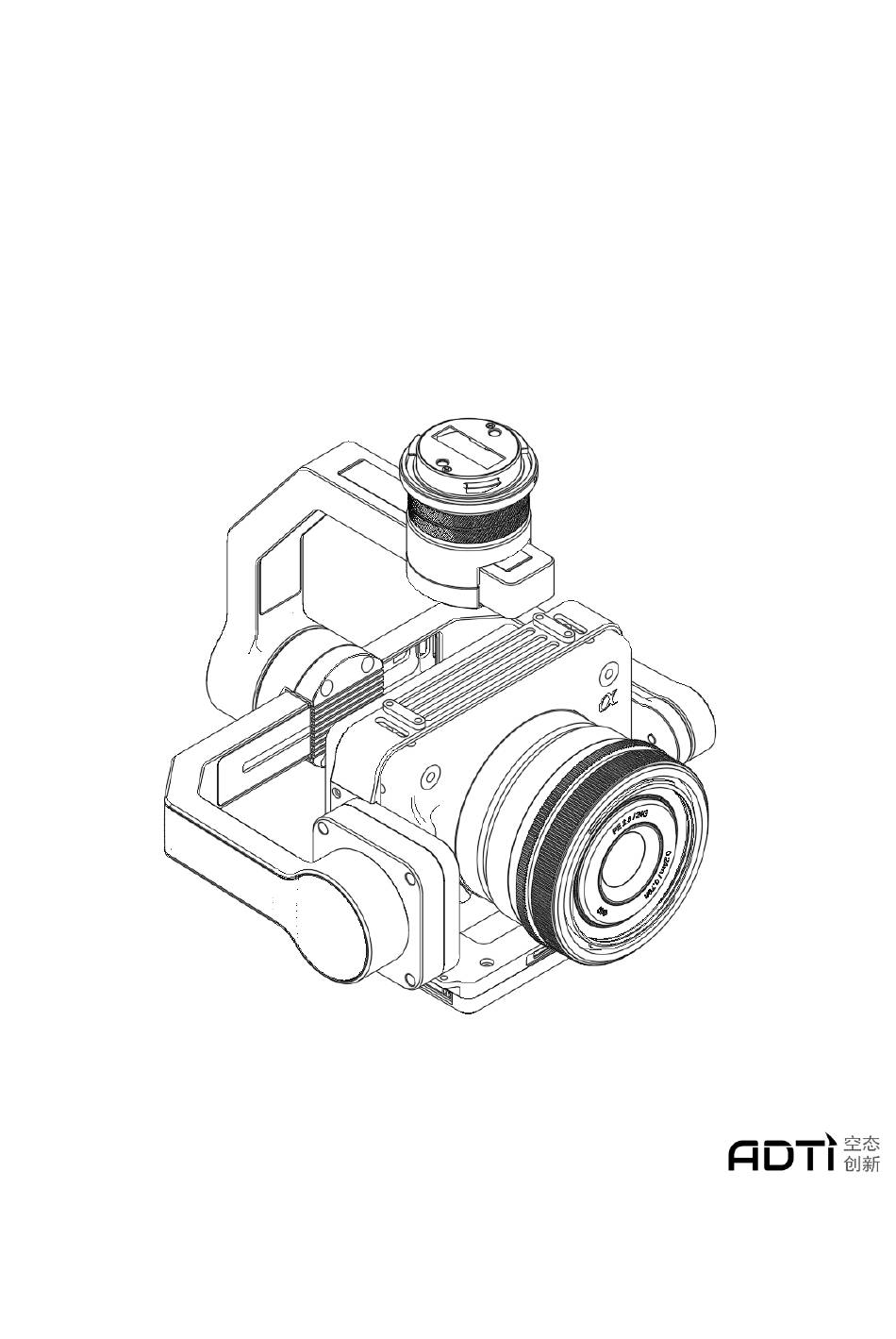

  • Page 1 ADTi X-Port LR1 User Manual 2024.11...
  • Page 2 Introduction This gimbal is specially designed for Sony ILX-LR1 camera , and integrates SONY SDK protocol. You can directly set various function parameters of LR1 through DJI Pilot2 App, and write geographic location information in real time. With DJI Zhitu software, it provides users with an integrated, high-precision, and high-efficiency aerial survey solution.
  • Page 3 1. PTZ interface 8. Control box Type-C interface 2. Translation axis motor 9. Control box camera power cord interface 3. ILX-LR1 camera installation position 10. LR1 camera power cord interface 4. Camera lens 11. LR1 HDMI interface 5. Pitch axis motor 12.
  • Page 4 Size 172.7*156.1*138.97mm Weight 450g Supported cameras SONY ILX-LR1 Working Mode Photo mode, video mode Supported lenses Lens 16-35mm - SELP1635G Lens 24mm - SEL24F28G Lens 28mm - SEL28F20 Lens 35mm - SEL35F28Z, SEL35F18F Lens 40mm - SEL40F25G Lens 50mm - SEL50F25G Lens 55mm - SEL55F18Z Lens 85 mm - SEL85F18 (Photography only) Lens 25mm - EM42FF1025...

  • Page 5: Packing List

    Packing List X-Port LR1 *1 LR1 control box*1 Camera power cable*1 Type-C to Type- C * 1 M3*6 screws*4 M2*4 screw*4...

  • Page 6: Camera Installation

    Camera Installation Step 1: Place LR1 in the gimbal camera frame Step 2: Adjust the front and rear position of the camera so that the PITCH axis remains stable when the lens faces forward, and then tighten the 4 screws on the upper and lower fixing frame.
  • Page 7 Step 3: Install the LR1 control box to the bottom of the device frame and tighten the 4 fixing screws. Step 4: Connect the cables * Connect the PTZ PSDK cable to the control box * Connect the camera power cable to the camera and control box *Connect the Type-C cable to the camera and control box...
  • Page 8 Install to aircraft 1. Remove the PTZ protective cover from the X-Port . 2. Press and hold the aircraft's gimbal and camera unlock button and remove the protective cover. 3. Align the white dot on the gimbal camera with the red dot on the aircraft interface and insert them into the installation position.

  • Page 9: Remote Control

    Remote control Matrice 300 Taking the RTK remote controller as an example, the left and right dials of the remote controller control the pitch and pan angles of the gimbal respectively; the photo and video buttons are used to control the camera to take photos and record videos ; the custom button C1 can return the gimbal to the center , and the custom button C2 can switch the main and auxiliary images.

  • Page 10: Basic Functions

    DJI Pilot2 App Control photo and video recording, and also provide professional shooting configuration. Basic functions The software interface may be updated, please refer to the latest version. 1. ADTi_CAMERA load window Displays the number of photos remaining on the camera's SD card External TF card capacity Lens parameters...
  • Page 11 Click to open/close the load parameters window 7. Photo button Click to trigger the camera to take a photo 8. PTZ angle display and PTZ motion control Displays the current angle of the gimbal, and can quickly control the gimbal back to center , gimbal down, etc.
  • Page 12 3. Exposure mode Manually select to change camera mode P_Auto: The camera automatically sets the aperture value, shutter parameters, ISO, etc. according to the working environment and metering results. A_Aperture Priority mode: The user sets the aperture value, and the camera automatically sets the shutter speed and ISO, etc. based on the operating environment, metering results, and the aperture value set by the user.
  • Page 13 Focus area setting (available with autofocus lenses) Wide: Automatically focuses on a subject covering the entire frame. When you press the shutter button halfway in still image shooting mode, a green frame is displayed around the in- focus area . Zone: Select the area you want to focus on on the display screen, and the product will automatically select the focus area.
  • Page 14 The larger the image size, the more details can be reproduced. The smaller the image size, the more images can be recorded. L:60M: 9504×6336 pixels M:26M: 6240×4160 pixels S:15M : 4752×3168 pixels 13. Video file formats Set the format of the video file saved in recording mode 14.

  • Page 15: Data Storage

    Data storage Photo data Remove the camera SD card to read the image data 1. Photo serial number: The serial number of the photo record information stored in the SD card . 2. Date: year-month-day. 3. Photo format. 4. Photo size.
  • Page 16 POS Data Remove the TF card of the control box to read the image data and POS data (when the photos are stored in the external TF, the TXT file of the POS data and the photos are in the same folder) 1.
