Summary of Contents for S-Track NAJA D301-L

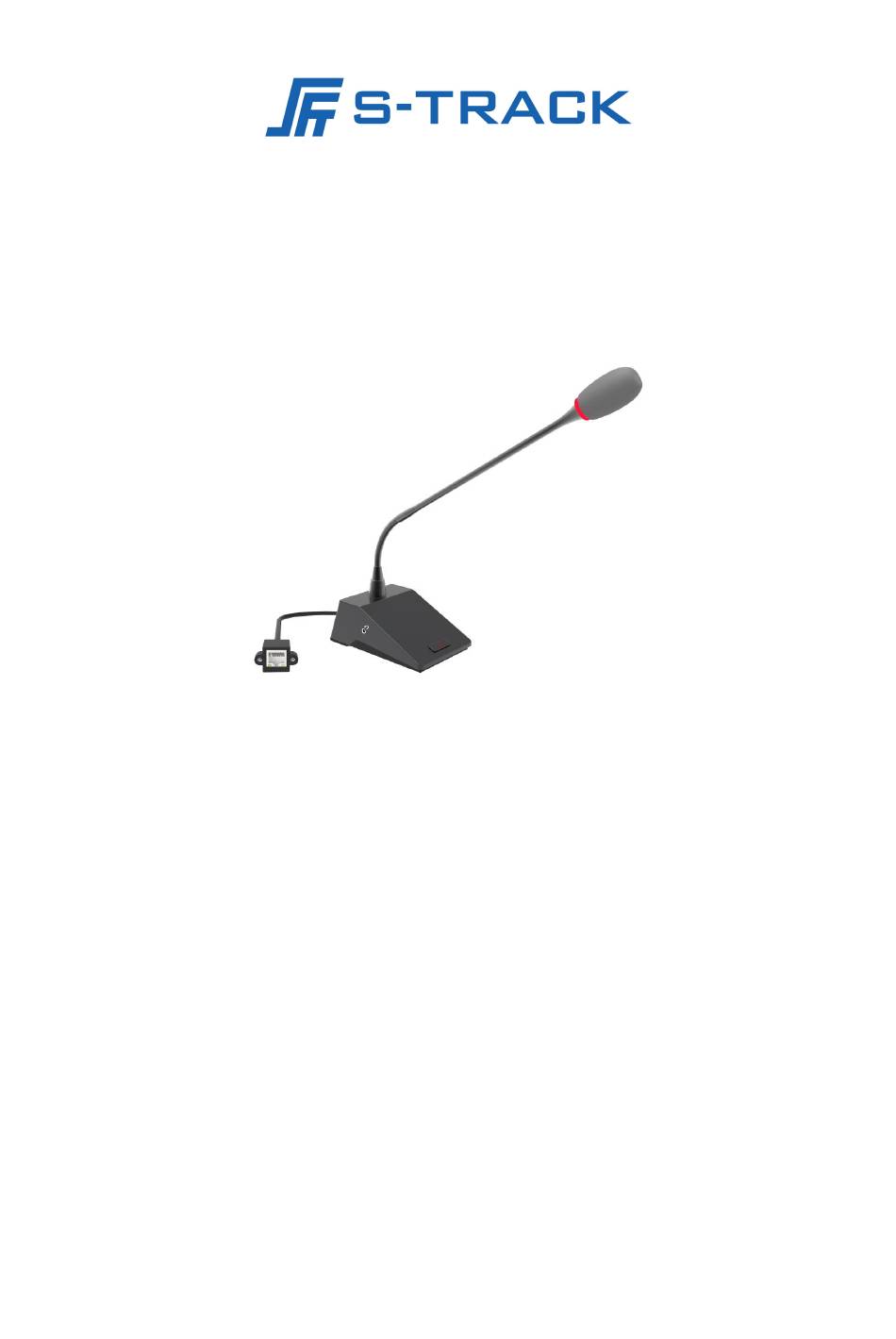

- Page 1 NAJA D301-L Dante Gooseneck Microphone User Manual...
- Page 2 NAJA D301-L Dante Gooseneck Microphone Caution To ensure the reliable use of the equipment and the safety of personnel, please observe the following matters during installation, use and maintenance: 1. When installing the equipment, make sure that the ground wire in the power line is well grounded and that the base grounding point is properly connected.
-
Page 3: Table Of Contents
NAJA D301-L Dante Gooseneck Microphone TABLE OF CONTENTS Chapter 1 Overview ..........................1 Chapter 2 Specifications ........................1 Chapter 3 Device Size ...........................2 Chapter 4 Description of the use of the interactive interface ............. 3 Chapter 5 Device Operation .........................4 5.1 Connecting the device correctly ..................4 5.2 Use ............................4... -
Page 4: Chapter 1 Overview
NAJA D301-L Dante Gooseneck Microphone Chapter 1 Overview This is a Dante interface microphone, which can realize the conversion of analog audio signal to Dante digital audio signal, long-distance transmission through the Dante interface, and power supply through POE The supported POE standards are IEEE 802.03af, IEEE 802.03at. It features... -
Page 5: Chapter 3 Device Size
NAJA D301-L Dante Gooseneck Microphone Chapter 3 Device Size... -
Page 6: Chapter 4 Description Of The Use Of The Interactive Interface
NAJA D301-L Dante Gooseneck Microphone Chapter 4 Description of the use of the interactive interface Microphone head: Used for picking up sound; Indicator light: Long light indicates that the microphone is on; no light indicates that the microphone is off;... -
Page 7: Chapter 5 Device Operation
NAJA D301-L Dante Gooseneck Microphone Chapter 5 Device Operation 5.1 Connecting the device correctly This device transmits audio signals and supplies power to the device at the same time through a single network cable, so it needs to be connected to a switch or other routing device that supports the POE power supply function. - Page 8 NAJA D301-L Dante Gooseneck Microphone...
-
Page 9: Warranty Regulations
Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1. - Page 10 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
