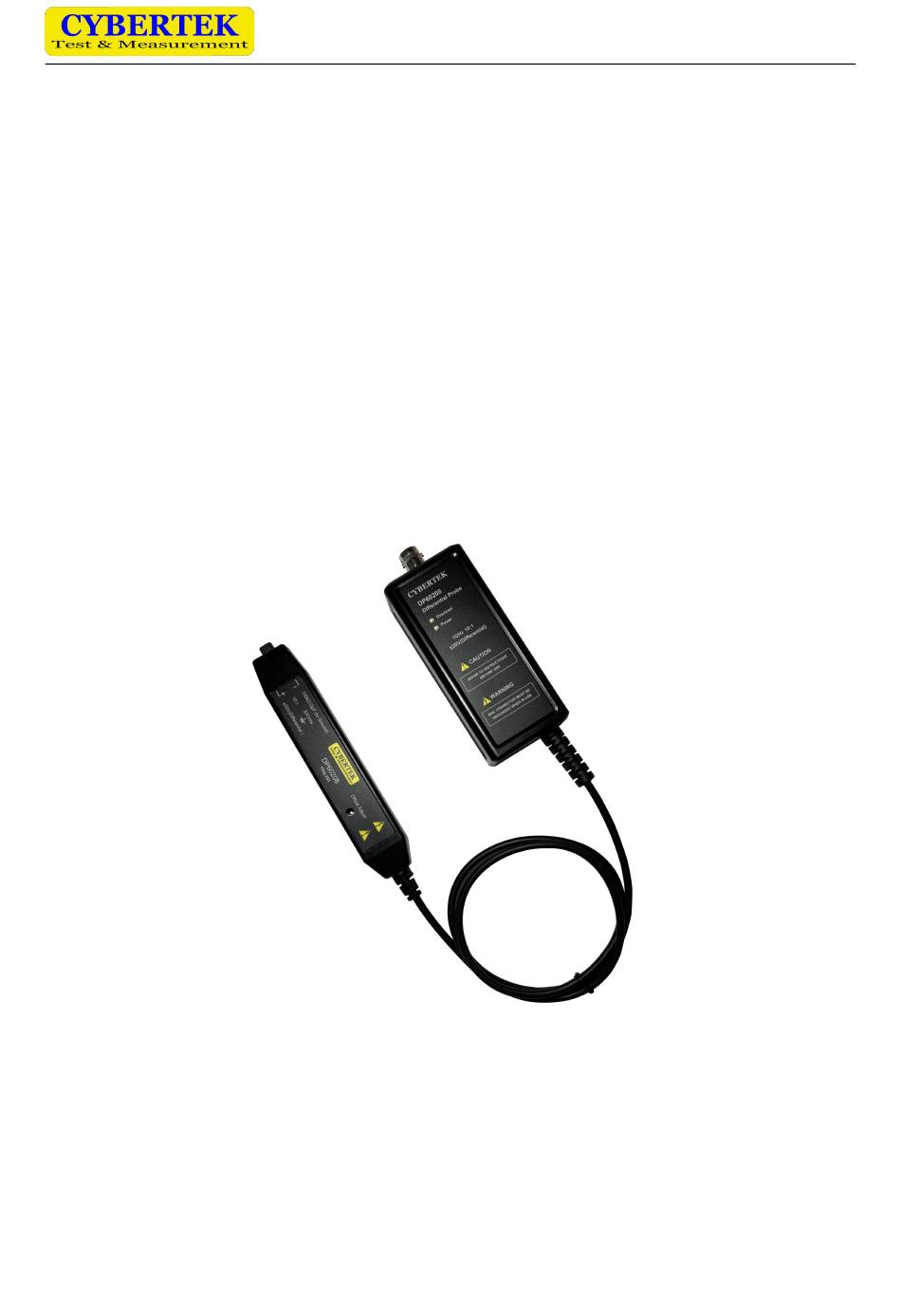

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd High Frequency Low Voltage Differential Probe DP6020B（20V/1GHz） DP6040B（40V/1GHz） DP6060B（60V/1GHz） Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Check the external surface of the probe before testing. If there’s any damage upon the probe, please stop the usage. Power the probe with the standard adapter. DP6020B/DP6040B/DP6060B Brief Description Maximum input Type Bandwidth Attenuation ratio differential voltage...
-
Page 3: Product And Accessories
Shenzhen Zhiyong Electronics Co., Ltd 1. Summary DP6020B、DP6040B and DP6060B probe is the low voltage differential probe with float ground testing function. The measurement voltage is ±20V(DC+Pk)、±40V(DC+Pk) and ±60V(DC+Pk), maximum bandwidth up to1GHz, with 10:1、 20:1 and 50:1 attenuation setting. With the overload alarm function, the probes can adapt with any oscilloscope with 50Ω... - Page 4 Shenzhen Zhiyong Electronics Co., Ltd will be lighted, and buzzer will be activated. Output Port: standard BNC output port can be connected to the oscilloscope of any brand. The input impedance of the oscilloscope is required to be 50Ω(recommended), or connect to thorough 50Ω...
-
Page 5: Electronics Specification
Shenzhen Zhiyong Electronics Co., Ltd 4.Electronics Specification Modle DP6020B DP6040B DP6060B Bandwidth(-3dB) 1GHz(see Fig 1) 1GMHz(see Fig 2) 1GMHz(see Fig 3) Rise time ≤350ps Accuracy ±1% Attenuation ratio 10:1 20:1 50:1 (DC + Peak AC) ±20V ±40V ±60V Maximum differential voltage Common mode voltage ±20V... - Page 6 Shenzhen Zhiyong Electronics Co., Ltd Fig 1: DP6020B Frequency Response Curve Fig 2: DP6040B Frequency Response Curve Fig 3: DP6060B Frequency Response Curve 5. Machinery Specification Type Parameter Test Hook (CK-285) 58mm*14.5mm*4.5mm Single Signal Pin( CK-292) 14.69mm*2mm*0.8mm Variable Pitch Signal Pin(CK-291) 14.69mm*5.08mm*2.54mm...
-
Page 7: Environmental Characteristics
Shenzhen Zhiyong Electronics Co., Ltd 6. Environmental Characteristics Type Parameter Pollution level Operating temperature 0℃～50℃ Storage temperature -30℃～70℃ Operating humidity ≤85%RH Storage humidity ≤90%RH Operating altitude 3000m Storage altitude 12000m 7. Operating Steps The range of the voltage under test should be estimated before the test. Voltage surpassing the ... -
Page 8: Packing List
50Ω thorough type load（CK-50） USB connecting cable ( USB-A to USB-C, 1.5m) CK-314 Instruction manual Warranty card Test report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel:...
