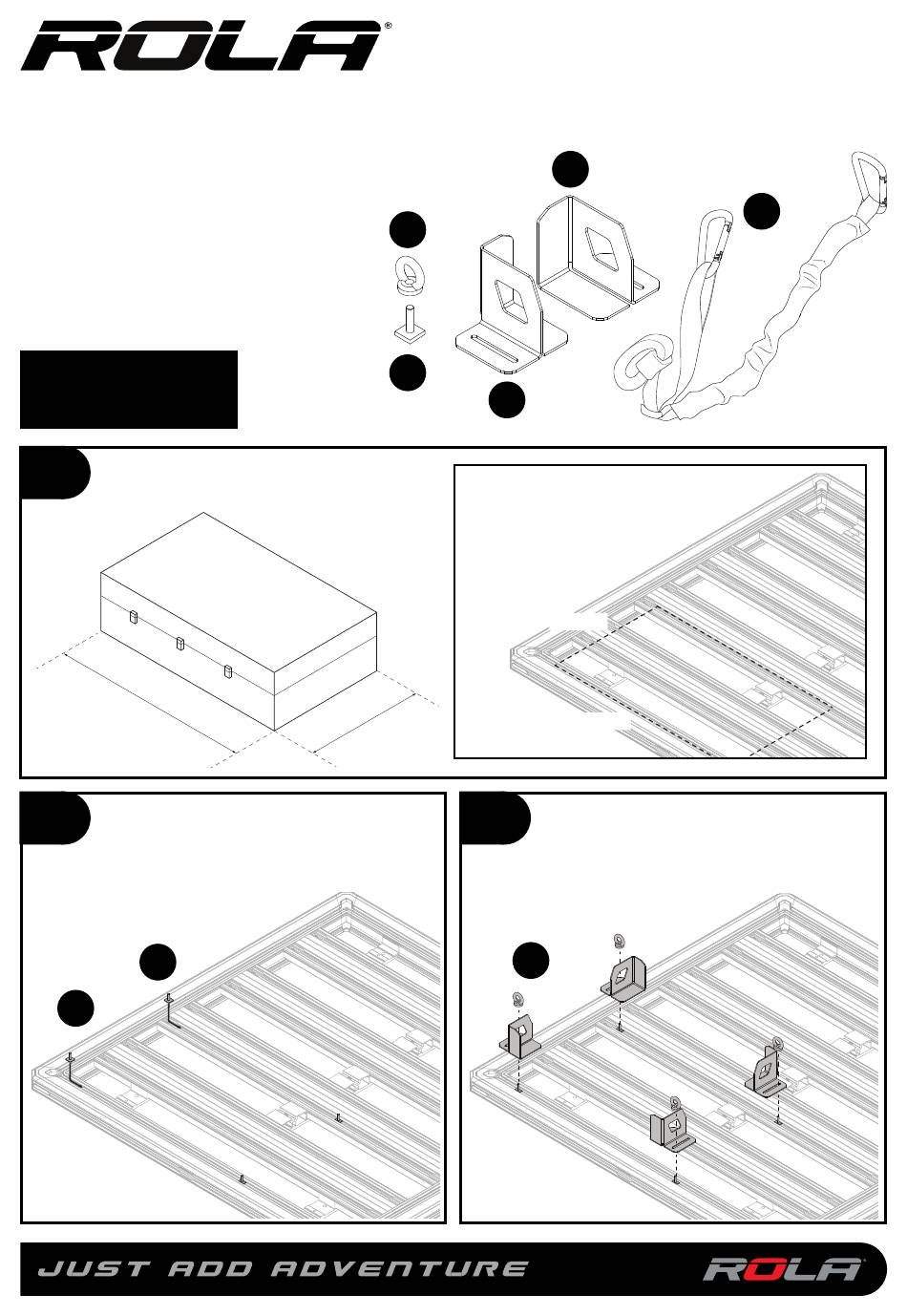

R-CB-01 CORNER BRACKET
PN DESCRIPTION
Eye-nut
1
T-bolt
2
RH Corner Bracket
3
LH Corner Bracket
4
Elastic Retention Strap
5
Tools Required:
Screw driver
Tape measure
7
1
1
Measure the size of the cargo to be housed
with the corner bracket kit.
(x-mm)
2 7
2
Slide a T-bolt into the c-channel of the
platform, moving them to dimensions of
the previous step.
2
2
QTY
4
4
1
2
2
2
2
Identify the appropriate place
on the Titan Platform to suit the
size of the cargo.
(x-mm)
2 7
3
4
(x-mm)
(x-mm)
3
Place the corner brackets into their
corresponding position. Fix with the eye-
nuts provided, finger only tighten at this
stage.
1
5
1
Advertisement
Summary of Contents for Rola R-CB-01
- Page 1 R-CB-01 CORNER BRACKET PN DESCRIPTION Eye-nut T-bolt RH Corner Bracket LH Corner Bracket Elastic Retention Strap Tools Required: Screw driver Tape measure Measure the size of the cargo to be housed Identify the appropriate place with the corner bracket kit.
- Page 2 R-CB-01 CORNER BRACKET A screwdriver can be used to tighten Place the cargo into the eye-nut in place. the Platform. Adjusting the corner brackets flush to the cargo’s corners. Attach one side of the elastic strap to an Extend the strap by loosening eye-nut.
