Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Polar Air Manuals
  4. Controller
  5. WWP V3
  6. Operation manual

Polar Air WWP V3 Operation Manual

Wired wall pad controller
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
#
Legend
S1
Monday
S2
Tuesday
S3
Wednesday
S4
Thursday
S5
Friday
S6
Saturday
S7
Sunday
S8
Timer-ON
S9
Timer-ON time
(When Timer-ON is
off:
Current time)
S10
Timer-OFF
S11
Timer-OFF time
S12
Cooling Mode
S13
Dehumidification
S14
Heating Mode
S15
Ventilation Mode
connect@polarglobalgroup.com
www.polaraircs.com
Operation Guide
#
Legend
S16
Auto Mode
S17
Sleep mode
S18
Swing mode
S19
LED lock
S20
Setting Temperature
S21
Room Temperature
S22
RH (sensor not included)
S23
CO2 concentration (sensor
not included)
S24
PM2.5 density (sensor not
included)
S25
Data Display
S26
RH percentage
S27
Fahrenheit degree
S28
Celsius degree
S29
Fan
S30
0-Auto. 1-Low.
2-Medium. 3-High
WWP V3_2024.V1
#
Legend
S31
Unit address
S32
Unit No. / Error code
S33
Weekly timer
S34
C-cooling
S35
H-heating
S36
Energy consumption
S37
Energy consumption cycle
S38
On/Off Button
S39
Mode setting
S38
On/Off Button
S39
Mode setting
S40
Fan speed setting
S41
Parameter setting
S42
Up
S43
Down
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WWP V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Polar Air WWP V3

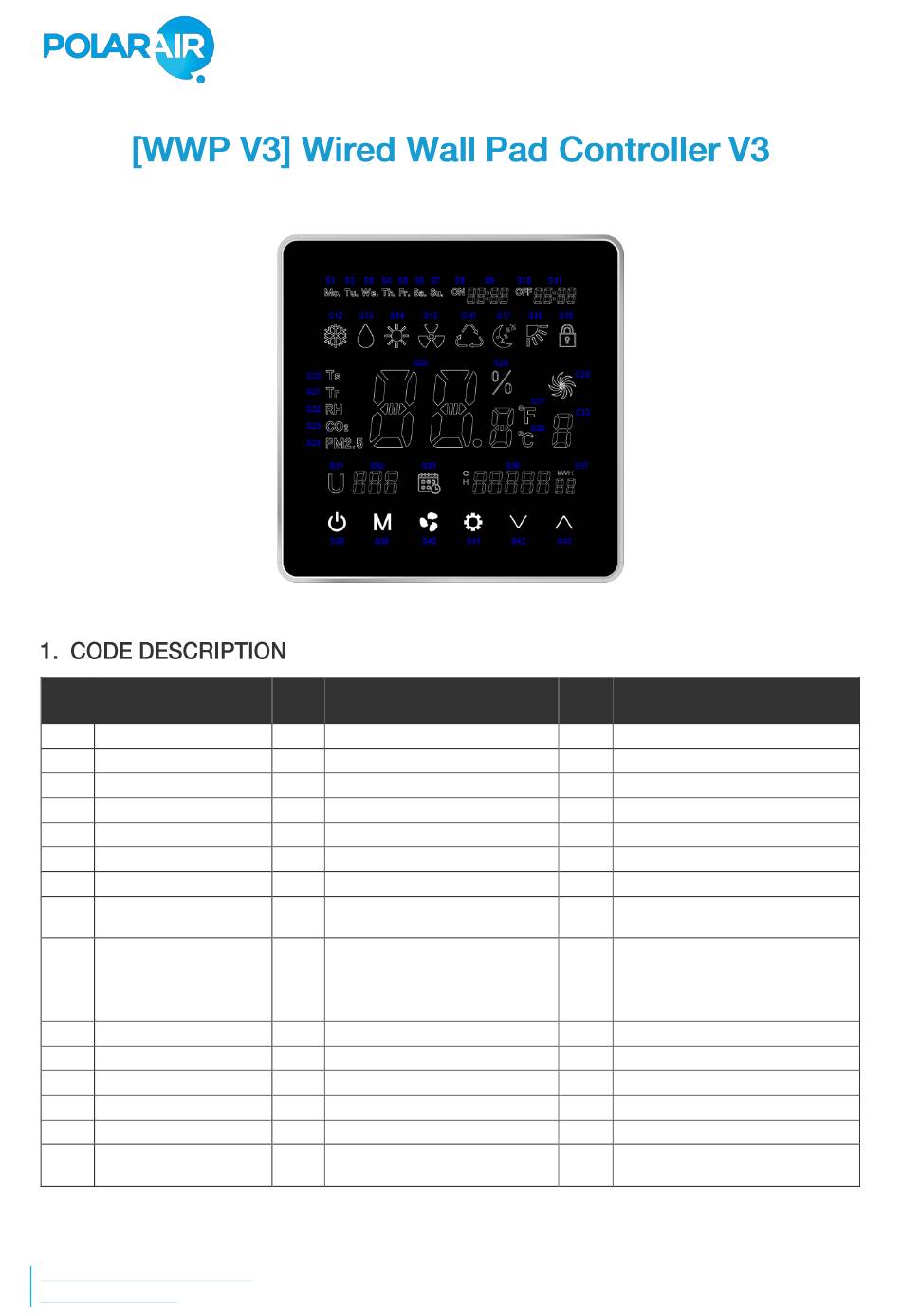

  • Page 1 WWP V3_2024.V1 Operation Guide Legend Legend Legend Monday Auto Mode Unit address Tuesday Sleep mode Unit No. / Error code Wednesday Swing mode Weekly timer Thursday LED lock C-cooling Friday Setting Temperature H-heating Saturday Room Temperature Energy consumption Sunday RH (sensor not included) Energy consumption cycle Timer-ON CO2 concentration (sensor...
  • Page 2 WWP V3_2024.V1 connect@polarglobalgroup.com www.polaraircs.com...
  • Page 3 WWP V3_2024.V1 1. Use screwdriver to remove the screw on the bottom 2. Connect the cable (0.7m – 27 9/16”) with the white connector directly to the wall pad. 3. Put the back plate of the wired wall pad back to the original position. 4.
  • Page 4 WWP V3_2024.V1 connect@polarglobalgroup.com www.polaraircs.com...
  • Page 5 WWP V3_2024.V1 [S38] – ON/OFF Button Press the button to turn on. Press it again to turn it off [S39] – MODE Button With the wall pad turned on, press to select sequentially: a) Cooling d) Ventilation or, b) Dehumidification e) Auto mode c) Heating [S40] –...

  • Page 6: Sleep Mode

    WWP V3_2024.V1 SCREEN LOCK FUNCTION 1) Press for 5 seconds, S19 appears, and screen is locked. 2) Press for 5 seconds again; S19 disappears, and the screen is unlocked. SWING FUNCTION 1) Press for 5 seconds, S18 appears, and the swing is ON. 2) Press for 5 seconds again;...

  • Page 7: Parameter Function

    WWP V3_2024.V1 PARAMETER FUNCTION is used to set unit type: 0=iAIR …………… Mode: Ventilation T, RH, CO2, PM2.5 are displayed “U001” 1=iFCU …………… Mode: S12, S13, S14, S15, S16, S21 or S20 is displayed 2=iAHU …………… Mode: S12, S13, S14, S15, S16, S21 or S20 is displayed 3=iAHU with air cleaner.
  • Page 8 WWP V3_2024.V1 PARAMETER FUNCTION is used to select Tr sensor. “U022” 0 = sensor in the WWP 1 = sensor in the PCB is used to display cooling and heating energy consumption: 0 = blank 1 = Energy Consumption parameters are shown: “U023”...
  • Page 9 WWP V3_2024.V1 Error Description Code Reason Solution Filter switch protection Filter Switch is open. Replace or clean filter. Only for units with EH. 1. Change fan speed to high. Electric Heater failure EH safety switch is 2. Replace the damaged EH safety opened.
