Summary of Contents for Mackworth STEADYTRACK

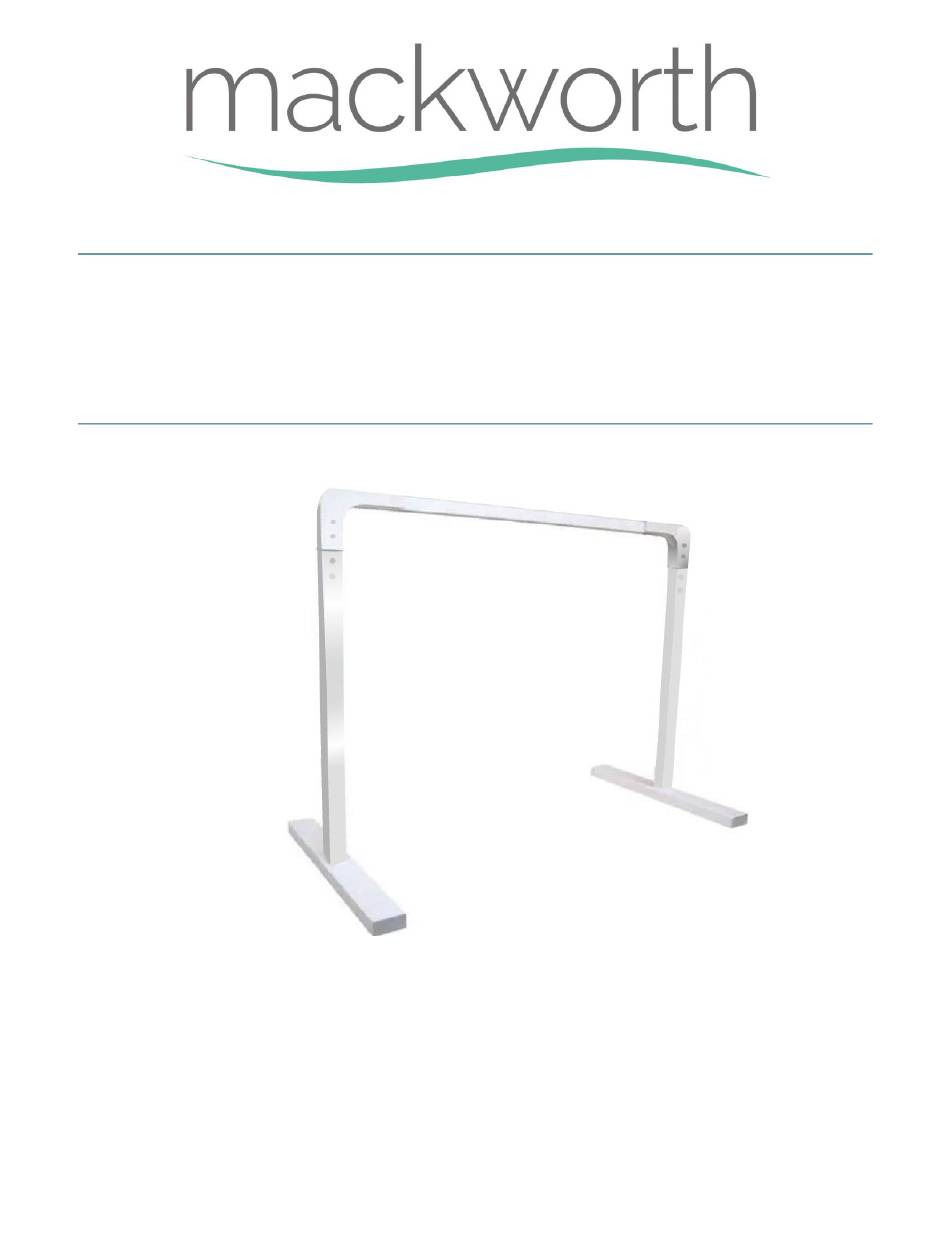

- Page 1 STEADYTRACK INSTALLATION MANUAL SteadyTrack Two Post Lift Stand System MACKWORTH USA Mackworthusa.com...
- Page 2 SteadyTrack Two Post Lift Stand System Installation Manual Table of Contents Page Introduction & Overview Components of the SteadyTrack Lift Stand System Systems Dimensions Cautions & Cleaning Instructions Assembly Instructions 6−8 Installation Checklist SteadyTrack Manual Mar ’25-Rev 1...
- Page 3 THE CONTENTS OF THIS MANUAL. Introduction Before using this equipment, and to ensure the safe operation of your SteadyTrack carefully read this entire manual, especially the section on "Cautions" (page 5). The SteadyTrack is designed to be used in conjunction with Mackworth ceiling and portable lifts.
- Page 4 Components of the SteadyTrack 2 Post Lift Stand System A) Connector Bracket B) Vertical Support Post with Base C) Track D) Track Clamping Plates E) Post Base Figure 1 Maximum Load: 600 lbs. [272 kgs] SteadyTrack Manual Mar ’25-Rev 1...
- Page 5 SteadyTrack System Dimensions Figure 2 * Depending on track length. Available track lengths are 95”, 144”, 198” and 264” Please Note: The 144” ,198” and 264” lengths are higher profile for added strength. SteadyTrack Manual Mar ’25-Rev 1...
- Page 6 Failure to adhere to this warning may result in serious injury to the operator, and/or the individual being lifted/ transferred. • The SteadyTrack is not a toy. Do not use it for unsafe practices. Do not allow children to play with the stand or any of its components.
- Page 7 Assembly of the SteadyTrack Caution: Before Installing the SteadyTrack all the components must be visually checked to ensure that there are no missing parts or unusual defects. Should anything look unusual contact your local dealer prior to use. Failure to comply with this caution could result in serious injury to the operator, the individual being lifted and/or damage to the SteadyTrack system or the lift unit.
- Page 8 Assembly of the SteadyTrack Step 1: Ensure the floor supporting the SteadyTrack system is level and structurally sound. Select the mounting height to be used. Step 2: a) Insert Vertical Support Post (B) into Connector Bracket (A) to the selected mounting height holes.
- Page 9 Figure 5 Step 4: Once the SteadyTrack system is installed, attach the ceiling lift appropriate weight for track and check for any defects in the setup. NOTE: Before you start operating, fill out the checklist after installation. See next page.
- Page 10 SteadyTrack Installation Check List SteadyTrack Manual Mar ’25-Rev 1...
