SCE -EXD12 Installation Manual

With cutout-details

Advertisement

Quick Links

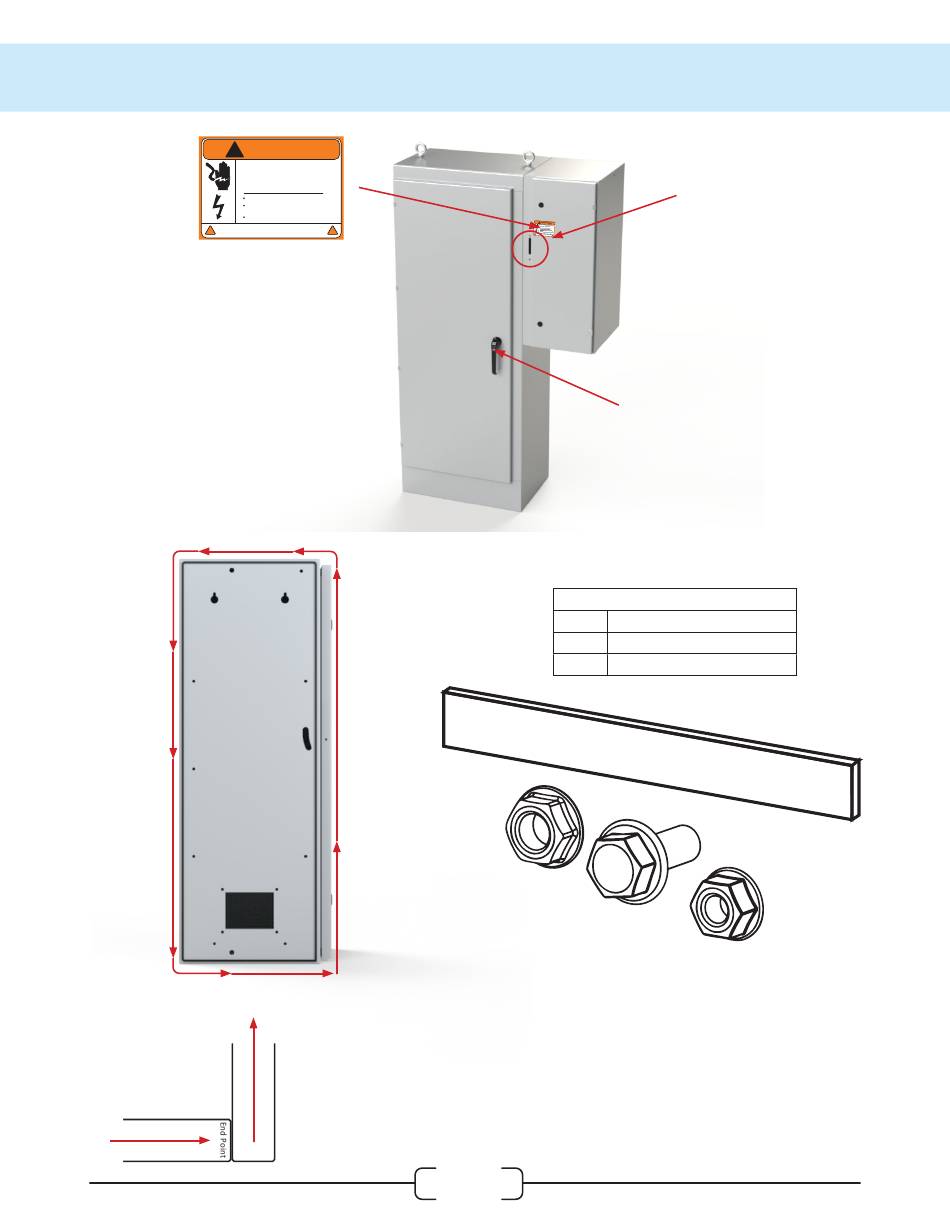

Installation Manual & Cutout-Details
!
WARNING
Electrical shock and flash hazards
Appropriate PPE required
Read and follow all instructions
Close and latch this door first
Close and fully latch all doors before power
is restored
Disconnect power before opening this door
!
CLOSE AND LATCH THIS DOOR FIRST
Install appropriate cautionary
marking or warning labels
Start Point
!
Gasket Installation:
Starting at the bottom of the external disconnect,
install the gasket (item 6) around the side of the
enclosure between the edge and the holes. Edge
the end of the gasket up to the start point to
ensure no water can travel through.
1
To maintain the environmental
rating of the enclosure install only
listed or recognized disconnect
appropriate environmental rating
Install according to disconnect
manufactures installation
instructions
The disconnecting means supplying
the enclosure is interlocked
mechanically to the enclosure door
Disconnect handle
not supplied by SCE
Use of a key or tool is
necessary for access
Shipped loose with enclosure
Part #
Description
118661
EXD mounting hardware bolt pack
117811
Strip Gasket
exd-drill-detail

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCE-EXD12 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCE SCE-EXD12

  • Page 1 The disconnecting means supplying the enclosure is interlocked Install appropriate cautionary mechanically to the enclosure door marking or warning labels Disconnect handle not supplied by SCE Use of a key or tool is necessary for access Shipped loose with enclosure Part # Description...
  • Page 2 Optional Cover Plates Identifier Description 128669 Cover Plate 133662 Cover Plate 10-32 Nuts Showing front of enclosure removing front Key components highlighted red Zoomed partial view Dotted lines represent connected pem/hole/nuts exd-drill-detail...
  • Page 3 2plcs if SCE-EXD enclosure is offset from the top the enclosure. The bracket and fasteners are not required if Detail A the SCE-EXD enclosure is flush with the Detail B Top View top the main enclosure. Do not use on SCE-N68XM & RX***...
  • Page 4 SCE-EXD12 12.00 3.00 6.00 3.00 1.61 1.08 3.00 Ø0.25 Through hole Ø0.25 x9 10.44 Mounting holes 14.19 27.73 7.44 2.25 7.44 18.06 4.50 9.19 2.28 1.75 3.25 5.50 3.25 exd-drill-detail...
  • Page 5 SCE-EXD18 Ø0.25 Through hole exd-drill-detail...
