Summary of Contents for Ingco UCDLI20668 Series

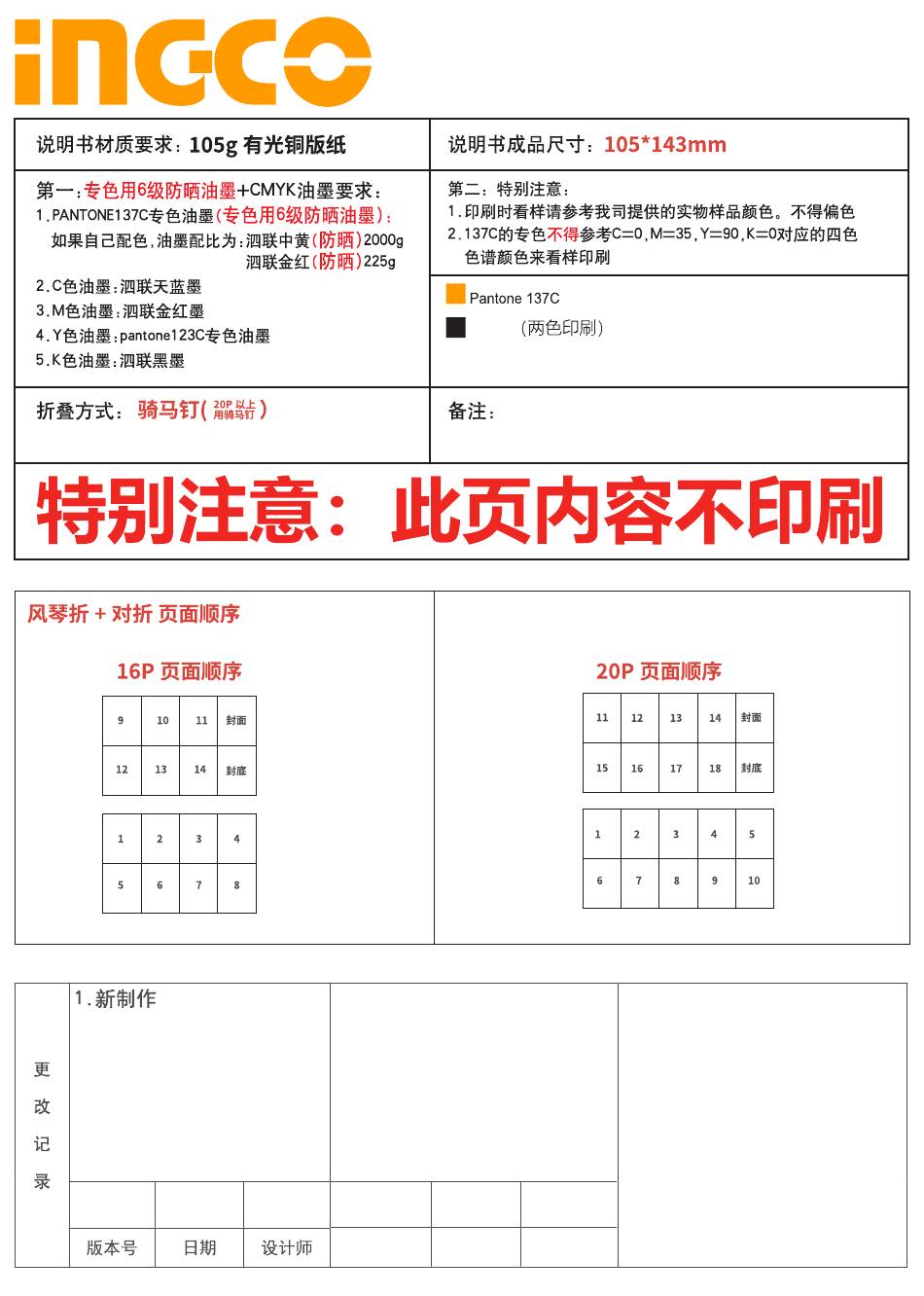

- Page 1 Black 1.换新电池包 0624.V01 2024.6.3 1124.V02 2024.11.13 版本号 日期 设计师...
- Page 2 COMPACT BRUSHLESS CORDLESS DRILL CDLI20668 CDLI20668xy CDLI2066xy UCDLI20668 UCDLI20668xy UCDLI2066xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 3: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 4 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 5 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 6 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 7 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION! Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 8 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 9 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).
- Page 10 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 11 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 12: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Cordless drill safety warnings Safety instructions for all operations Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live"... -
Page 13: Intended Use
| English INTENDED USE The drill is designed for drilling and screwdriving applications. SPECIFICATIONS Components 1. Reversing switch lever 5. Chuck 2. Brushless motor 6. Adjusting torque ring 3. Switch 7. Speed change lever 4. Lamp... -
Page 14: Technical Specifications
| English Technical specifications CDLI20668 UCDLI20668 Model No. CDLI20668xy UCDLI20668xy CDLI2066xy UCDLI2066xy Voltage Mechanical speed settings No-load variable speed 0-500/0-2000/min 0-500/0-2000/min Torque settings 22+1 22+1 Max torque force 66Nm 66Nm Keyless chuck capacity 13mm 1/2˝ Model No. NOTE: x (blank, 1,2,3,4,5,6,7,8,9,E,S,A,M); y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M) •... - Page 15 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity FBLI2001 2.0Ah FBLI2001xy FBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah FBLI2002xy FBLI2003 5.0Ah FBLI2003xy Model No.
- Page 16 | English OPERATION PICTURE...
- Page 17 | English OPERATION PICTURE...
-
Page 18: Function Description
| English FUNCTION DESCRIPTION ⚠ CAUTION! Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool Electrical safety Installing or removing battery cartridge (see Figure A) Figure A: 1. Button 2. - Page 19 | English Indicator lamps Remaining capacity Lighted • >80% • 30% to 80% • <30% NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. Switch action (see Figure C) Figure C: 1.
- Page 20 | English CAUTION! ⚠ Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. Reversing switch action (see Figure E) Figure E: 1. Reversing switch lever CAUTION! ⚠...
-
Page 21: Operation
| English Selecting the action mode (see Figure G) Figure G: 1. Adjusting ring 2. Graduation 3. Arrow The fastening torque can be adjusted by step by steps by turning the adjusting ring. Align the graduations with the arrow on the tool body. You can get the minimum fastening torque at 1 and maximum torque at marking . - Page 22 | English triggers soon as the clutch cuts in. NOTE: When driving wood screw, pre-drill a pilot hole 2/3 the diameter of the screw. It makes driving easier and prevents splitting of the workpiece. Drilling operation First, turn the adjusting ring so that the pointer points to the marking. Then proceed as follows.
- Page 23 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 25 MADE IN CHINA 1124.V02 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
