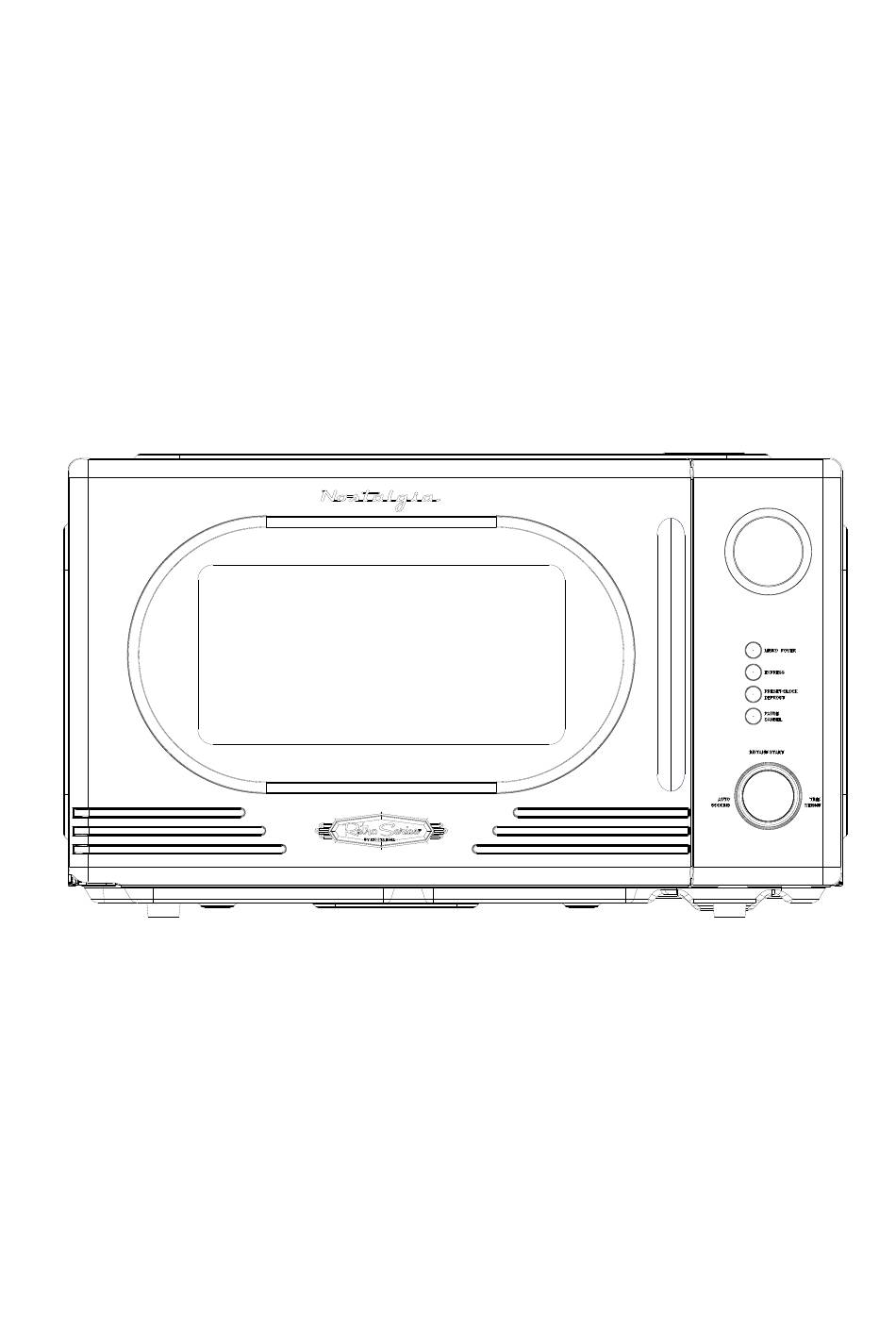

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL E30UXP29-A00 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Household use only...
-
Page 2: Important Safeguards
SAVE THESE INSTRUCTIONS .IMPORTANT SAFEGUARDS …………。。…………………… When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. - Page 3 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- Page 4 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. The following basic precautions should always be followed when using electrical appliance: 1.
- Page 5 has ended. d. The cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of 1iquids. e. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
- Page 6 infirm persons without supervision. 16. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 17. Any accessories not recommended by the manufacturer may cause injuries to persons. 18.
-
Page 7: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
removed. 31. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. -
Page 8: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy
important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. -
Page 9: Grounding Instructions
emission, replace only with 1) Primary Switch : Type Nos. 2) Secondary Switch : Type Nos. 3) Monitor Switch : Type Nos. 4) Fuses : UL listed or recognized type fuse rated (N) A. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. - Page 10 .INSTALLATION… ……………………………………………… …..…… 1. Take out all the packing. If there is a safe film over the oven, tear it off before Use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer’s service center. 2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
-
Page 11: Microwave Oven Care
MICROWAVE OVEN CARE The oven should be cleaned regularly and any food deposits removed. 1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. -
Page 12: Product Instruction
Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls: Wipe clean the interior surfaces with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed Turntable / Rotation ring / Rotation axis: Wash with mild soap water... - Page 13 1) Door lock Microwave oven door must be properly closed in order for it to operate. 2) Viewing window Allow user to see the cooking status 3) Rotating ring The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating 4) Rotating axis The glass turntable sits on the axis;...
-
Page 14: Operation Of Control Panel
- Fit the turntable onto the rotating axis and make sure that it is geared in properly 6) Control panel See below in details (the control panel is subject to change without prior notice) 7) Waveguide cover It is inside the air fryer oven, next to the wall of control panel. Never remove the waveguide cover. -
Page 15: Before Cooking
1. BEFORE COOKING The display lights up when plugged in power supply, then enter... -
Page 16: Microwave Function
the standby state and display shows 1:00. 2. MICROWAVE FUNCTION There are five microwave power levels, 100P, 80P, 50P, 30P and 10P, respectively. Press the “Micro.” button continuously to select the desired microwave power. Turn the knob to select cooking time, and the time range that can be regulated is from 0:10 to 60:00. - Page 17 f. If you intend to remove the food before the preset time, you must press Stop/Lock button once to clear the preset procedure to avoid unintended operation of next time use. 3. DEFROST/CLOCK 3.1 DEFROST There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time.
- Page 18 considered completed. d. Microwave penetrates around 4cm into most food e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again. 3.2 CLOCK (12-hour clock) In standby mode, press and hold down the “DEFROST/CLOCK” button for more than 3 seconds to enter the clock setting interface.
- Page 19 Pizza The optional weights are 7oz and 14oz. Frozen The optional weights are 7oz, 14oz and 21oz. vegetable Fresh The optional weights are 7oz, 14oz and 21oz. vegetable The optional weights are 1 cup, 2 cups or 3 Beverage cups, each one about 9oz. Meat The optional weights are 7oz, 14oz and 21oz.
-
Page 20: Child Lock Function
press “START/+30s” button to increase time, press one time to increase 30 seconds, but the menu mode and weight defrosting mode cannot adjust time. In paused state, can press “START/+30s” button to continue the microwave oven before cooking mode. 7. EXPRESS In standby mode, after the food is put in and the door is closed, press the "START/+30s"... -
Page 21: Utensils Guideline
mode of the microwave. The second step is to open the oven door. When not in operating condition or after 30 minutes of work, the oven door can be opened directly. 9.2 Setting of two-step door opening function In the standby mode of the microwave, press and hold down the STOP+START+MICROWAVE buttons in order, and do not loosen them to turn on/off this function, and the corresponding display will be "ON"... -
Page 22: Cooking Tips
Can not be used for long Heat-resistant plastic Yes time microwave cooking Heat-resistant glass Grill rack It should not be used when cooking meat or Plastic film chops over-temperature may do damage to the film …… … COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. -
Page 23: Maintenance & Servicing
Color and hardness of food help to determine if it is done, these include: - Steam coming out from all parts of food, not just the edge - Joints of poultry can be moved easily - Pork or poultry shows no signs of blood - Fish is opaque and can be sliced easily with a fork Browning dish When using a browning dish or self-heating container, always... -
Page 24: Microwave Radiation
check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED. SERVICING SAFEGUARDS MICROWAVE RADIATION！ It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. - Page 25 Improper fitting of magnetron; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damaged. 1. If LED displays Err0 during working, it indicates that sensor has been short circuit and you need replace it at the nearest repaired department.
- Page 26 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
