Delta Children Jeep MILESTONE 23411 Instruction Manual

Delta Children Jeep MILESTONE 23411 Instruction Manual

6-in-1 high chair
Hide thumbs

Advertisement

Table of Contents

by
23411
WARNING:
CHOKING HAZARD
Adult assembly required because of
small parts. Keep assembly parts out
of reach of children under 3 years.
Read all instructions BEFORE assembly and USE of product
Customer Experience Center
email: gcs@DeltaChildren.com
INSTRUCTION MANUAL
KEEP INSTRUCTIONS FOR FUTURE USE.
www.DeltaChildren.com
MILESTONE
6-in-1 HIGH CHAIR
ADULT ASSEMBLY REQUIRED
STYLES AND COLORS MAY VARY
DCP-IM-01172024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jeep MILESTONE 23411 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Children Jeep MILESTONE 23411

Summary of Contents for Delta Children Jeep MILESTONE 23411

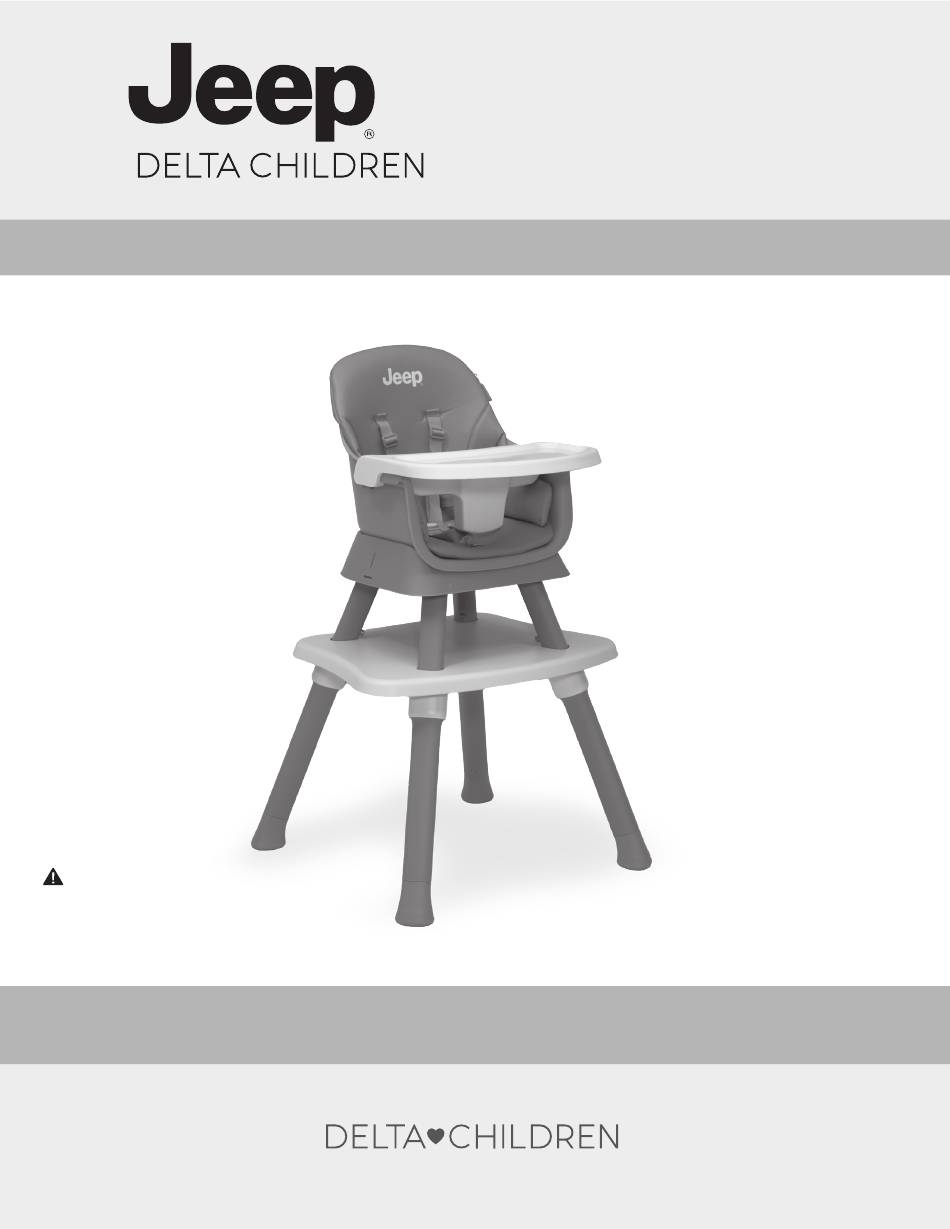

  • Page 1 MILESTONE 6-in-1 HIGH CHAIR INSTRUCTION MANUAL 23411 ADULT ASSEMBLY REQUIRED STYLES AND COLORS MAY VARY WARNING: CHOKING HAZARD Adult assembly required because of small parts. Keep assembly parts out of reach of children under 3 years. Read all instructions BEFORE assembly and USE of product KEEP INSTRUCTIONS FOR FUTURE USE.
  • Page 2 Before returning this product to the store! Let’s see if we can assist you! • Not sure how to assemble our product? Visit our site for easy to follow instructions along with some Tricks and Tips assembly videos https://www.deltachildren.com/pages/instructions • If you are missing a piece or have a damaged part Please contact our Consumer Experience Center for assistance at gcs@DeltaChildren.com.

  • Page 3: Limited Manufacturer Warranty

    LIMITED MANUFACTURER WARRANTY This Delta product is warranted to be free from defects for a period of 90 days from the date of purchase under normal use. This warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.
  • Page 4 WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF HIGH CHAIR. KEEP INSTRUCTIONS FOR FUTURE USE. INCORRECT ASSEMBLY MAY MAKE THE HIGH CHAIR UNSAFE. FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Not for use with children over 35” (89cm) tall. •...
  • Page 5 WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF HIGH CHAIR. KEEP INSTRUCTIONS FOR FUTURE USE. INCORRECT ASSEMBLY MAY MAKE THE HIGH CHAIR UNSAFE. FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING Children have suffered head injuries, including skull fractures, after falling with or from booster seats.
  • Page 6 Parts IMPORTANT! Please remove all parts from the package and identify them before assembly. Booster Feet (short) x4 - Part# 51180 Seat - Part# 51182 Seat Pad - Part# 51184 Harness - Part# 51185 Table Top - Part# 51179 Removable Tray - Part# 51183 Booster Base - Part# 51181 Table Feet x4 - Part# 51178 Booster Straps (x2) - Part# 51191...
  • Page 7 6-in-1 High Chair modes: 3 - On the Floor Booster 4 - Activity Table 1 - High Chair 5 - Stool 2 - Table and Chair Set 6 - Booster Customer Service www.DeltaChildren.com gcs@DeltaChildren.com...
  • Page 8 ASSEMBLY CHAIR/STOOL LEGS INSTALLATION • Attach the Chair Legs (Short) to the four leg attachment points on the underside of the chair base/stool. NOTE: The leg holes and the buttons on the leg attachment point should be aligned. The buttons on the leg attachment point should be visible when properly installed.
  • Page 9 ASSEMBLY TRAY INSTALLATION • Press and hold the tray button on both sides of the tray, align the slots on both sides of the tray with the slide of the seat mat. • After entering the slide, release the buttons on both sides of the tray and push the tray hard to hear a clicking sound to indicate that the tray is in place.
  • Page 10 USAGE - HIGH CHAIR MODE HIGH CHAIR MODE ASSEMBLY • Align the four legs of the chair to the four Table Top pads respectively. • Press down on the chair. A “CLICK” can be heard when each leg is installed properly. NOTE: After installation, pull the four legs of the chair up with your hands to make sure the legs are locked in place.
  • Page 11 Using Booster Seat When using booster mode, chair back MUST be 10 inches Minimum height of chair back: (25.4cm) tall or higher. 10”(25.4cm) On under side of chair base, push in button holding in leg to release. Repeat on the remaining 3 legs. Leg lock release button.
  • Page 12 Using the Booster • Take the end of one of the booster straps and insert into the vertical slots in the booster base as shown. Repeat on other side with opposite end of the same booster strap. This strap goes around the chair back. •...
  • Page 13 Using the Booster Rear view of correctly attached Rear Booster strap Ready to go! Bottom view of correctly attached lower Booster Strap Customer Service www.DeltaChildren.com gcs@DeltaChildren.com...

  • Page 14: Securing Child

    Securing Child Strap adjustment 7. SAFETY BUCKLE: 7.1 Closing the buckle: combine insert 1 and insert 2 into 4 and 5 states, and insert 4 and 5 into 3 after completion,then the buckle operation can be completed. 7.2 Opening the buckle: Press the middle button of the safety buckle to release the safety buckle. 7.3 Adjustment of safety strap: hold one end of the safety strap and slide the buckle up and down to adjust the length of the strap.

  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE • Ensure all locking devices work correclty and regularly check the locks and fittings for security. • Regularly check all parts for wear and tear. • For best results tray can be hand washed using a damp cloth and mild detergent. •...
  • Page 16 Delta Children's Products Corp. 114 West 26 Street New York, NY 10001 gcs@DeltaChildren.com www.DeltaChildren.com © 2023 Delta Children's Products. All rights reserved.
