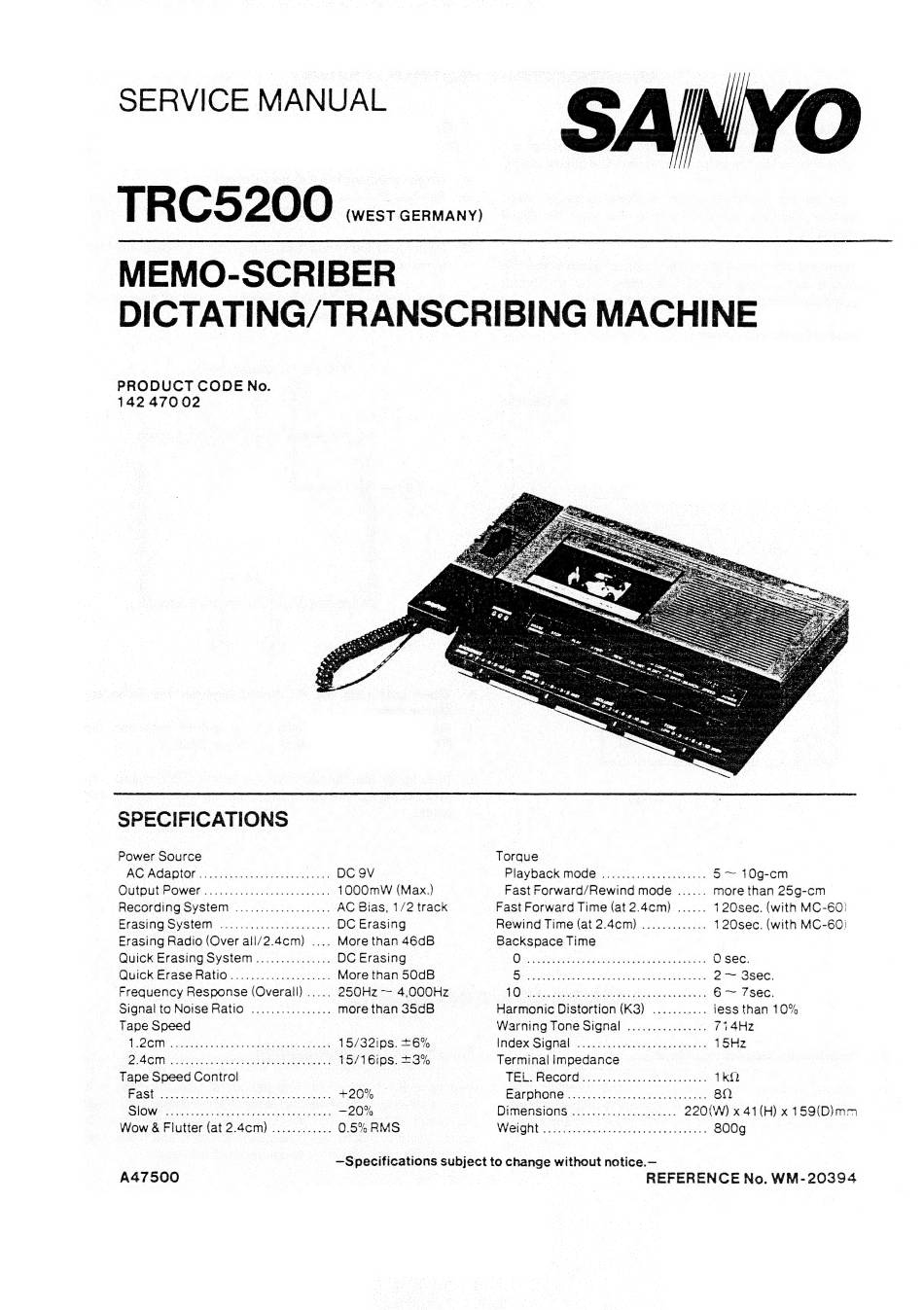

Sanyo TRC5200 Service Manual

SERVICE MANUAL
TRC5200 (WEST GERMANY)
MEMO-SCRIBER
DICTATING/TRANSCRIBING MACHINE
A47500
PRODUCT CODE No.
142 47002
SPECIFICATIONS
Power Source Torque
AG Adaptor... ci... csi vee. .... DOQV Playback mode ..................... 5 ~ 10g-cm
OutoutPower....0. 2. les 1000mW (Max.) Fast Forward/Rewind mode ...... more than 25g-cm
Recording System ................... AC Bias, 1/2 track Fast Forward Time (at 2.4cm) ...... 1 20sec. (with MC-60)
Erasing System. o.:..000.2. ee DC Erasing Rewind Time (at 2.4cm) ............. 1 20sec. (with MC-60)
Erasing Radio (Over all/2.4cm) .... More than 46dB Backspace Time
Quick Erasing System ............... DC Erasing 2 ORE ae Ree One ace are a O sec.
Quick Erase Ratio...:. 62s More than 50dB des inne a sate anes 2—~ 3sec
Frequency Response (Overall) ..... 250Hz ~ 4,000Hz RO oie Poe a 6 ~ 7sec.
Signal to Noise Ratio ................ more than 35dB Harmonic Distortion (K3) ........... less than 10%
Tape Speed Warning Tone Signal ................ 71 4Hz
P2CM 2:5. Siti eee '1 8/32ips: =6% index Signaler... ae 1SHZ
BAC 15/16ips. £3% Terminal Impedance :
Tape Speed Control TEL Record ies a: TkO
Past +20% PATONONG 20 ie hs hea 8 |
DIOW ee —20% DIMENSIONS 2. ie 220(W) x 41(H) x 159(D) mm
Wow & Flutter (at 2.4cm) ............ 0.5% RMS WEIGN 700. ee ee 800g
—Specifications subject to change without notice.—
REFERENCE No. WM-20394
