FED ORSENSFED User Manual

ENGLISH - USER MANUAL
FED Dumbbell Sensor Module - ORSENSFED
1. Characteristics
1.1 Technical specifications
Sensor: Six-axis gyroscope
Battery: 1 x CR2032 lithium battery
Connection: Wireless V4.2
Dimensions: Ø3.6x3 cm
Weight: 21.9 g
Material: ABS
Color: Black
1.2 In the box
1 x Dumbbell Sensor Module
1 x Module Base
1 x CR2032 Battery
4 x Cover Stickers
1 x User manual

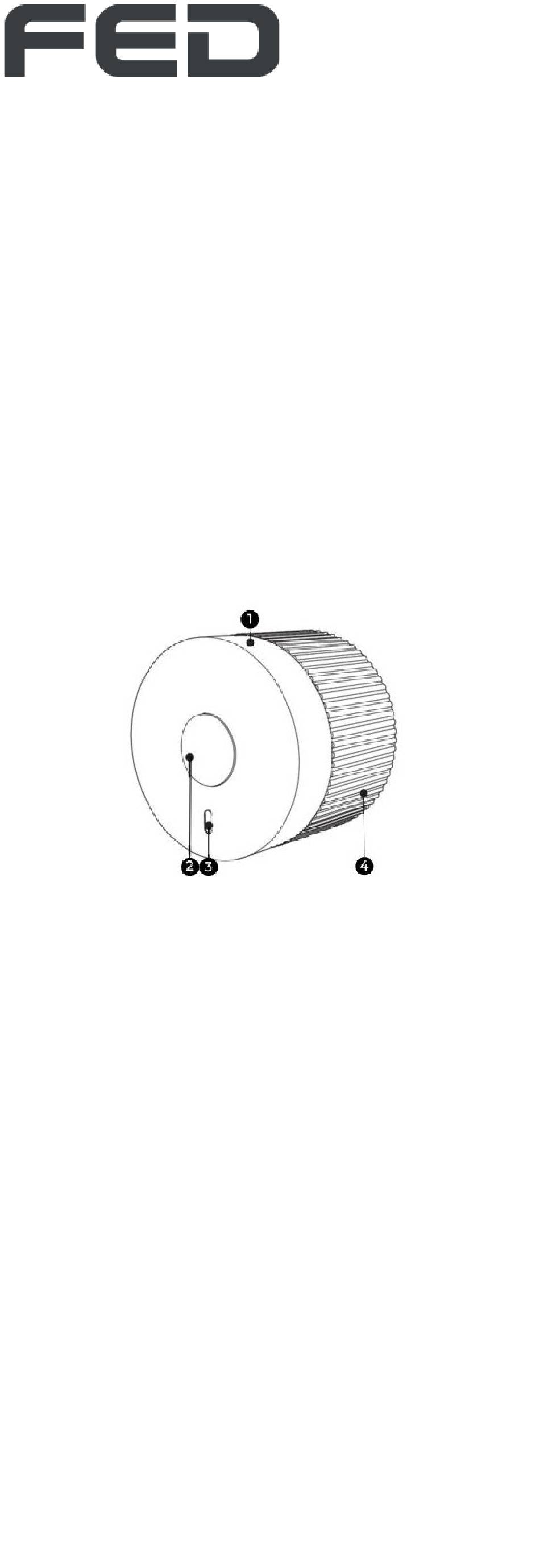

1.3 Diagram
1. Sensor module
2. Power button
1.4 Indicator LED Description
1. The indicator LED remains on after powering on and will
automatically turn off after 10 seconds.
2. When the device is powered on, pressing the power button
will cause the indicator light to turn on. The light reflects the
connection status, confirming that the device is powered on.
3. If there is no activity for 25 minutes, the device will
automatically power off.
4. To power off, press and hold the power button for 3
seconds. The indicator light will flash rapidly for 2 seconds
before turning off.
5. Wireless Connection Status:
a. If the Wireless is connected, the indicator light stays on
for 10 seconds before turning off. Pressing the power button
will cause the indicator light to illuminate again for 10
seconds, confirming the device is on and connected.
b. If the Wireless is not connected during startup, the
indicator light will flash slowly for 10 seconds before turning
off. Pressing the power button will make it flash slowly again
for 10 seconds, indicating that Wireless is not connected.
3. Indicator light
4. Module base
