ATTE ETH-2wire-A-SET2 Instruction Manual

ETH-2wire-A-SET2
Set of active converters for Ethernet and PoE transmission
over 2-wires 10/100Mbps range up to 800m
ETH-2wire-A-SET2 is a set of active converters for the transmission of Ethernet data and PoE
power using 2 wires, e.g. one pair of twisted-pair UTP cable. The devices allow the installation of
cameras or other IP PoE devices in places where the replacement of the existing cabling is impossible
or uneconomical. The ETH-2wire-A-TX module is powered from any PoE switch (RJ45 port) and then,
via 2 wires, enables bidirectional network communication and power supply to the ETH-2wire-A-RX2
module. The maximum cable length in the 2wire path is 800m. A camera or other PoE receiver can
be connected to the RJ45 port of the ETH-2wire-A-RX2 module at the end of the line.
ETH-2wire-A-RX2 module has a round design for easy installation in electrical flush-mounted
boxes.
ul. 3 Maja 5, 32-400 Myślenice, tel: +48 12 378 94 02, e-mail: support@atte.pl
INSTRUCTION MANUAL

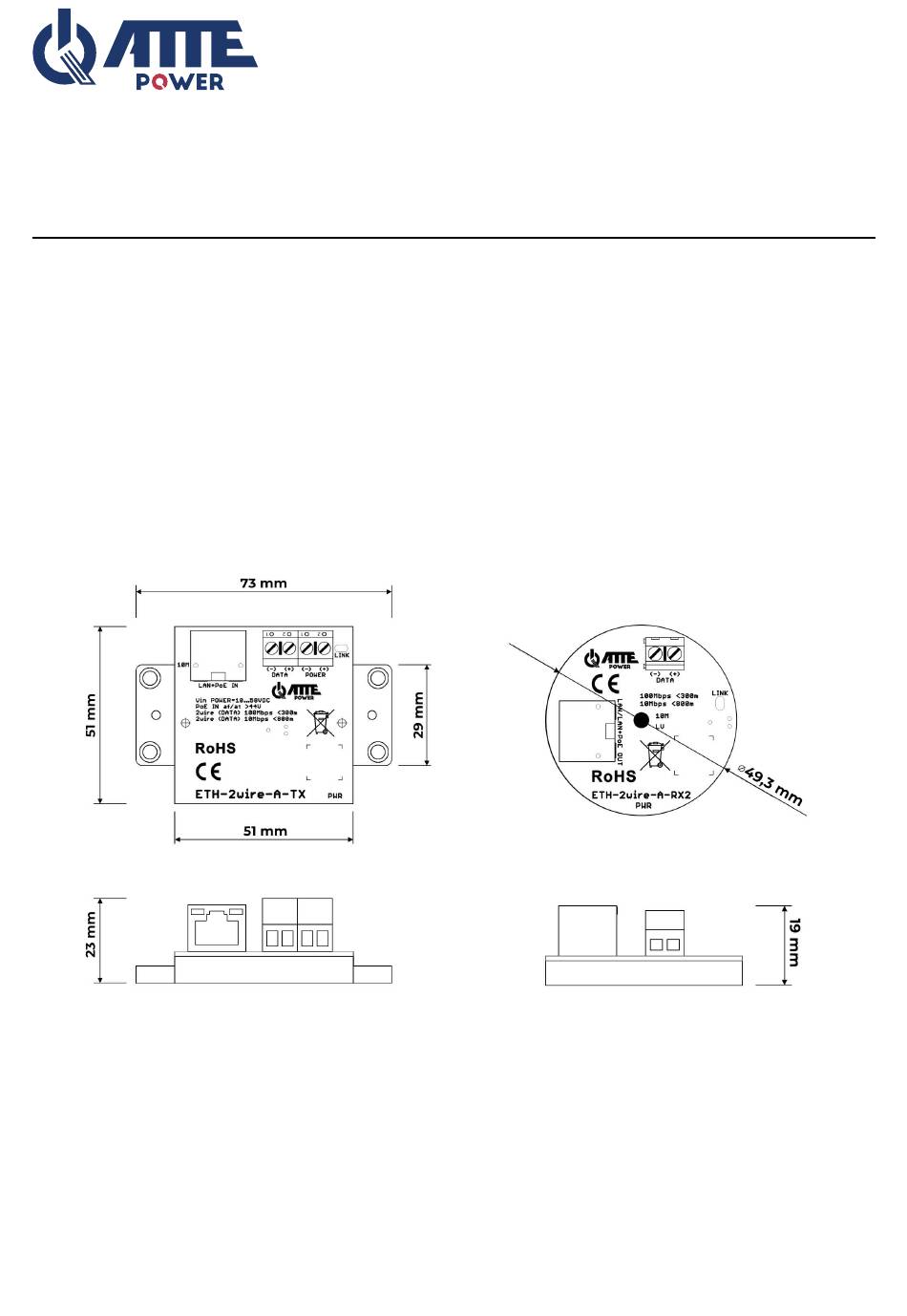

General view of the device
