- Page 1 BLT310T Product Manual Laser Cutting Head BLT 310T- QBH/EOC Brilliant Optical Cutting Instrument...
-
Page 2: Document History
BOCI is constantly updating/upgrading products, so our company reserves the right to modify the product models and descriptions in this manual without prior declaration. -
Page 3: Table Of Contents
BLT310T Product Manual Table of Contents 1. Product Description ....................1 1.1 Product View ................................1 1.2 Technical Parameters ..............................2 1.3 Meaning of LED indicator ............................. 3 2. Gas interface ....................... 4 3. Electrical Interface ......................5 3.1 Bus system ................................6 3.2 Non-bus systems .............................. -
Page 4: Product Description

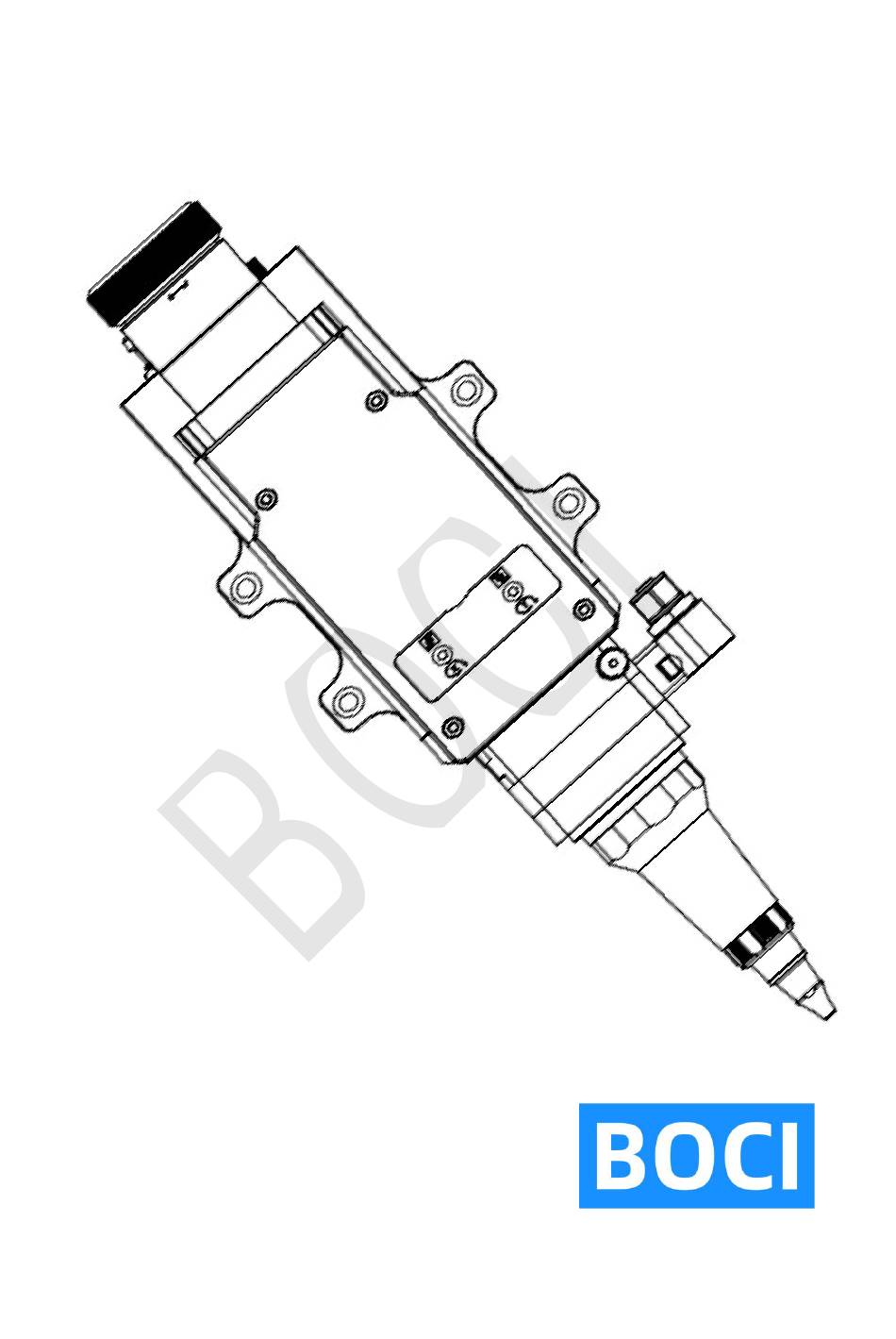

BLT310T Product Manual 1.Product Description 1.1 Product View Product View (Structure and Interface Description) 1. Optical fiber interface; 7. Working indicator; 2. 1 Upper protective lens; 8. Cutting gas interface; 3. Collimation unit; 9. Anti-collision screw; 4. Focusing unit; 10. Ceramic body lock ring;... -
Page 5: Technical Parameters
BLT310T Product Manual 1.2 Technical Parameters Cutting Head BLT310T Laser Wavelength: 1030-1090nm Laser Power: ≤4kW Fiber Interface: QBH, EOC Spot Magnification: M=2.0/2.5 Max Focus Adjustment Range: ±50mm Max.0.13 at Fc100 Centering Adjustment Range: ±1.5mm Focus Acceleration: 7.5m/s² Cutting Gas Interface: ø10, maximum 25bar (2.5Mpa) -
Page 6: Meaning Of Led Indicator
BLT310T Product Manual 1.3 Meaning of LED indicator Icon State Meaning green Power is normal. Under-voltage alarm: insufficient electrical power. No power supply: There is no power supply, the connection cable is broken, and the bright interface is loose. Icon... -
Page 7: Gas Interface
BLT310T Product Manual 2.Gas interface Cutting Gas Interface Installation Connection: Cutting gas 1 Notice: The maximum pressure of cutting gas is 25bar (2.5Mpa). The cutting gas quality shall meet the requirements of gas quality in accordance with ISO ... -
Page 8: Electrical Interface
BLT310T Product Manual 3.Electrical Interface PWE and aviation plug interface waterproof precautions: PWE interface and air plug interface are equipped with dust plugs from the factory. If the dust plug does not fall off, the protection level of IP64 can be achieved; at the same time, when the PWE cable and the air plug cable are well connected, IP64 can also be achieved;... -
Page 9: Bus System
BLT310T Product Manual 3.1 Bus system BCS210E Power supply 220V AC BLT310T cutting head installation wiring diagram Slave Station Hypcut HyPanel master station Notice: The above wiring operations should only be performed by trained and professional personnel. When the cutting head is connected to the BCS210E, the BCS210E must ... -
Page 10: Non-Bus Systems
BLT310T Product Manual 3.2 Non-bus systems BCL4500A BLT310T Cutting Head Installation Power Wiring Diagram 24VDC Cypcut Slaves Station master station Notice: The above wiring operations should only be performed by trained and professional personnel. When the cutting head is connected to the BCL4500A, the BCL4500A must be powered off. -
Page 11: Cutting Head Installation
BLT310T Product Manual 4.Cutting head installation During the installation of the cutting head, dust or dirt may accidentally enter the cutting head, contaminate the optical lens, and affect its normal functions. To prevent dust or dirt from entering the cutting head, please refer to the following methods for the installation of the cutting head: 4.1 Preparation before operation... -
Page 12: Specific Operation Process
BLT310T Product Manual 4.2 Specific operation process 4.2.1 Preparation of clean bench Prepare the clean bench, start it up and ensure its functionality: Clean table type: vertical purification; cleanliness class: ISO 5, 100; average wind speed ≥ 0.4m/s Check that the equipment is clean and qualified (checks the cleanliness of the dust particle counter ), and confirm that the FFU purification unit is within the validity period (measure the average wind speed in the working area, when the wind speed cannot reach 0.3m/s, the FFU purification unit must be replaced);... -
Page 13: Clean And Wipe The Fiber Interface Of The Cutting Head
BLT310T Product Manual 4.2.3 Clean and wipe the fiber interface of the cutting head Wipe the fiber interface of the cutting head with a clean cloth and anhydrous ethanol. 4.2.4 Check the laser fiber end face Remove the protective cap of the laser fiber, and irradiate the end face of the fiber with a strong flashlight to observe whether there is any pollution;... -
Page 14: Insert The Laser Fiber Interface Into The Cutting Head
BLT310T Product Manual 4.2.6 Insert the laser fiber interface into the cutting head Align the fiber optic plug with the red dot, insert it into the unlocked fiber optic port, and ensure that it is inserted as far as it will go. Rotate the lock cap until it tightly locked. -
Page 15: Mount The Cutting Head On The Backplane
BLT310T Product Manual 4.2.8 Mount the cutting head on the backplane The cutting head can be installed on the Z-axis backplane of the machine tool through four screws A, B, C, and D. When fixing the cutting head on the machine, it must be ensured that the cutting head is locked and there is no obvious movement. -
Page 16: Beam Centering
BLT310T Product Manual 4.2.10 Beam centering Adjust the XY centering knob to make the focal point in the center of the nozzle by low-power dotting. The conditioned laser beam must be in the center of the adjustment nozzle. screw Relative position of laser beam... -
Page 17: Appendix A - Care/Maintenance
BLT310T Product Manual Appendix A - Care/Maintenance A.1 Schematic diagram of product structure Notice: During the maintenance of cutting head accessories, dust or dirt may accidentally enter the cutting head and damage the product. Please pay attention to keep it clean during maintenance and replacement of accessories;... -
Page 18: Replace The Upper Protective Lens
BLT310T Product Manual A.2 Replace the upper protective lens 1st Upper protective lens base 1st Upper Protective Lens Drawer Door Loosen the screws; Pull out the upper protective mirror drawer; Use mask tape to prevent dust from entering; Remove the pressure ring on the protective lens;... -
Page 19: Replace The Lower Protective Lens
BLT310T Product Manual A.3 Replace the lower protective lens Loosen the screws of the drawer door; Pull out the lower protective mirror drawer; Close the protective door of the lower protective mirror drawer to prevent dust from entering; Remove the pressure ring on the protective lens;... -
Page 20: Appendix B - Mechanical Dimensions
BLT310T Product Manual Appendix B - Mechanical Dimensions B.1 Cutting head installation size BLT310T-QBH-200... - Page 21 BLT310T Product Manual BLT310T-QBH-250...
- Page 22 BLT310T Product Manual BLT310T-EOC-200...
- Page 23 BLT310T Product Manual BLT310T-EOC-250...
