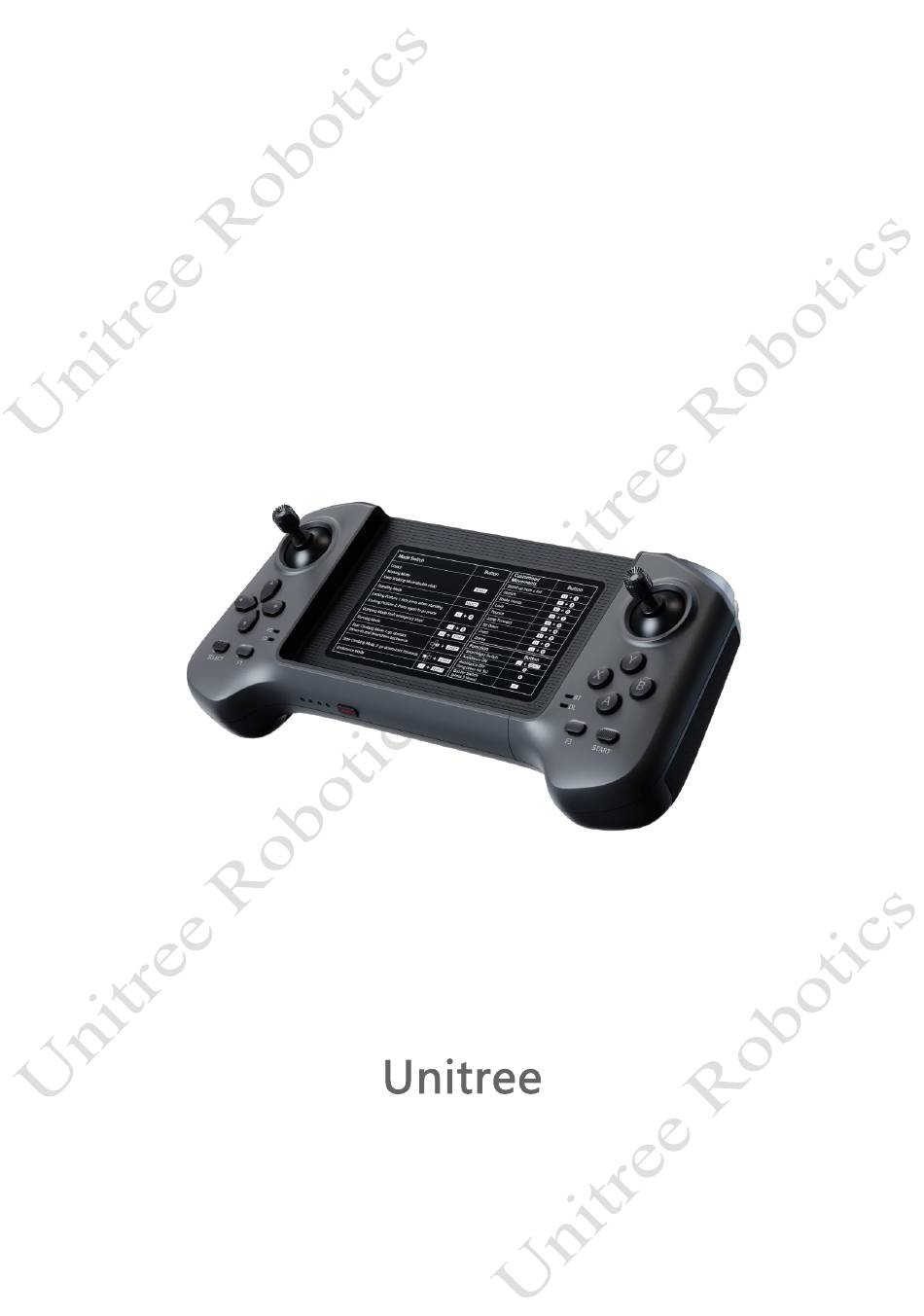

R3-1 Remote Control
User Manual V1.0
This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the
robot in a hazardous manner.
Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Unitree R3-1
Summary of Contents for Unitree R3-1
- Page 1 This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner. Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.

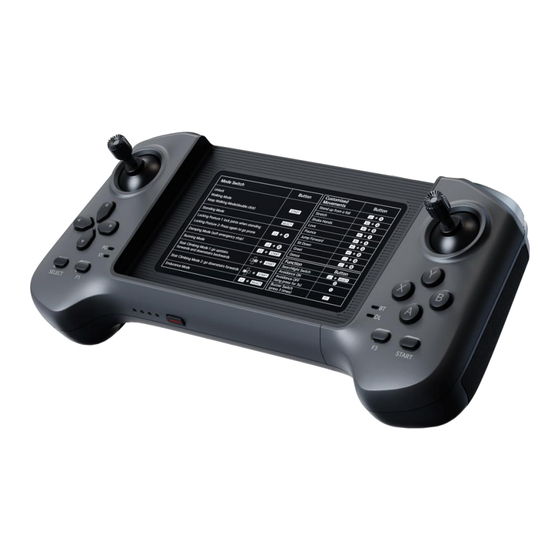

- Page 2 (straight line, circle, line, rectangle), up and down slopes/steps, dancing, and other actions on flat ground. The R3-1 remote control has a unique design and adopts an ergonomic two-hand grip structure to ensure comfort during prolonged use and greatly enhance the convenience of control.
-
Page 3: Parts Name
[9] SELECT [10] Charging Status Indicator [11] Power Connect Indicator [12] Power Button [13] Data Transmission Indicator Light [14] START [15] F3 (Function Setting Key) [16] Right Key [17] Bluetooth Signal Indicator Light All rights reserved, Unitree Robotics © 2024... -
Page 4: Technical Specifications
R3-1 Remote Control User Manual Technical Specifications Parameter Specification Remarks Charging Voltage 5.0V Charging Current 700mA Lithium Battery Capacity 780mAh Communication Mode Data Transmission Module, Bluetooth Running Time Remote Control Distance Above 100m Open Environment Install the joystick Please follow the steps below to install the joystick: Step 1: Take out the joystick. -
Page 5: Joystick Calibration
Switching vibration: Quickly press the F3 button 3 times to switch to vibration mode. Switch sound: Quickly press the F3 button 3 times to switch to sound mode. Press F3 button 3 times quickly All rights reserved, Unitree Robotics © 2024... -
Page 6: Remote Control Charging
R3-1 Remote Control User Manual Remote Control Charging When the remote control battery indicator shows low power, the remote control should be connected to the charger, as shown in the figure below: AC Power USB Charger 100-240V USB-Type C Cable 1) We recommend you to use a 5V/1A USB charger which meets FCC/CE standard. - Page 7 FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
