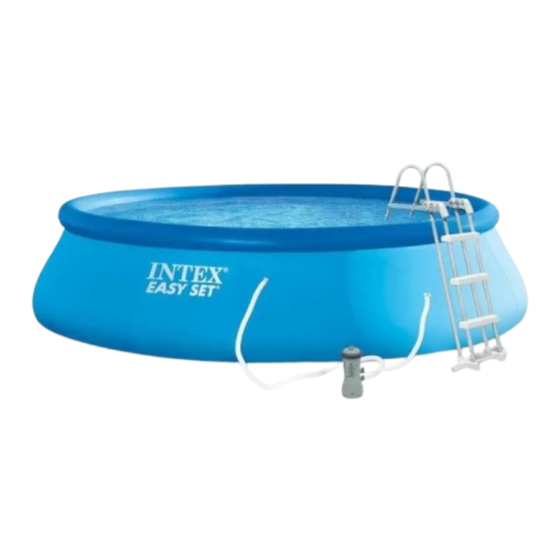

126166GN - Easy Set Pools Ø 457 x 107 cm

Overview Pool Size vs Pump Running Time

Service Center

Repair Kit

Air Valve For Water Revitalization Set

Setup Video

Ladder

Above Ground Pool

Cartridge Filter Unit

Chapters

Troubleshooting

Need help?

Do you have a question about the 126166GN and is the answer not in the manual?

Questions and answers

Summary of Contents for Intex 126166GN

Page 1: Table Of Contents
Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku. 126166GN - Easy Set Pools Ø 457 x 107 cm Overview Pool Size vs Pump Running Time...
Page 2: Overview Pool Size Vs Pump Running Time
G ROUND SIZE/Taille du terrain/ SUPERFICIE NECESARIA/Grundgröße Pump running time (Hours) / Temps de fonctionnement recommandé par jour ( heures) / H oras recomendadas por día ( Horas) / Empfohlene Betriebsstunden pro Tag ( Stunden) / O re di funzionamento raccomandate /DIMENSIONI A TERRA/GRONDMAAT/MEDIDAS DA al giorno ...
Page 3 G ROUND SIZE/Taille du terrain/ SUPERFICIE NECESARIA/Grundgröße Pump running time (Hours) / Temps de fonctionnement recommandé par jour ( heures) / H oras recomendadas por día ( Horas) / Empfohlene Betriebsstunden pro Tag ( Stunden) / O re di funzionamento raccomandate /DIMENSIONI A TERRA/GRONDMAAT/MEDIDAS DA al giorno ...
Page 4: Service Center
Dit is de adressenlijst van alle Intex afdelingen. Voor vragen over service of het bestellen van onderdelen, gelieve contact op te nemen met het adres in uw regiogebied. U kunt ook de website www.intexcorp.com bezoeken.
Page 5 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/ a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué...
Page 6: Repair Kit
REPAIR KIT KIT DE RÉPARATION PARCHE DE REPARACIÓN En raison des restrictions de transport, la colle n’est pas fournie. Utilisez Due to shipping restrictions, glue is not provided. Use PVC or Debido a restricciones en el transporte, no se incluye cola de de la colle à...
Page 7: Air Valve For Water Revitalization Set
(1701) Aeration adaptor air valve EN, FR, SP, GE, IT, DU, PT, DA, PL, RU, CH SIZE: 3.5” X 2.5” 04/25/2023 1701 NOTE: When the pump is off there might be some tear drop water coming out of the air jet valve. This is normal! NOTE: Lorsque la pompe est arrêtée, des gouttes d’eau peuvent apparaître au niveau de la valve d’entrée d’air.
Page 8 (1701) Aeration adaptor air valve EN, FR, SP, GE, IT, DU, PT, DA, PL, RU, CH SIZE: 3.5” X 2.5” 04/25/2023 Accessories such Solar Mat, Hydroelectric LED Light and/or Auto Pool Cleaner must be removed from the fi ltration system circulation line. If they are attached, aeration performance will be reduced and some tear drop water will 1701 come out of the air jet valve.
Page 9: Setup Video
(1901) setup video QR code instruction EN FR SP GE IT DU PT DA PL RU JA CH 7.5” X 10.3” 04/24/2023 1901 QR Code / Code QR / Código QR / QR-Code / Codice QR / QR code / Código QR / QR-kode / Kod QR / QR-код...
Page 10 (1901) setup video QR code instruction GR, CZ, HR, LV, LT, SK, SLO, RO, BG, TR, SRB, HU 7.5” X 10.3” 04/24/2023 1901 Κωδικός QR / QR kód / QR kôd / QR kods / QR kodas / QR kód / Koda QR / Cod QR / QR код...
Page 11: Important Safety Rules
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Ettenseweg 46, 4706 PB Roosendaal –...
Page 12 (333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 TABLE OF CONTENTS Warnings......................3 Parts References....................4 Setup Instructions.................... 5-9 Long Term Storage..................9 General Aquatic Safety..................10 Limited Warranty....................11 SAVE THESE INSTRUCTIONS Page 2...
Page 13 (333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • Supervise children and those with disabilities at all times. •...
Page 14: Parts Reference
(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. 16 (M6*40) 5 (M6*45) 17 (M6*35) 17 (M6*35) NOTE: Drawings for illustration purpose only.
Page 15 (333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 LADDER SETUP TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver One (1) pair of pliers or a small adjustable wrench Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate and individual assembly experience may vary.) WARNING INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER OR...
Page 16 (333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 LADDER SETUP (continued) 2. SIDE B LEGS ASSEMBLY (refer to figures 2.1 through 2.3): SAVE THESE INSTRUCTIONS Page 6...
Page 17 (333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 LADDER SETUP (continued) 3. SIDE C LEGS ASSEMBLY (refer to figures 3.1 through 3.4): 17 (M6*35) 4. U-SHAPED TOP RAIL INSTALLATION (refer to figures 4.1 through 4.2): IMPORTANT: Make sure the “top brace with locking system”...
Page 18 (333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 LADDER SETUP (continued) 5. SIDE A & B LEGS INSTALLATION (refer to figure 5): IMPORTANT: Do not fully tighten fasterners until last assembly operation. 17 (M6*35) 6. MAINTENANCE: Regularly check all nuts, bolts, steps and step anchor sleeves to ensure all parts are secured properly and the ladder is sturdy.
Page 19: Winterizing / Long Term Storage
(333IO) 42” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 05/05/2023 LADDER SETUP (continued) 8. AFTER USE OF LADDER (refer to figure 7): Press Pull Press Pull 9. REMOVING THE STEPS FROM THE SECURED POSITION (refer to figure 8): a) With your right hand pull and hold the latch towards you, while at the same time with your left hand press the white protruding buttons and simultaneously lift that leg out of the cavity exposing the lower white protruding buttons.
Page 20: General Aquatic Safety
• Instruct all pool users, including children what to do in case of an emergency. • Always use common sense and good judgement when enjoying any water activity. • Supervise, supervise, supervise. This ladder is designed and manufactured for Intex pool wall height: Item # Pool Wall Height 28075 42"...
Page 21: Limited Warranty
Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Intex Pool Ladder, or Intex or its agents’...
Page 22: Above Ground Pool
Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/ Vertrieb in der Europäischen Union durch/Intex Trading B.V., Ettenseweg 46, 4706 PB Roosendaal –...
Page 23 Limited Warranty................12 Special Introductory note: Thanks for buying an Intex pool. Please read this manual before setting up your pool. This information will help extend the pool life and make the pool safer for your family's enjoyment. We also recommend watching the instructional video on our website under www.intexdevelopment.com/support/videos.
Page 24: Warnings / Important Safety Rules
(86IO) EASY SET POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/19/2023 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • Continuous and competent adult supervision of children and the disabled is required at all times. •...
Page 25 (86IO) EASY SET POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/19/2023 English IMPORTANT SAFETY RULES Please read, understand, and follow all instructions carefully before installing and using this product. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases.
Page 26: Parts References
(86IO) EASY SET POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/19/2023 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. ® ® 16’ (488cm) & below Easy Set pools 17’...
Page 27 (86IO) EASY SET POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/19/2023 English POOL SETUP IMPORTANT SITE SELECTION AND GROUND PREPARATION INFORMATION WARNING • The pool location must allow you to secure all doors, windows, and safety barriers to prevent unauthorized, unintentional or unsupervised pool entry. •...
Page 28 (86IO) EASY SET POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/19/2023 English POOL SETUP (continued) You may have purchased this pool with the Intex Krystal Clear™ filter pump. The pump has its own separate set of installation instructions. First assemble your pool unit and then set up the filter pump.
Page 29 (86IO) EASY SET POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/19/2023 English POOL SETUP (continued) 4. Filling of the pool • Before filling the pool with water, ensure that the drain plug inside the pool is closed and that the drain cap on the outside is screwed on tightly.
Page 30: Pool Maintenance & Chemicals
2. Never mix chemicals together. Add the chemicals to the pool water separately. Thoroughly dissolve each chemical before adding another one to the water. 3. An Intex pool skimmer and an Intex pool vacuum are available to assist in maintaining clean pool water. See your pool dealer for these pool accessories.
Page 31: Pool Maintenance & Drainage
Do not add chemicals if the pool is occupied. This can cause skin or eye irritation. Concentrated chlorine solutions can damage the pool liner. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other party for costs associated with the loss of pool water, chemicals or water damage.
Page 32: Winter Preparations
6. Add the appropriate chemicals for the winter period. Consult your local pool dealer as to which chemicals you should use and how to use them. This can vary greatly by region. 7. Cover pool with Intex Pool Cover. IMPORTANT NOTE: INTEX POOL COVER IS NOT A SAFETY COVER.
Page 33: Limited Warranty
Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Intex Pool, or Intex or its agents’...
Page 34: Cartridge Filter Unit
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,...
Page 35 (58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English TABLE OF CONTENTS Warnings................3 Parts Reference.............. 4 Setup Instructions............5-7 Maintenance..............8-9 Pool Care and Chemicals..........8 Long Term Storage............9 Troubleshooting Guide........... 10 Common Pool Problems..........11 General Aquatic Safety...........
Page 36: Read And Follow All Instructions
(58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • Always supervise children and those with disabilities. •...
Page 37: Parts Reference
(58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SPARE PART NO.
Page 38: Setup Instructions
(58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English SETUP INSTRUCTIONS Be sure you have access to water to fill the pool and chemicals for the water. IMPORTANT: This filter pump is shipped with the air release valve (1) open (open the air release valve if necessary).
Page 39 (58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English SETUP INSTRUCTIONS (continued) WARNING Position this product away from the pool, so as to prevent children from climbing on it and accessing the pool. It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by the manufacturer.
Page 40 (58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English SETTING UP FILTER PUMP For your own personal safety, it is very important that you place your transformer more than 3.5m away from your pump. 3.5 m FILTER PUMP STATIONARY MOUNTING OPTION There are three mounting holes located at the bottom of the filter pump base.
Page 41: Pool Care And Chemicals
(58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English POOL CARE AND CHEMICALS • All pools require care to keep the water clear and hygienically clean. With proper chemical control, your filter will help attain this objective. Consult your pool supply dealer for instructions regarding the proper use of chlorine, algaecide and other chemical agents required for sparkling clear water.
Page 42: Long Term Storage
4. Remove filter cartridge (5) to clean it. The filter may be cleaned from the spray from a water hose. 5. Use judgement as to whether cartridge needs to be replaced. Only use the original Intex cartridge for replacement. See “Parts Reference” section for detail.
Page 43: Troubleshooting Guide
(58GS) MODEL 604G&638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/22/2023 English TROUBLESHOOTING GUIDE TROUBLE CAUSE SOLUTION FILTER MOTOR • The motor is not plugged in. • Filter cord must be plugged into a 3 wire outlet FAILS TO START •...
Page 44: Common Pool Problems
• Finger tighten all caps. • The drain valves are loose. • Dirt or sand on pool • Heavy use, getting in and • Use Intex pool vacuum to clean SEDIMENT floor. out of pool. bottom of pool. ON POOL...
Page 45: Limited Warranty
Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Krystal Clear™...
