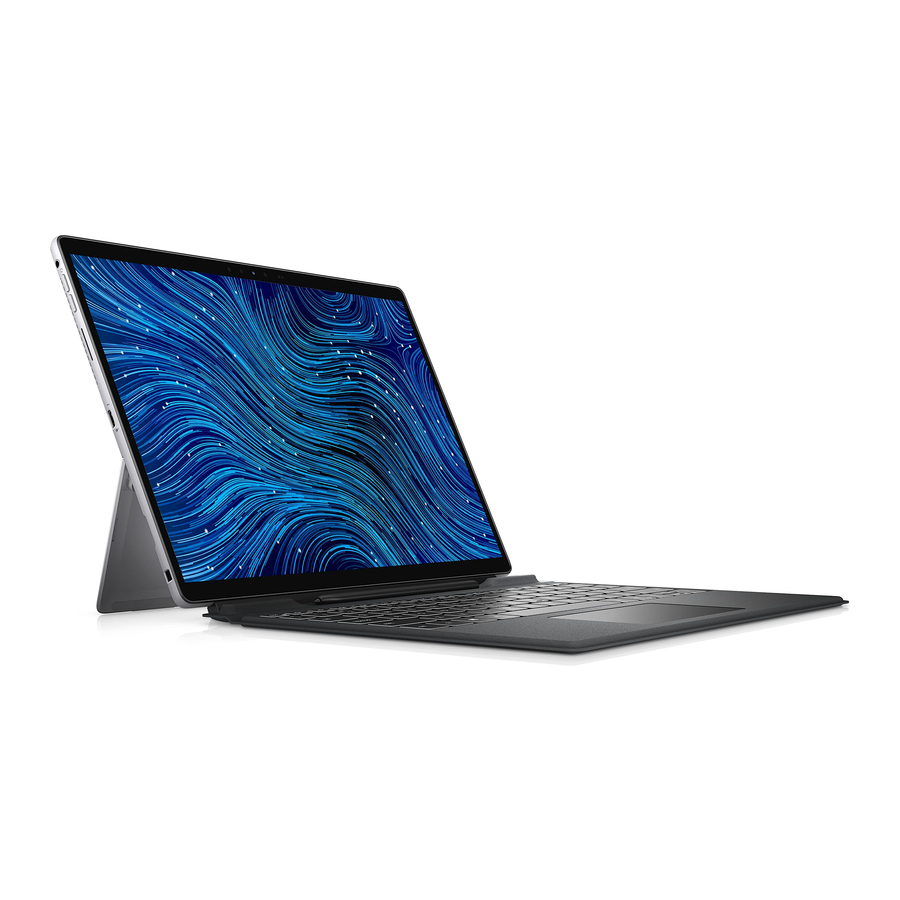

Dell Latitude 7320 Detachable (T04H) Manual

Notes/cautions and warnings

NOTE:
A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.

Set up your product

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

1. Connect the power adapter and press the power button.


NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.

2. Connect the Latitude 7320 Detachable keyboard and deploy the kick stand.
   1. Align the docking connectors on the Latitude 7320 Detachable, with the connectors on the Latitude 7320 Detachable keyboard.

   2. Dock the Latitude 7320 Detachable to the Latitude 7320 Detachable keyboard.
      • Using your finger tips, deploy the kick stand from the recess on the computer.

3. Align the Latitude 7320 Detachable Active pen charging pins with the charging pins on the Latitude 7320 Detachable keyboard and dock it in the cradle.


NOTE: The charging time for the Latitude 7320 Detachable Active pen is 30 seconds.

4. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.

NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.

• If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
• On the Support and Protection screen, enter your contact details.

5. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps
Resources	Description
	SupportAssist Proactively checks the health of your computer's hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at Dell Support Site. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at Dell Support Site.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at Dell Support Site.

Views of a product

Right

1. USB4 Type-C ports with Thunderbolt4/PowerDelivery/DisplayPort
2. Speaker
3. Nano SIM card slot

Left

1. Combo Mic/Headphone Jack
2. Volume up/down button
3. Speaker
4. Contactless/Contacted smart card reader (optional)
5. USB4 Type-C ports with Thunderbolt4/Power Delivery/Display Port
6. Wedge-shaped lock slot

Display

1. Ambient light sensor
2. IR emitters
3. IR/RGB camera
4. Front/rear camera status LED
5. Proximity sensor
6. LCD panel

Back

1. Fingerprint reader
2. NFC reader
3. Rear RGB camera
4. Kickstand

Top

1. Power button
2. Battery status/Diagnostics LED
3. Microphone

Bottom

1. Keyboard docking magnets
2. Pogo connector

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Battery Charge and Status LED

• S0 (ON) - System is turned on.
• S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
• S5 (OFF) - The system is in a shutdown state.

Specifications of the product

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 7320 Detachable.

Processor

The following table lists the details of the processors that are supported for your Latitude 7320 Detachable.

Chipset

The following table lists the details of the chipset that is supported for your Latitude 7320 Detachable.

Operating system

Your Latitude 7320 Detachable supports the following operating systems:

• Windows 11 Home, 64-bit
• Windows 11 Pro, 64-bit
• Windows 11 Pro National Academic, 64-bit
• Windows 10 Home, 64-bit
• Windows 10 Pro, 64-bit

Memory

The following table lists the memory specifications of your Latitude 7320 Detachable.

External ports

The following table lists the external ports of your Latitude 7320 Detachable.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Latitude 7320 Detachable.

Table 10. Wireless module specifications
Description	Values
Model number	Intel Dual Band Wireless-AX201D2W NOTE: The WLAN card is integrated into the system board
Transfer rate	2400 Mbps
Frequency bands supported	2.4/ 5 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (Wi-Fi 802.11ac) Wi-Fi 6 (Wi-Fi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card	Bluetooth 5.1 NOTE: The version of the Bluetooth wireless card may vary depending on the operating system that is installed on your computer.

WWAN module

Table 11. WWAN module specifications
Description
Model number	Qualcomm Snapdragon X20 Global Gigabit LTE, CAT16
Transfer rate	Up to 867 Mbps DL/50 Mbps UL (Cat 16)
Frequency bands supported	(1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/38/39/40/41/42/43/46/48/66 ), HSPA+ (1/2/4/5/6/8/9/19 )
Wireless standards	Not Applicable
Encryption	Not Applicable
Bluetooth	Not Applicable
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, see the knowledge base article 000143678 at Dell Support Site.

Audio

The following table lists the audio specifications of your Latitude 7320 Detachable.

Storage

This section lists the storage options on your Latitude 7320 Detachable.

Your computer supports one of the following configurations:

• One M.2 2230 solid-state drive
• One M.2 2230 PCIe/NVMe Class 35 SED

Keyboard

The following table lists the keyboard specifications of your Latitude 7320 Detachable.

Camera

Power adapter

The following table lists the power adapter specifications of your Latitude 7320 Detachable.

Battery

The following table lists the battery specifications of your Latitude 7320 Detachable.

Table 17. Battery specifications
Description		Option one	Option two
Battery type		2-Cell, 40 WHr, Polymer	2-Cell, 40 WHr, Long Cycle Life, Polymer (optional)
Battery voltage		8.90 VDC	8.90 VDC
Battery weight (maximum)		0.16 kg (0.35 lb)	0.16 kg (0.35 lb)
Battery dimensions:	Height	4.80 mm (0.188 in.)	4.80 mm (0.19 in.)
	Width	81.20 mm (3.19 in.)	81.20 mm (3.19 in.)
	Depth	185 mm (7.28 in.)	185 mm (7.28 in.)
Temperature range:	Operating	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)
	Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on Dell Support Site.		4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on Dell Support Site	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on Dell Support Site
Coin-cell battery		Not supported	Not supported
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Display

The following table lists the display specifications of your Latitude 7320 Detachable.

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Latitude 7320 Detachable.

GPU-Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 7320 Detachable.

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Sensor

The following table lists the sensor of your Latitude 7320 Detachable.

Sensor and control specifications

Hall Effect sensor is located on System board

Dell low blue light display

Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.
Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

• Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
• Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours.

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 23. Self-help resources
Self-help resources	Resource location
Information about Dell products and services	Dell Support
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	Dell Support for Windows Dell Support for Linux
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on.	Dell Support Site
Dell knowledge base articles for a variety of computer concerns.	Go to Dell Support Site. Type the subject or keyword in the Search box. Click Search to retrieve the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see Contact Dell.
NOTE: Availability varies by country and product, and some services may not be available in your country.
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
