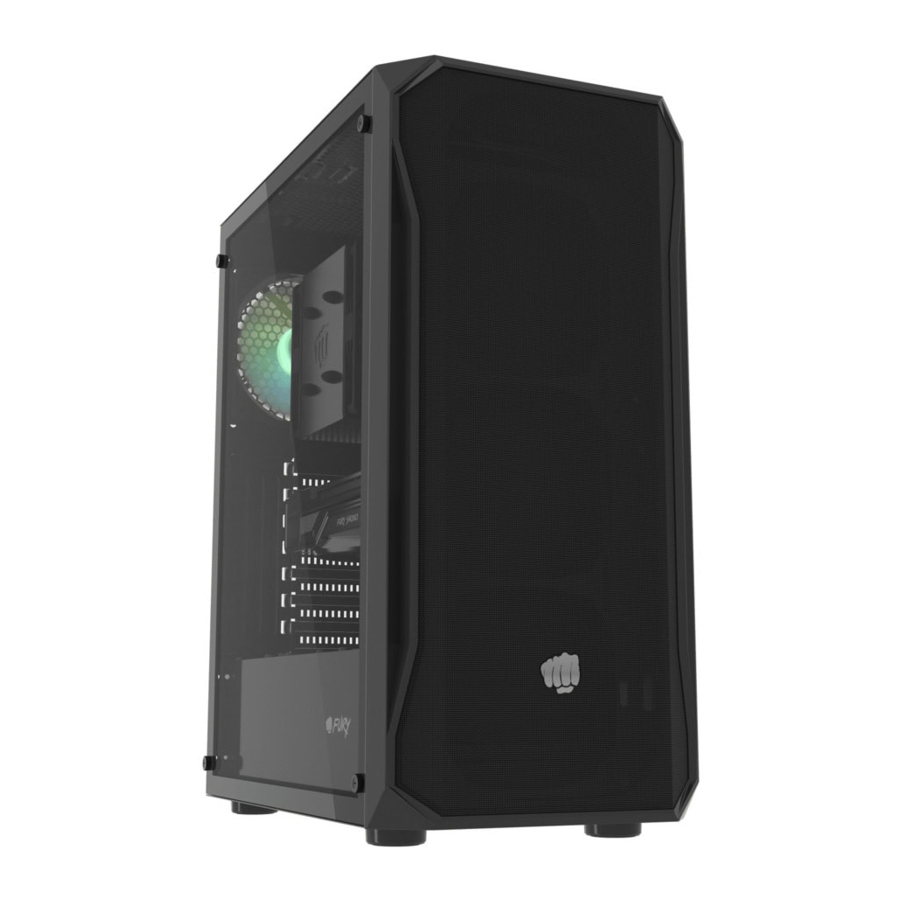

Fury Shobo SH4 / SH4F Manual

PRODUCT INFORMATION

PACKAGE CONTENT

PC case | Boîtier PC
120 mm RGB fan
SF1 - Screw stand-off for motherboard
PS1 - Screw for PSU
MB1 - Screw for Motherboard/SSD on HDD bracket
HD1 - Screw for HDD in bracket
Cable tie
Screw washers
Installation guide

* - SH4 RGB
** - SH4F RGB

Setting Up

  1. Unscrew and remove both side panels.
    Setting Up - Step 1
  2. Screw in the motherboard using MB1 screws. If necessary, screw in additional SF-1 standoffs beforehand.
    Setting Up - Step 2
  3. If present, screw in the 2.5" (e.g. SSD) or 3.5" (HDD) drives using MB1 (for 2.5") or HD1 (for 3.5" HDD) screws. You can access the HDD cage and SSD tray from the service bay side (under the metal side panel of the case).
    Setting Up - Step 3
  4. Connect the front panel connectors (including POWER, RESET), USB 3.0, USB 2.0 and HD Audio ports to the corresponding motherboard slots according to the motherboard's manual.
    Setting Up - Step 4
  5. Screw in the ATX power supply using PS1 screws, connect its cables according to the power supply and motherboard instructions.
    Setting Up - Step 5
  6. Connect the fans:
    Setting Up - Step 6
    • Shobo SH4 RGB: connect the fan cable to the MOLEX connector of the ATX power supply.
    • Shobo SH4F RGB: connect the spliced fan plugs to one MOLEX connector of the ATX power supply.
  7. If present, install the graphics card, connect the power cables to it (if this model requires).
    Setting Up - Step 7

Note: If you need to replace the front fans or install a liquid cooling system (e.g., AIO LC), remove the front panel by pulling more firmly on the bottom part.
