Installation, Operation & Maintenance Manual
Fig. 7907 ELA60
IP67 (optionally IP68)
Scan for manual
Installation, Operation and Maintenance Manual for actuator: ELA60
Website: www.hkcon.co.kr
ECON actuator Fig 7907, type ELA60
Rev.15 – January, 2025
ECON ELECTRIC ACTUATOR
Fig. 7907, type ELA60
Fig. 7907 ELA60-Ex
ǁ 2G Ex db IIB T4 Gb

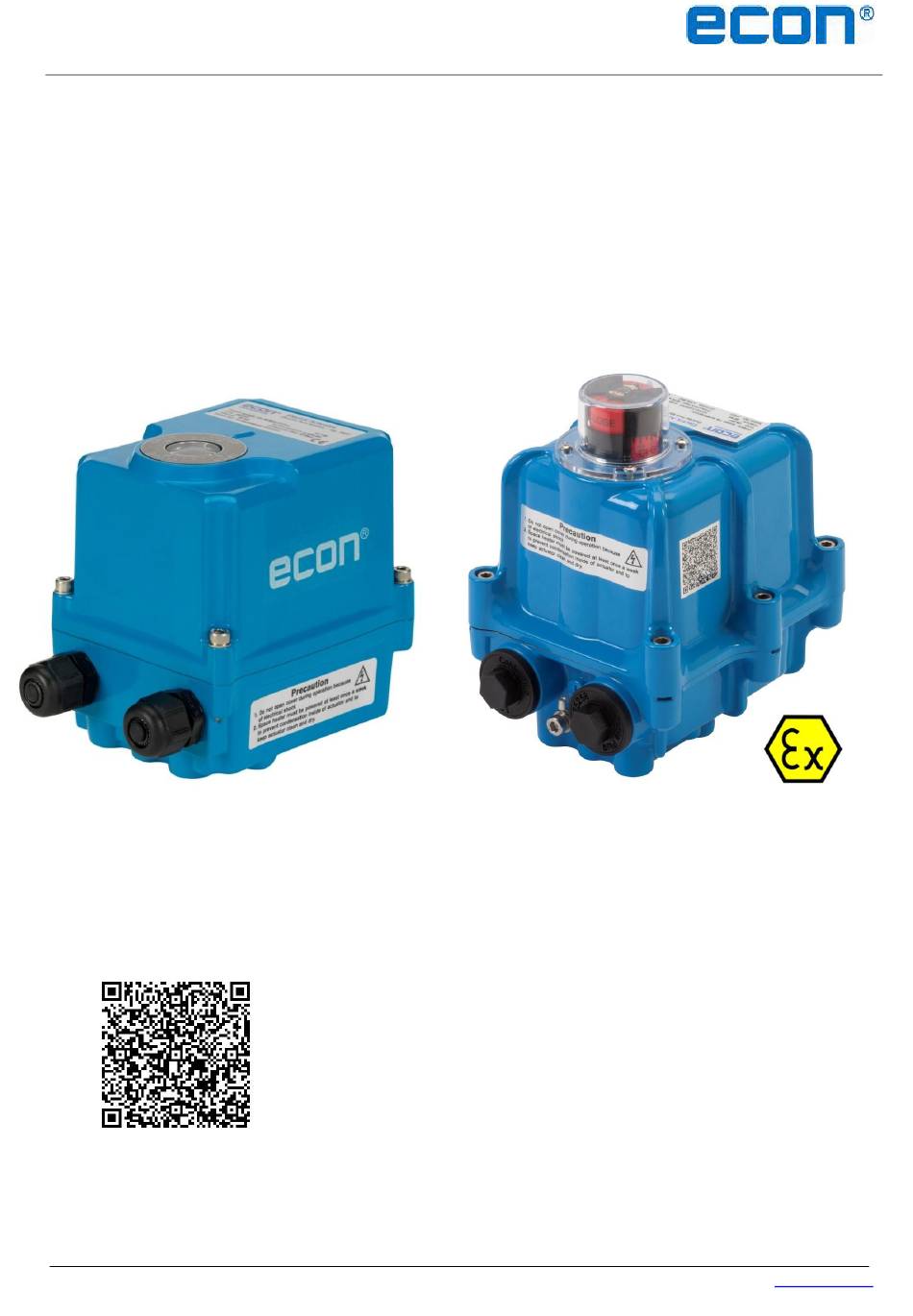

Small & Compact quarter turn actuator
Mechanical position indicator
High output torque
Multi mounting base
Manual override
Proven Quality since 1892
www.eriks.com
Advertisement
Table of Contents
Related Manuals for ERIKS 7907 ELA60
Summary of Contents for ERIKS 7907 ELA60
- Page 1 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON ELECTRIC ACTUATOR Fig. 7907, type ELA60 Fig. 7907 ELA60 Fig. 7907 ELA60-Ex ǁ 2G Ex db IIB T4 Gb IP67 (optionally IP68) Small & Compact quarter turn actuator Mechanical position indicator...
-
Page 2: Table Of Contents
4.6.5. PCU-EB – Proportional Control Unit Alternating Current (2020 VERSION) 4.7. AC/DC Multi-Board (Optional) 5. FIELDBUS COMMUNICATION PROTOCOL (Optional) 5.1. ModBus Controler 5.2. Specification 6. OPERATION 6.1. Electrical Connections and Preliminary Test 7. MAINTENANCE 7.1. Maintenance 7.2. Tools ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... - Page 3 8.2. The actuator is supplied with power but does not operate 8.3. Actuator runs erratically 8.4. Optional Equipment 9. DIMENSIONS 9.1. ELA60 On/Off Type 9.2. ELA60 PCU Type 9.3. ELA60-Ex-version On/Off type WIRING DIAGRAMS ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
-
Page 4: Introduction
Note: Information in this manual is critical to the user’s understanding of the actuator’s installation and operation PRODUCT IDENTIFICATION Product Identification The actuator name plate is located on the opposite side of the conduit entry. The name plate contains the following: ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 5: Marking
· Check the product specification of the received product. If a wrong product has been shipped, please immediately report this to the distributing company. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 6: Storage
(lbs) F04-F05-F07, DS14 ELA60 60 (531) 14/12 10 - 15* F03-F05-F07, DS14 0,39/0,39 0,21/0,20 3 (6.6) *The exact operating time for 24VDC actuators depends on the effective load. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 7: Additional Technical Data
The manual override system of the ELA60-Ex d actuators can be operated by using a 4mm Allen key only. Turn the manual override (Allen key) until the valve reaches the required position (turn clockwise to fully open and counter-clockwise to fully close). ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 8: Lubrication
Internal Parts for Standard Models Internal Parts ELA60 Motor Indicator Open Limit Switch Close Limit Switch Additional Open Limit Switch Additional Close Limit Switch Potentiometer Unit (Optional) Terminal Heater Capacitor ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 9: Installation
Actuator Mounting Note: 1. Prior to mounting, the part-turn actuator must be checked for any damage 2. Damaged parts must be replaced by genuine spare parts ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 10: Actuator Mounting Base Details
Note: Make sure both the actuator and valve are fully closed. Actuator Mounting Square reducer: 14mm to 11mm 11mm to 9mm Double Square reducer: 14mm to 11mm F03*, F05, F07 Double Square 11mm to 9mm *F04 for Ex- 14mm ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 11: Limit Switch Setting
Rotate the OPEN cam CCW until the limit switch ‘clicks’ (see Figure 2 below) · Tighten the set screw with the Allen key DANGER: HAZARDOUS VOLTAGE. Make sure all incoming power is disconnected before setting the limit switches ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 12: Setting Potentiometer (Optional)
-20°C (-4°F) to 60°C (140°F) Ambient Humidity 90% RH Max (Non-condensing condition) Dielectric Strength 1500V AC 1 Min (Input to output to power ground) Insulation Resistance Above 500V DC 30MΩ Vibration 10g, 0~34Hz ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 13: Calibration Of Zero And Span - Cpt
Please be aware that since the year 2020 a second version PCU (VAC) became available. This PCU can be recognized by the “PCU-EB” marking on the PCB. This PCB has a slightly different setting instruction, which can be found in paragraph 4.6.5.. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 14: Pcu-A Proportional Control Unit Alternating Current
Settings the PCU functions are shown in paragraph 4.6.3 and 4.6.4. CAUTION: HAZARDOUS VOLTAGE. Turn off all power before mounting the PCB. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 15: Pcu-D Proportional Control Unit Direct Current
However, we strongly recommend that input power, signal input selection and dip switches are to be verified prior to the actuator start up. Settings the PCU functions are shown in paragraph 4.6.3 and 4.6.4. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 16: Led Signal Indication
2 - 10V DC 0 - 5V DC 0 - 10V DC 60 Hz 50 Hz Note: If not specified, the factory setting of the input signal is 4 - 20mA. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... - Page 17 SW8 No.2 or SW3 No.2 “ON” SW7 No.3 or SW2 No.3 “OFF” Output Signal Switch If not specified, the factory setting of the output signal is 4 - 20mA. Note: ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 18 D) Special Signal Setting for Fully Open and Fully Closed Signal: 4.3~4.0mA Fully Closed Auto-Full Switch (Switch 3) On (up) Signal: 19.7~20.0mA Fully Open Signal: 4mA Fully Closed Auto-Full Switch (Switch 3) Off (down) Signal: 20mA Fully Open ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 19 2 seconds. In both cases, the yellow LED will be lit off to indicate the termination of the Manual Operation Mode. Note: During the Manual Operation mode, the input signal is ignored. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
-
Page 20: Delay Time
· Turning the Delay Time Dial in clockwise direction will increase the delay time (Range 0.05 to 7.5 seconds). Dial 0.05 Dial ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 21: Pcu-Eb - Proportional Control Unit Alternating Current (2020 Version)
Please be noted that two PCU Alternating Current PCB’s are available. Check the markings on the PCB before you start working on the settings. The instructions below are only applicable to the PCU-EB PCB. PCU-EB-V1.5 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... - Page 22 X, Y & Z, 10g (6g based on RMF), Frequency: 0.2~34Hz, Time: 30 minutes A) LED Signal Indication Signal Open Blue Power or Auto Close Green Manual or Fault Yellow ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
-
Page 23: Selecting Input Signal
By Dip Switch Note: 4-20mA is the standard factory setting for the output signal of this PCU. CAUTION: “(1) Selection of input signal” ZERO SWITCH (SW7 No.3) Usage Notes ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... - Page 24 : 0.2s (the minimum value) ③ Step 5 ~ 15 : 0.25s increase per step (0.25 ~ 1 sec) ④ Factory setting : “2” : 0.50s increase per step (2.5 ~ 7.5 sec) ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 25 Note: The Auto Setting command is cancelled automatically when any button (Zero, Span or A-scan) is pressed during the Auto Setting mode. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 26 · ZERO (FULL CLOSE) Signal, SPAN (FULL OPEN) Signal for changing the Signal · ZERO (FULL CLOSE) Signal SETTING Range: Generally 3 ~ 8 mA DC · SPAN (FULL OPEN) Signal SETTING Range: Generally 16 ~ 21mA DC ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 27 Check if the RED LED is on. ⑫ Check if the RED and GREEN LED are switched on together and wait until RED LED switches off. Put dip switch No. 4 back to OFF (SW7). ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 28 EEPROM Error Input signal initialization error Auto Setting initialization error Input signal error Motor backlashing Command signal select switch error POTENTIOMETER Open position error Close position error Limit switch error ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
-
Page 29: Ac/Dc Multi-Board (Optional)
“ON” and #2 switch turn “OFF” “OFF” and #2 switch turn “ON” Note: Don’t operate both switches #1 and #2 at the same time. It may damage the board ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 30: Fieldbus Communication Protocol (Optional)
Supported Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 · Supported Parity Bit: Odd, Even, None · Supported Stop Bit: 1, 2 For more detail information, please refer to separate ModBus operation manual. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 31: Operation
HAZARDOUS VOLTAGE. Electrical power must not be connected until all wiring and limit switch adjustments have been completed. Once the power is supplied to the unit, precautions must be taken if the cover is not mounted on the actuator. ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 32: Maintenance
Multi-meter (AC, DC, Resistance) x 1 · PCU Board option: DC Signal Generator (4 – 20mA DC) x 1 · PCU & CTU Board Option: 1mA Ammeter (0 – 25mA) ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 33: Trouble Shooting
Verify that coupler/bracket is correctly installed and may not block the actuator rotation. Actuator runs erratically · Check the ambient temperature · Verify that the duty cycle has not been exceeded · Check the position of manual override lever ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 34: Optional Equipment
Check the board for any damage 2) Current Position Transmitter · Verify the input signal · Check the configuration of the dip switches · Check the board for any damage ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 35: Dimensions
Installation, Operation & Maintenance Manual Proven Quality since 1892 DIMENSIONS ELA60 On/Off Type ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 36: Ela60 Pcu Type
Installation, Operation & Maintenance Manual Proven Quality since 1892 ELA60 PCU Type (Optional) ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 37: Ela60-Ex-Version On/Off Type
Installation, Operation & Maintenance Manual Proven Quality since 1892 ELA60-Ex-version On/Off Type NOTE : For more information regarding this product, please contact your nearest supplier on www.eriks.com ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... -
Page 38: Wiring Diagrams
Installation, Operation & Maintenance Manual Proven Quality since 1892 WIRING DIAGRAMS ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025... - Page 39 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 40 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 41 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 42 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 43 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 44 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 45 Installation, Operation & Maintenance Manual Proven Quality since 1892 ECON actuator Fig 7907, type ELA60 www.eriks.com Rev.15 – January, 2025...
- Page 46 If you have questions about this product, Please contact the nearest ECON distributor. You can find them on www.eriks.com ERIKS Flow Control Cypresbaan 63, 2908 LT Capelle aan den IJssel, The Netherlands Phone: +31 (0)10 284 1100 ECON actuator Fig 7907, type ELA60 www.eriks.com...
