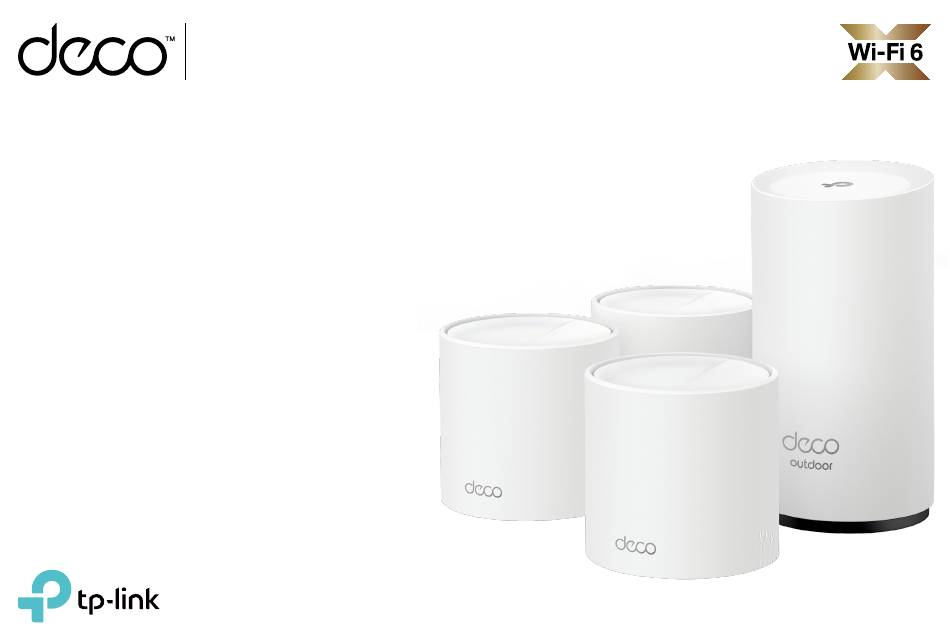

- Page 1 Deco XM50 (4-Pack) Outdoor/Indoor Mesh Wi-Fi User Guide AX3000 Indoor and Outdoor Whole Home Mesh Wi-Fi 6 System 1910013846 REV1.0.0 © 2024 TP-Link...
-
Page 2: Table Of Contents
Contents About This Guide ···················································· 1 Appearance(Deco XM50-Outdoor) ·············· 2 Appearance(Deco XM50) ·································· 3 Set Up Your Indoor Deco ···································· 4 Set Up Your Outdoor Deco ································ 9 Troubleshooting ····················································12 Authentication ························································13... -
Page 3: About This Guide
• A Technical Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support. -
Page 4: Appearance(Deco Xm50-Outdoor)
Appearance(Deco XM50-Outdoor) Each Deco XM50-Outdoor has an LED that changes color according to its status, a mounting tab, two gigabit ports, a power slot, and a Reset button. See the explanation below: Yellow pulse: Deco is resetting. Yellow solid: Deco is starting up. -
Page 5: Appearance(Deco Xm50)
Appearance(Deco XM50) Each Deco XM50 has an LED that changes color according to its status, three Ethernet ports, a power slot, and a Reset button. See the explanation below: Pulse Yellow: Deco is resetting. Solid Yellow: Deco is starting up. -
Page 6: Set Up Your Indoor Deco
Set Up Your Indoor Deco First let's start by setting up the indoor Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup. 1. Get the Deco app 2. Log in with TP-Link ID 3. - Page 7 4. Plug in your indoor Deco 5. Connect your indoor Deco Plug in one of your indoor Decos and wait unitl the LED pulses blue. Then your phone/ Connect your indoor Deco to the modem via an Ethernet cable. tablet will connect to the indoor Deco's default Wi-Fi automatically. If you don't have a modem, connect your indoor Deco directly Make sure you've connected to the right Deco and then continue the setup.
- Page 8 6. Specify your indoor Deco's location 7. Connect your indoor Deco to the internet 8. Create your Wi-Fi network Select or custom a location for your indoor Select the internet connection type and enter Set a network name and a password. These Deco.
- Page 9 9. Setup complete 10. Add more indoor Decos Your indoor Deco network is now up. You Plug in the other included indoor Decos, can connect your devices to the network. and they will automatically join the network within 2 minutes, and the LED will turn solid green, indicating a successful connection.
- Page 10 11. Plug in and mount your outdoor Decos Power on the outdoor Deco and mount it on the wall or on the pole as needed. Refer to Set Up Your Outdoor Deco for step-by-step instructions. Then you're all set.
-
Page 11: Set Up Your Outdoor Deco
Set Up Your Outdoor Deco Your outdoor Deco is equipped with a waterproof cover for better safety in the outdoors. Follow the steps below to power on your outdoor Deco and waterproof it, then mount it in the preferred way. Step 1. - Page 12 Step 2. Mount the outdoor Deco Deco can be mounted to a pole or a wall. Choose the appropriate mounting methods. Option 1: Pole Mounting The outdoor Deco can be mounted to a pole with the strap in the package. Pole Mounting Strap Lead the end of the pole mounting Position the outdoor Deco and...
- Page 13 Option 2: Wall Mounting The Deco can be mounted to a wall with the bracket, anchors, and screws in the package. Mounting Bracket Plastic Wall Anchors Self-tapping Screws Place the mounting bracket in the Insert the plastic wall anchors into Align the mounting tabs on the right position.
-
Page 14: Troubleshooting
Solutions to common problems during setup or use are provided here for reference. Follow the steps and the provided link below to diagnose and solve problems you might experience with your Deco. If problems still exist, contact us: https://www.tp-link.com/support Q1. What should I do if I fail to configure the main Deco and get stuck on “We couldn't find Deco”? Refer to the guide https://www.tp-link.com/support/faq/2239/... -
Page 15: Authentication
Authentication FCC Compliance Information Statement Product Name: AX3000 Indoor/Outdoor Whole Home Mesh Wi-Fi 6 System Model Number: Deco XM50(4-pack) Component Name Model I.T.E Power Supply T120150-2B4 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com... - Page 16 We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
- Page 17 FCC Compliance Information Statement Product Name: I.T.E POWER SUPPLY Model Number: T120150-2B4 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
-
Page 19: Canadian Compliance Statement
Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. - Page 20 NCC Notice & BSMI Notice: 注意！ 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 應避免影響附近雷達系統之操作。 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先切斷電源。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱： 型號（型式）： Equipment name: Type designation (Type) AX3000 Indoor/Outdoor Whole Home Mesh Deco XM50(4-pack) Wi-Fi 6 System...
- Page 21 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE) ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○...
- Page 22 • Do not use the device where wireless devices are not allowed. • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Adapter shall be installed near the equipment and shall be easily accessible. •...
- Page 23 Note: The product label can be found at the bottom of the product and its I.T.E. power supply. Symbol Explanation Class II equipment Class II equipment with functional earthing Alternating current DC voltage Polarity of output terminals Indoor use only Dangerous voltage Caution, risk of electric shock Energy efficiency Marking...
- Page 24 Symbol Explanation Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
- Page 25 Symbol Explanation Switch of micro-gap construction (for US version) µ Switch of micro-gap / micro-disconnection construction (for other versions except US) ε Switch without contact gap (Semiconductor switching device)
