SF105B-18R/SF105B-23R

ELECTRIC FIREPLACE

MADE IN CHINA

Table of Contents

Need help?

Do you have a question about the SF105B-18R and is the answer not in the manual?

Questions and answers

Summary of Contents for rovsun SF105B-18R

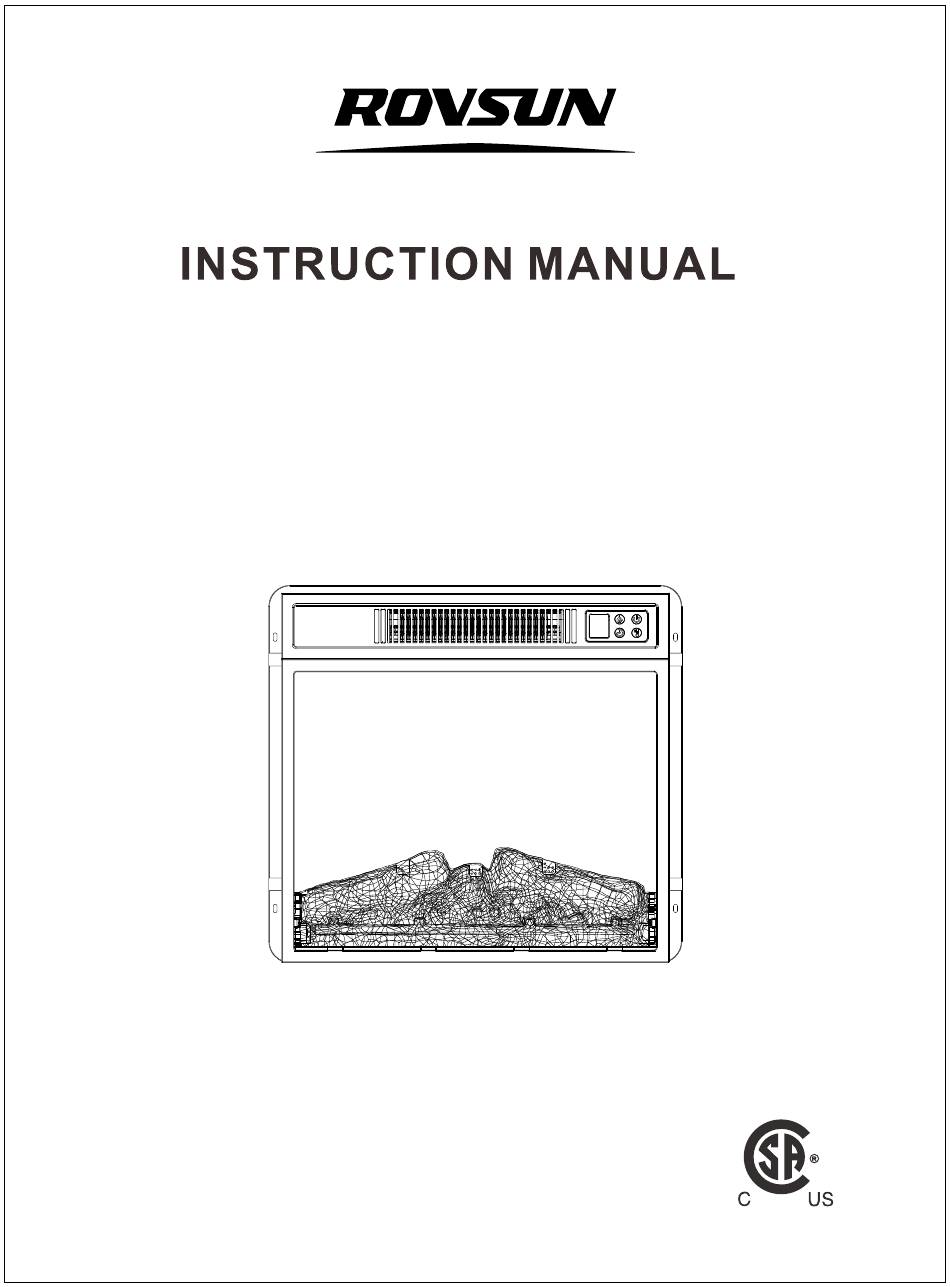

Page 1 SF105B-18R/SF105B-23R ELECTRIC FIREPLACE MADE IN CHINA...
Page 2: Table Of Contents
Table of Contents Safety Information..................3 Pre-installation..................6 Assembly..................7 Operation..................8 Using the Remote Control..............11 Smart Connection Guide...............12 Using the APP..................15 Care and Maintenance................16 Troubleshooting..................17...
Page 3: Important Safety Information
Safety Information IMPORTANT SAFETY INFORMATION PLEASE READ ALL OF THE INFORMATION IN THIS OPERATING MANUAL, INCLUDING ALL SAFETY, OPERATING, AND MAINTENANCE INFORMATION. TO AVOID THE POTENTIAL RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, USERS SHOULD FOLLOW THE DIRECTIONS AND WARNINGS IN THIS MANUAL 1. Read all instructions before using this heater. 2. Do not use this heater outdoors. 3. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate the heater where it may fall into a bathtub or other water container. 4. Do not run the power cord under carpeting. Do not cover the power cord with throw rugs, runners, or the like. Arrange the power cord away from traf c areas and where it will not be tripped over. 5. To disconnect the heater, turn controls to off, then remove the plug from the outlet. 6. Connect to properly grounded outlets only. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip). 7. To prevent a possible re, do not block rebox air intakes or the exhaust in any manner. Do not operate the rebox on soft surfaces, like a bed, where openings may become blocked. 8. There is a thermostat limiter inside the heater. When the inner temperature over heats or abnormal heating occurs, the thermostat protective device cuts off the power supply to avoid replace damaged or risk of re. 9. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause re, electrical shock, or injury to persons.
Page 4 SAVE THESE INSTRUCTIONS There are no user serviceable parts inside the replace/heater, WARNING If the unit appears to malfunction, turm the unit offand unplug the unit from the wall immediately, and contact Customer. This heater is hot when in use.To avoid burns, do not let bare skin touch hot surfaces. If provided,use handles when moving this heater, Keep combustible material, WARNING such as furniture,pillows, bedding, papers,clothes and curtains at least 3 f.t(0.9 meters) from the front of the heater and keep them away from the sides and rear. Extreme caution is necessary when any heater is used by or near children or invalids WARNING and whenever the heater is left operating and unattended. WARNING Always unplug the heater when not in use. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. WARNING Return the heater to an authorized service facility for examination, electrical or mechanical adjustment, or repair. Do not insert or allow foreign objects to enter any ventilation or exhaust openings WARNING as this may cause an electric shock or re,or damage the heater. A heater has hot and arching or sparking parts inside. WARNING Do not use in areas where gasoline, paint, or ammable liquids are used or stored. While the heater is in use,the top center of the replace can get hot to the touch, and may cause serious injury or burns. Always supervise small children around the replace/heater. CAUTION Do not place any cloth or decorations over the heater outlet of the replace, or otherwise obstruct the heater outlet of the replace, as this may cause a ...
Page 5: Grounding Instructions
Safety Information (continued) GROUNDING INSTRUCTIONS Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a quali ed electrician DANGER or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not t the outlet, have a proper outlet installed by a quali ed electrician. This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock, This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This heater is for use on 120-volt circuits and has a grounded plug. An adapter is available from your local electronics store or online supplier for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available. Grounding Pin Cover of Grounded Outlet Box Adapter Grounding Lug Metal Screw Cover of Grounded Outlet Box...
Page 6: Pre-Installation
Pre-installation TECHNICAL SPECIFICATION Dimensions(WxDxH)/SF105B-18R 19x 5.1x 17.5 Inch Dimensions(WxDxH)/SF105B-23R 24x 5.1x 17.5 Inch Power Rating 1400W Voltage 120V Frequency 60Hz PACKAGE CONTENT Fireplace Unit Remote Control Screw x5...
Page 7: Assembly
Assembly ● STEP 1 Take out the unit from the box and layout all the spare parts for easy assembly. Make sure all small items are not left in packaging materials. ● STEP 2 Carefully set the unit from the back of the mantel and center it in the opening. Check the alignment and attach the unit of the mantel by inserting screws through the drilled holes on the trim of the mantel.
Page 8: Operation
Operation ● Identifying the control panel •The control panel is located on the top right corner of the replace/heater unit. •The control panel contains the display unit (1), function indicator (2), timer function (3),heater control (4), ames control (5), and main power(6). •The display unit (1) displays information about the ame level,timer, and current temperature. ● Understanding the function indicator •The function indicator (2) has three square LEDS -red, green,and blue.The red LED indicates that the Fahrenheit temperature heating function is running, the green LED indicates that the Celsius temperature heating function is running, and the blue LED indicates that the timer function is engaged. •To the bottom of the three LEDS, is the infrared receiver module which communicates with the remote control to control the heater.
Page 9 Operation ● Using the timer function The timer button (3) allows you to set the amount of time you want the replace/heater to run.The timer button (3) operates both the ames and the heater function. if the heater is operating when the timer is set, then the heater is on the timer. if the ames are operating, then the timer will control the ames. if both the heater and ames are operating with the timer set ,then the timer controls both the ames and the heater. Pressing the button in sequence will set the timer for a set interval. This interval period is shown in the display (1), in blue. The set intervals are displayed in this table. The timer interval is set from the time the interval is selected.There is no clock function for turning the heater or ames on or off at a speci c time. Button Press Timer Interval Display 1st press 30 Minutes 30 2nd press 1 Hour 1h 3rd press 2 Hours 2h 4th press 3 Hours 3h 5th press 4 Hours 4h 6th press 5 Hours 5h ...
Page 10 Operation ● Using the f ame control •Press the ame control button manually set ame color. The ame color settings are as follows: Display Color Name Orange Orange Red Blue Red Blue Orange Blue Orange Red Automatically cycle through all ame colors ● Using the main power button •Press the power button(6) to turn the replace/heater unit on and oft. Press the power button (6) once to turn the unit on.Press again to turn the unit off.
Page 11: Using The Remote Control
Using the Remote Control Main Power Heater Control Flame Control Heater Down Time Control Heater Up ● Using the Remote control The operation of the remote control buttons work the same as button on the control panel. ● Install the battery For replacement batteries, use AAA batteries. Press down and slide back cover off the battery compartment.
Page 12: Smart Connection Guide
Smart Connection Guide ● SYSTEM REQUIREMENTS •Supported wireless routers must have a 2.4 GHz operating frequency •Standard: 802.11b/g/n bans •Supported smartphone systems: Android 6.0 or later iOS 11 or later Step 1 To download the app, scan the QR code. You can download the iOS or Android version, then install on your mobile device.
Page 13 Smart Connection Guide Step 3 Select your network and enter the password. The network must be 2.4 Ghz. Step 4 When the replace is plugged in, you can search for replace’s name. To activate Wi-Fi pairing mode in replace standby mode, press and hold the Timer Button for 5 seconds. The display screen will ash “PO”...
Page 14 Smart Connection Guide Step 6 Choose your Wi-Fi name (the one your phone is connected to) and enter the password, Press the “Next” button to continue. Tip: If the WI-FI password is displayed, please press Next. Step 7 The app starts connect to your replace. It may take some time, but please wait patiently to set up the connection.
Page 15: Using The App
USING THE APP RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.
Page 16: Care And Maintenance
Care and Maintenance Always disconnect from the power supply before cleaning the heater. First turn off the main power. WARNING Then remove the electrical plug from the wall outlet. Do not use this replace insert if any part of it has been under water. WARNING Immediately call a quali ed service technician to inspect the rebox and replace any part of the electrical system which has been underwater. The blower motor and ame motor are pre-lubricated for a durable using time and need no further lubrication or maintenance.To remove any accumulation of dust or debris, the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater. ● Use a soft, clean cloth that will not scratch the surface when dusting. ● Use a clean soft cloth dampened with warm water to clean the replace surface. D0 NOT use household or abrasive cleaners, as these products may damage the surface. ● When cleaning the glass viewing screen use a non-abrasive damp cloth with liquid cleaner or soft soap if necessary; Don NOT use cleaning powders or any other substance with abrasives since these substances will scratch glass. ● Under no circumstances should this product be operated with a broken or chipped glass panel. ● Do not strike or slam the glass. ● In the event that your appliance is stained or otherwise damaged during use, we recommend that you call a professional to it.
Page 17: Troubleshooting
Troubleshooting Problem Solution The unit does not turn on. Check that the unit is fully plugged into a standard 120 V outlet. Press the power button on the control panel. The unit is on, but there is no ame effect. Open the back panels to check if the ame spindle has fallen off from the spindle motor. There is a visible ame effect, but the heater Turn on/off the heater button several times to does not continue to blow warm air after repeatedly make sure it is in the“ON”position. turning on the heater. The heater does not work, but the power Turn all switches to the“OFF”position and unplug and heater switchesare in the“ON”position. the unit from the wall outlet for 5 minutes. After 5 minutesplug the unit back into the wall outlet, and operate as normal. Make sure that no objects are blocking the air vents on the top and on the front of your replace . Remote control is not working. Change the remote battery. Operate remote transmitter at a slow measured pace. Press the remote control buttons with an even motion and gentle pressure. Repeatedly pressing buttons in rapid succession may cause the transmitter to malfunction. Stand closer to your replace. Remove objects that may block your remote control's ...
