Summary of Contents for Midea MA500W180/G

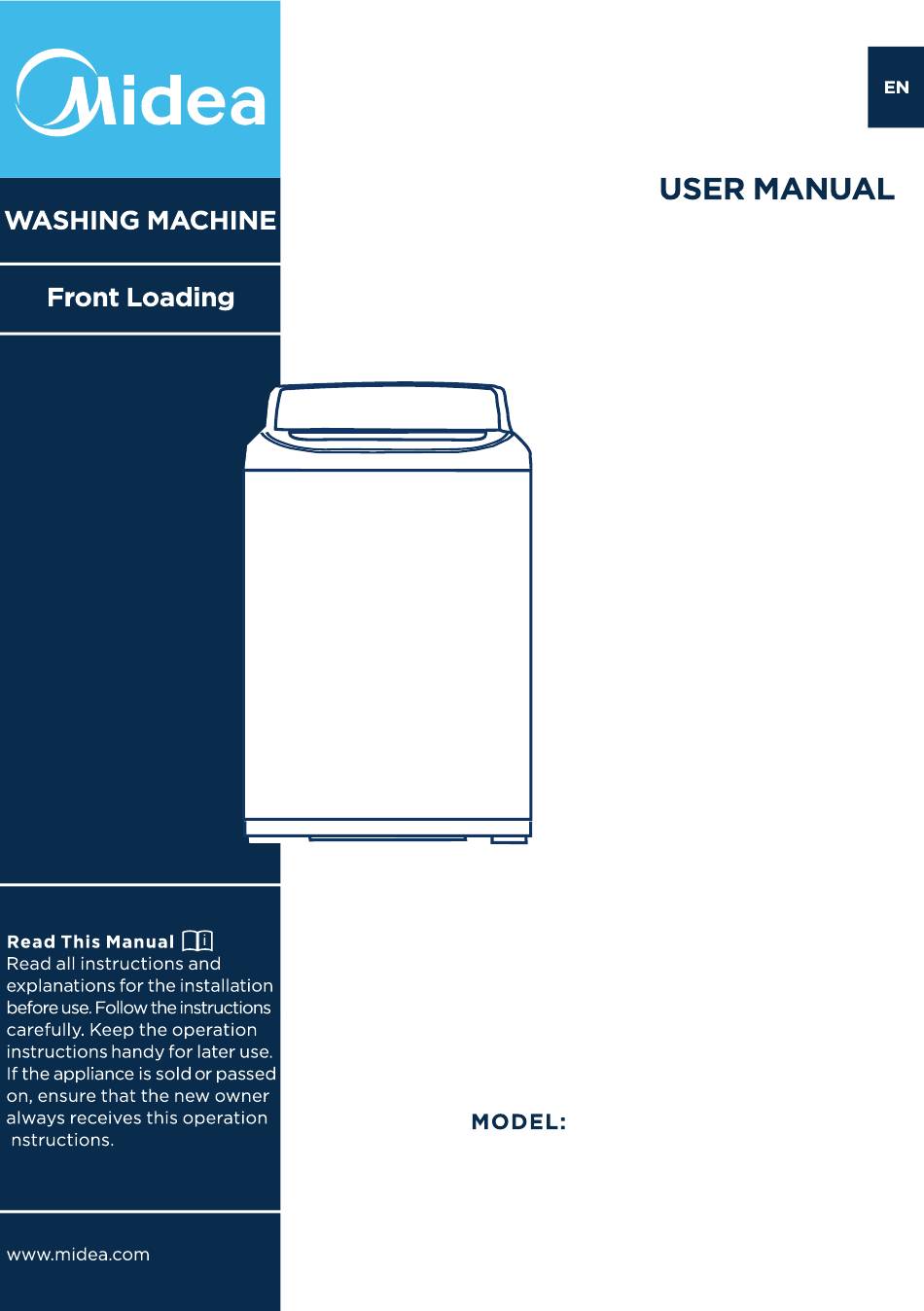

- Page 1 MA500W180/G...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ............ INSTALLATION Product description ..........Packing the washing machine ........Unpacking the washing machine ....... Installation area ............Installation of drain hose .......... Levelling the washing machine ........Selection of tap ............Connection of inlet hose, tap and washing machine..OPERATIONS Preparation before washing........ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety instructions For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. • This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of... - Page 4 SAFETY INSTRUCTIONS Model Washing Capacity Standard Water Pressure 18.0kg MA500W180/G 0.03MPa~0.8MPa Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided. Caution!
- Page 5 SAFETY INSTRUCTIONS Warning! The electric shock! • This appliance is for indoor use only. • Do not put washing machine at humid place. • Hands shall not be inserted into running spin-dry tub . • If the spin-dry tub does not stop within 15 seconds after opening the cover, please stop using the machine and have it repaired.
- Page 6 SAFETY INSTRUCTIONS Risk to children! • EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS • Please do not close the door with excessive forces. • It is forbidden to wash carpets. Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
-
Page 9: Installation
INSTALLATION Product description Handle Control panel Powder and liquid detergent box Top lid Water inlet valve Wash·Spin barrel Power Cord Filter Holder Cabinet handle Impeller Cabinet Drain hose Adjustable foot knob Note! • The product line chart is for reference only, please refer to real product as standard. -
Page 10: Packing The Washing Machine
INSTALLATION Packing the washing machine Unpacking the washing machine Warning! • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. -
Page 11: Installation Of Drain Hose
INSTALLATION Installation of drain hose 1.Completely sleeve the drain hose over the sewer. 2.Fix and tighten it with a hoop.( As shown in the figure ) Note! • Note: The drain hose of the machine with upper drain system has already been assembled before leaving the factory. -
Page 12: Selection Of Tap
INSTALLATION Selection of tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall Clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4.Tighten clamp nut on tap and tighten... -
Page 13: Operations
OPERATIONS Preparation before washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in Open the door and... -
Page 14: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Control Panel
OPERATIONS Control panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Water Level Select a program or blank After program selection, select the water level button to the proper water level for wash. Start/Pause Press the button to start or pause the Wash Temp. - Page 16 OPERATIONS Option Water level Select water level according to clothing categories, degree of soiling and washing habits of customers, except Tub clean and Duvets. Stage selection Combination of soaking, washing, rinsing and spinning light is available. Wash Temp. Select wash temp knob to regulate the Hot, Warm, Cold water for wash. Child Lock If you want to lock all the buttons to prevent settings from being changed by children,...
-
Page 17: Personalized Setting Of Washing Program
OPERATIONS Personalized setting of washing program Customers can select washing program according to actual demand, water volume and appointment time Program Wash Temp. Water Level Start Operations of washing process Customers can set single process or combinations of rinsing and spinning freely according to demand. -
Page 18: Washing Program Table
OPERATIONS Washing program table Program are available according to the laundry type. Default Program time Whites To wash white clothes. 71min 71min Colors Suitable to wash the colorful clothes. Quick wash To wash light dirty clothes with only one rinsing cycle. 37min 53min Cotton... -
Page 19: Maintenance
MAINTENANCE Cleaning and care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. -
Page 20: Trouble Shooting
MAINTENANCE Trouble shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 21: Technical Specifications
MAINTENANCE Technical Specifications Grade of waterproof Standard Water Pressure 0.03MPa~0.8MPa IPX4 Dimension Washing Model Net Weight Rated input power Power Supply (W*D*H Capacity 52kg 220V~,50Hz MA500W180/G 640*684*1050 600W 18.0kg... - Page 22 16138000A44795...
