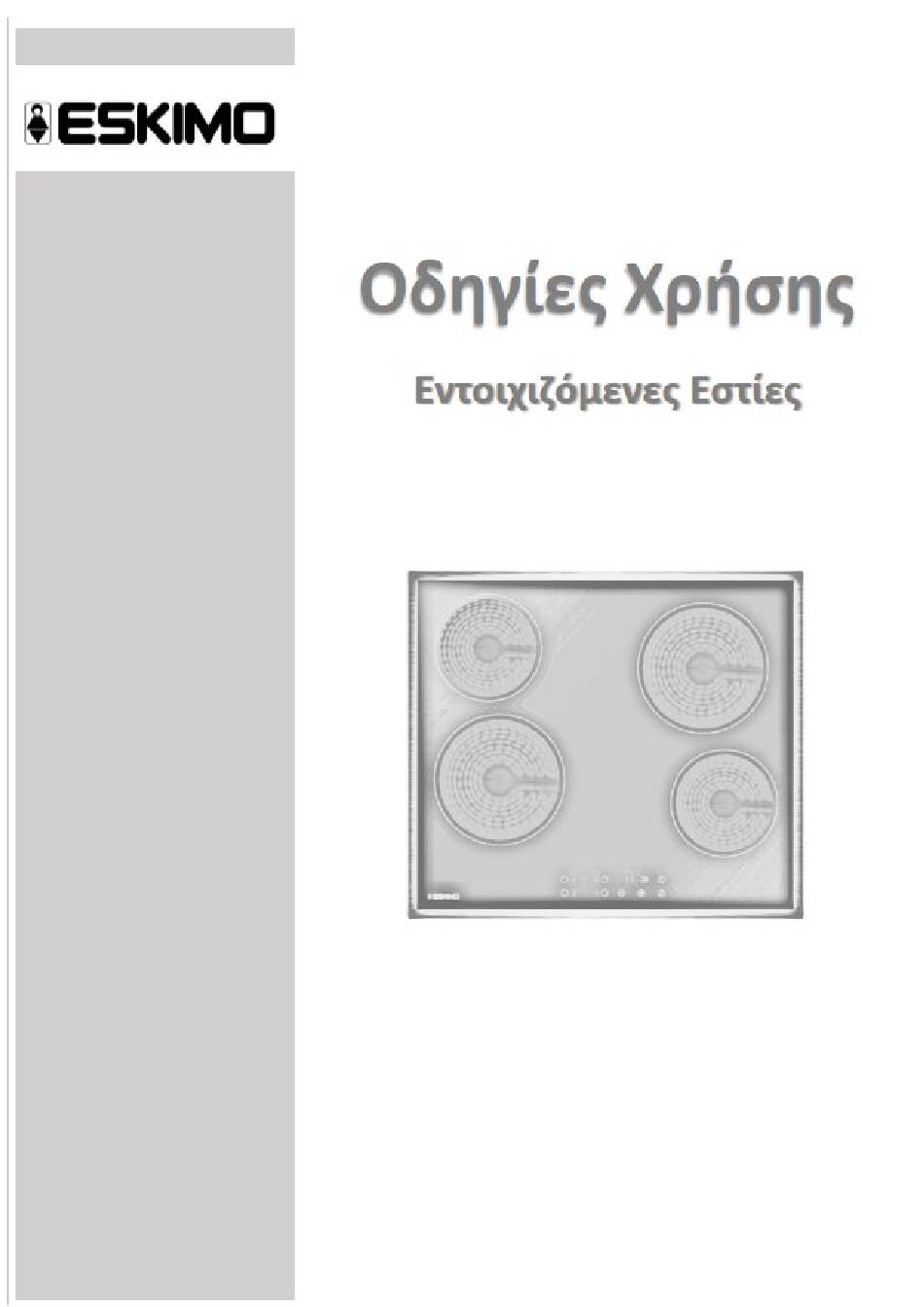

  • Page 1 ES HB3DUAL...
  • Page 3 ..................4 ........... 4 ................4 ..........4 ............ 4 ......... 4 ............... 6 ..........6 ............. 6 .......... 6 ............ 7 ......... 7 ..............9 ..................9 ................. 9 ............9 ................. 10 ......10 ..............10 ..............10 .................
  • Page 10 220-240 V ~ 50 60 Hz 4700-5700 W 590x520x55 560x490...
  • Page 11 • •...
  • Page 12 •...
  • Page 18 1 - 2 • 3 - 4 5 - 6 7 - 8...
  • Page 22 ° °C.

  • Page 25: Table Of Contents

    Content 1. Foreword ..................4 1.1 Safety Warnings ................. 4 1.2 Installation ................4 1.2.1 Electrical Shock Hazard ..........4 1.2.2 Cut Hazard ..............4 1.2.3 Important safety instructions .......... 4 1.3 Operation and maintenance ............5 1.3.1 Electrical Shock Hazard ..........5 1.3.2 Health Hazard ..............

  • Page 26: Foreword

    1. Foreword 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. Connection to a good earth wiring system is essential and mandatory.

  • Page 27: Operation And Maintenance

    Failure to install the appliance correctly could invalidate any warranty or liability claims. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 28: Health Hazard

    Switch the cooktop off at the wall before cleaning or maintenance. Failure to follow this advice may result in electrical shock or death. 1.3.2 Health Hazard This appliance complies with electromagnetic safety standards. However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be...
  • Page 29 its electromagnetic field. Never use your appliance for warming or heating the room. After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

  • Page 30: Product Introduction

    Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

  • Page 31: Working Principle

    Read this guide, taking special note of the ‘Safety Warnings’ section. Remove any protective film that may still be on your ceramic hob. 2.6 Technical Specification Cooking Hob ES HB3DUAL Cooking Zones 3 Zones Supply Voltage 220-240V~ 50Hz or 60Hz...

  • Page 32: How To Use

    Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. 3.3 How to use 3.3.1 Start cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that...

  • Page 33: Using The Double Zone Function

    Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

  • Page 34: Locking The Controls

    Note: The double loop is available only in 3# cooking zone. You can select the function from level 1 to level 9. You can active the Dual zone only when the 3# cooking zone is selected. 3.3.4 Locking the controls You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

  • Page 35: Setting The Timer To Turn One Or More Cooking Zones Off

    Touching the “-” and “+” together, the timer is cancelled, and the “--” will show in the minute display. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds Buzzer will beep for 30 seconds and the timer indicator shows “- -”...

  • Page 36: Over-Temperature Protection

    b) If you want to change the time after the timer is set, you have to start from step 1. Setting the timer to turn more than one cooking zones off a). If more than one heating zones use this function, the timer indicator will show the lowest time. (e.g.

  • Page 37: Residual Heat Warning

    3.3.7 Residual Heat Warning When the hob has been operating for some time, there will be some residual heat. The letter “ H ”appears to warn you to keep away from it. 3.3.8 Default working times Another safety feature of the hob is automatic shutdown. This occurs whenever you forget to switch off a cooking zone.

  • Page 38: Heat Settings

    3. Preheat the pan briefly and add two tablespoons of oil. 4. Cook any meat first, put it aside and keep warm. 5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.

  • Page 39: Hints And Tips

    Boilovers, melts, and Remove these immediately with a • Remove stains left by melts and hot sugary spills on fish slice, palette knife or razor sugary food or spillovers as soon the glass blade scraper suitable for Ceramic as possible. If left to cool on the glass cooktops, but beware of hot glass, they may be difficult to cooking zone surfaces:...

  • Page 40: Installation

    Some pans make This may be caused by the This is normal for cookware and crackling or clicking construction of your cookware does not indicate a fault. noises. (layers of different metals vibrating differently). 8. Installation 8.1 Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing.

  • Page 41: Before Locating The Fixing Brackets

    A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm WARNING: Ensuring Adequate Ventilation Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob.

  • Page 42: Cautions

    screw bracket Screw hole base Adjust the bracket position to suit for different work surface’s thickness. Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture) 8.3 Cautions 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service.
  • Page 43 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. 2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
  • Page 46 Η τεχνική υποστήριξη και το service των Συσκευών Eskimo έχει ανατεθεί στην εταιρεία: GENERAL SERVICE ΕΠΕ Λεάνδρου 22 Κολωνός, Αθήνα 10443 Τηλ: 210 8830666, 210 5145030 Σέρβις: service@general-service.gr Ανταλλακτικά: parts@general-service.gr www.general-service.gr F.G. EUROPE Α.Ε. Λ. Βουλιαγμένης 128 166 74 Γλυφάδα, Αθήνα...
  • Page 47 4. Οι ζημιές που προκαλούνται κατά τη μεταφορά της συσκευής δεν καλύπτονται από την εγγύηση. 5. Όλα τα προιόντα Eskimo είναι κατασκευασμένα για συνήθη οικιακή χρήση. Η εγγύηση δεν καλύπτει βλάβες που προκύπτουν σε συσκευές που χρησιμοποιούνται στα πλαίσια επαγγελματικής χρήσης.
  • Page 48 Η τεχνική υποστήριξη και το service των Συσκευών Eskimo έχει ανατεθεί στην εταιρεία: GENERAL SERVICE ΕΠΕ  Λεάνδρου 22 Κολωνός, Αθήνα 10443 : 210 8830666, 210 5145030 service@general-service.gr (για σέρβις) : parts@general-service.gr (για ανταλλακτικά) : www.general-service.gr F.G. EUROPE Α.Ε.  Λ. Βουλιαγμένης 128 166 74 Γλυφάδα, Αθήνα...
