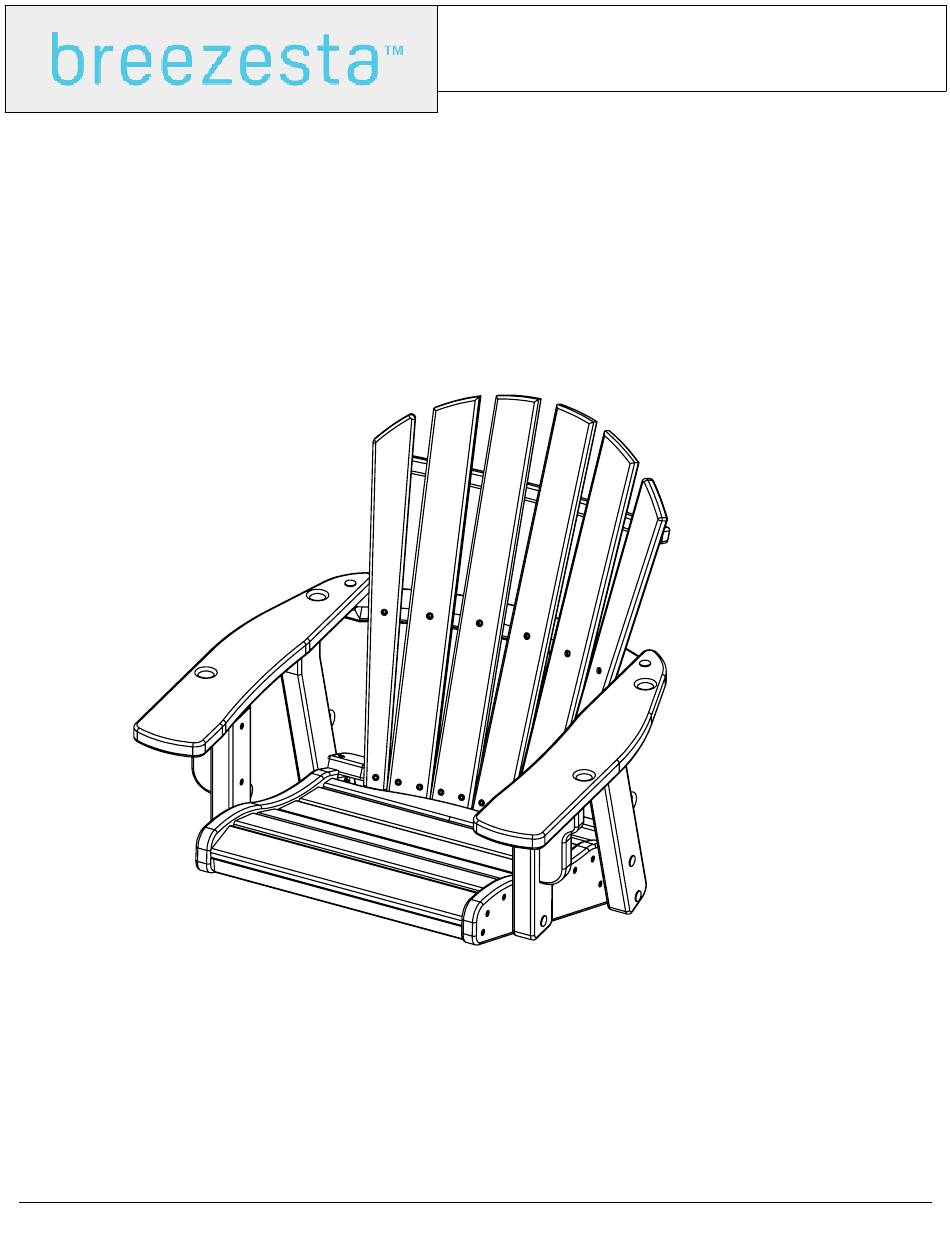

COASTAL SINGLE SWING
AD-0116
REV04-07/21
1
AD-0116 Assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the AD-0116 and is the answer not in the manual?

Questions and answers

Summary of Contents for Breezesta AD-0116

  • Page 1 COASTAL SINGLE SWING AD-0116 REV04-07/21 AD-0116 Assembly...
  • Page 2 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD QUICK LINK H-0000-QL SWING CHAIN-NOT SHOWN H-0000-CH Suggested Tools: Drill, Plastic Mallet AD-0116 Assembly...
  • Page 3 Repeat Steps 1 & 2 with Parts C, D, E, G Attach Part H to the previous assemblies using Hardware d, this step is made easier if assembly is upside down AD-0116 Assembly...
  • Page 4 Slide Part I into place and attach it using the hardware shown Use one quick link (hardware g)at each Eye Screw, and 1 to connect the lower chain to the upper chain. TIGHTEN QUICK LINK NUTS COMPLETELY USING A WRENCH AD-0116 Assembly...
