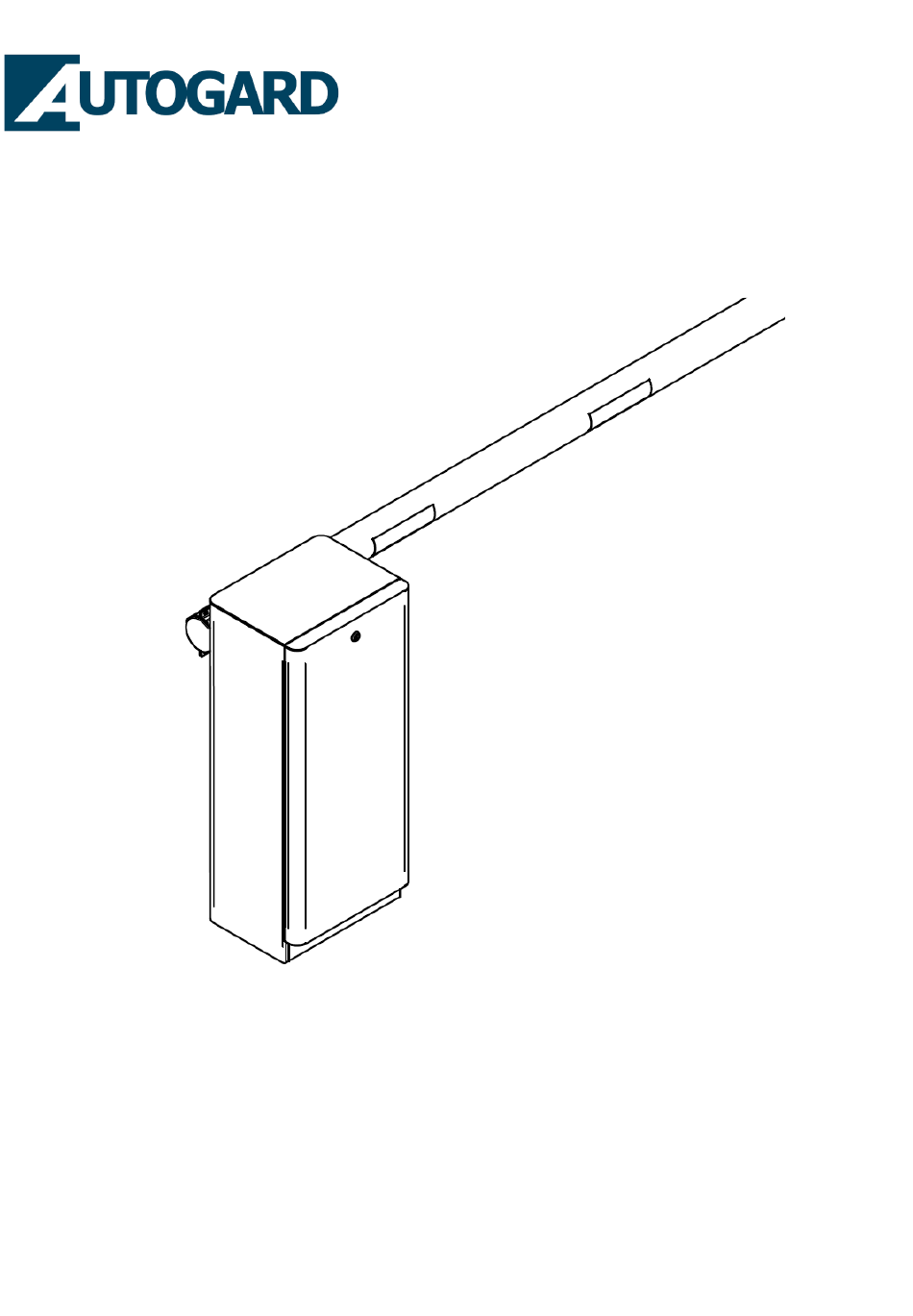

Automatic barrier AG900F

User manual

AUTOGARD spol. s r. o.

Nová 32, 664 41 Popůvky, CZ

tel.: +420 545 214 149, fax: +420 545 214 150

e-mail: autogard@autogard.cz

http://www.autogard.cz

This document is property of AUTOGARD spol. s r. o. copies and sharing to third sides without the consent of director and

author is not permitted.

Table of Contents

Need help?

Do you have a question about the AG900F and is the answer not in the manual?

Questions and answers

Summary of Contents for Autogard AG900F

Page 1 Nová 32, 664 41 Popůvky, CZ tel.: +420 545 214 149, fax: +420 545 214 150 e-mail: autogard@autogard.cz http://www.autogard.cz This document is property of AUTOGARD spol. s r. o. copies and sharing to third sides without the consent of director and author is not permitted.
Page 2: Table Of Contents
4. UNALLOWED OPERATION ...................... 3 5. IMPORTANT NOTICED ......................3 6. SPECIFICATIONS ........................4 6.1. Parameters, dimensions ........................4 6.2. Detail schematic of AG900F & common parts ..................5 7. INSTALLATION ........................... 7 7.1. Important notice ........................... 7 7.2. Concrete foundation ..........................7 7.3.
Page 3: Acknowledgement
Barriers may be operated only by competent, trained or instructed individuals. Automatic barrier AG900F is driven by a high torque three-phase electric motor and a V-belt on sufficient dimensioned worm gearbox. Control cabinet are come in powder coated steel in any RAL colour. Arm is come in aluminium with white coating.
Page 4: Specifications
Open/close speed 5 - 7 s Closing Automatic/manual Protection rating IP 43 Dimension 450x350x1070 mm Weight 130 kg +10°C - +40°C Storage temperature -20°C - +70°C Operating temperature © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 5: Detail Schematic Of Ag900F & Common Parts
Automatic barrier AG900F User manual 6.2. Detail schematic of AG900F & common parts © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 7: Installation
50mm on each side. Ensure minimum of 20 cm free space at each side of the fitting kit for easy access during installation and maintenance. © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 8: Installation Procedure
Note: Balancing is necessary repeat with every change type of the boom (Rectangular/Round profile) , disassembly accessories(e.g. STOP table, pressure slat) and change length of the boom(e.g. vehicle accident). © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 9: Fine-Tuning Boom End Positions
V-belt pulley. Rotate hand wheel in desired direction to manually open/close the barrier. Disconnect barrier from power supply before performing manual open/close! © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 10: Maintenance
Error state „E01“ Safety feature Remove error from safety feature error (SAFE) Check clamp – tighten, if necessary Wrong contact Error state „E02“ Wrong end- Change end-position switch position switch © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 11 Error state „E07“ Motor overloading overloading Fuse „F2“ Change fuse Check clamp – tighten, if necessary Wrong contact Error state „E09“ Wrong switching Change switching power supply power supply © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 12: Control Unit
Control unit AGN4.x 9.1.1. Description Automatic barrier AG900F is equipped with control unit AGN4.x microprocessor-based control unit, which evaluates input from peripherals (loop detectors, safety photocells, remote receiver etc.). A set of programming buttons allows to change settings via display.
Page 13: Inputs/Outputs Of Agn4.X
STOP Safety inputs - stop push button, stops any boom movement (N.C.) Safety inputs – permanent open (N.O.), barrier remains open for LOCK signal duration Inputs - common © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 14: Top Side - Control I/O
(ENT) enter to programming mode, that has four parts: 1) Set parameters (SET) a) Timing(PAR) b) Logical (LoG) 2) Factory settings 3) Error memory (ERR) 4) Displaying inputs and outputs (DIS) © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 15: Programmable Parameters
0 - 1 0 – not reset 1 – timer is reset by activating a safety input or opening command Electronic brake 0 - 1 0 – disabled © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 16: Factory Settings
• E06 – DOOR SWITCH.NC or BOOM CHECK.NC inputs are open • E07 – Motor overloading • E08 – not used • E09 – 24V power supply error © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 17: Example Of Possible Connection
✓ warning beacon ✓ lighting of arm ✓ remote control ✓ table STOP ✓ curtains and double curtains ✓ joint mechanics ✓ fixed or foldable tip support ✓ attendance systems © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 18: The Declaration Of Conformity
Technical parameters: 230 V AC/ 50 Hz, 750 W Operating temperature: -20 - +70°C AUTOGARD spol. s r.o., Nová 32, 664 41 Popůvky - CZ Manufacturer: Description and purpose of use: Automatic barrier is used for prevent passage of vehicles.
Page 19: Disposal Of Equipment
ČSN. Type of appliance: AG900F Production number: Periodic inspection: 100.000 cycles (1 cycle => opening + closing) or six months, whichever come first. Tested by: Signature: Name: © Autogard spol. s r.o. holder of ISO 9001:2015 certificate Ver: 1.1...
Page 20: Warranty
Automatic barrier AG900F User manual Warranty Product: Automatic barrier AG900F + accessories delivered by company AUTOGARD spol. s r.o. AUTOGARD spol. s r.o., Nová 32, 664 41 Popůvky Supplier: Done in Popůvky on ................Signature and stamp Length of warranty Manufacturer AUTOGARD spol.
