Oyster BC112B Instruction Manual

Wiggle crib - co-sleeper
Hide thumbs

Advertisement

Table of Contents

WIGGLE CRIB - CO-SLEEPER
INSTRUCTION MANUAL
SCAN TO REGISTER
YOUR WARRANTY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC112B and is the answer not in the manual?

Questions and answers

Summary of Contents for Oyster BC112B

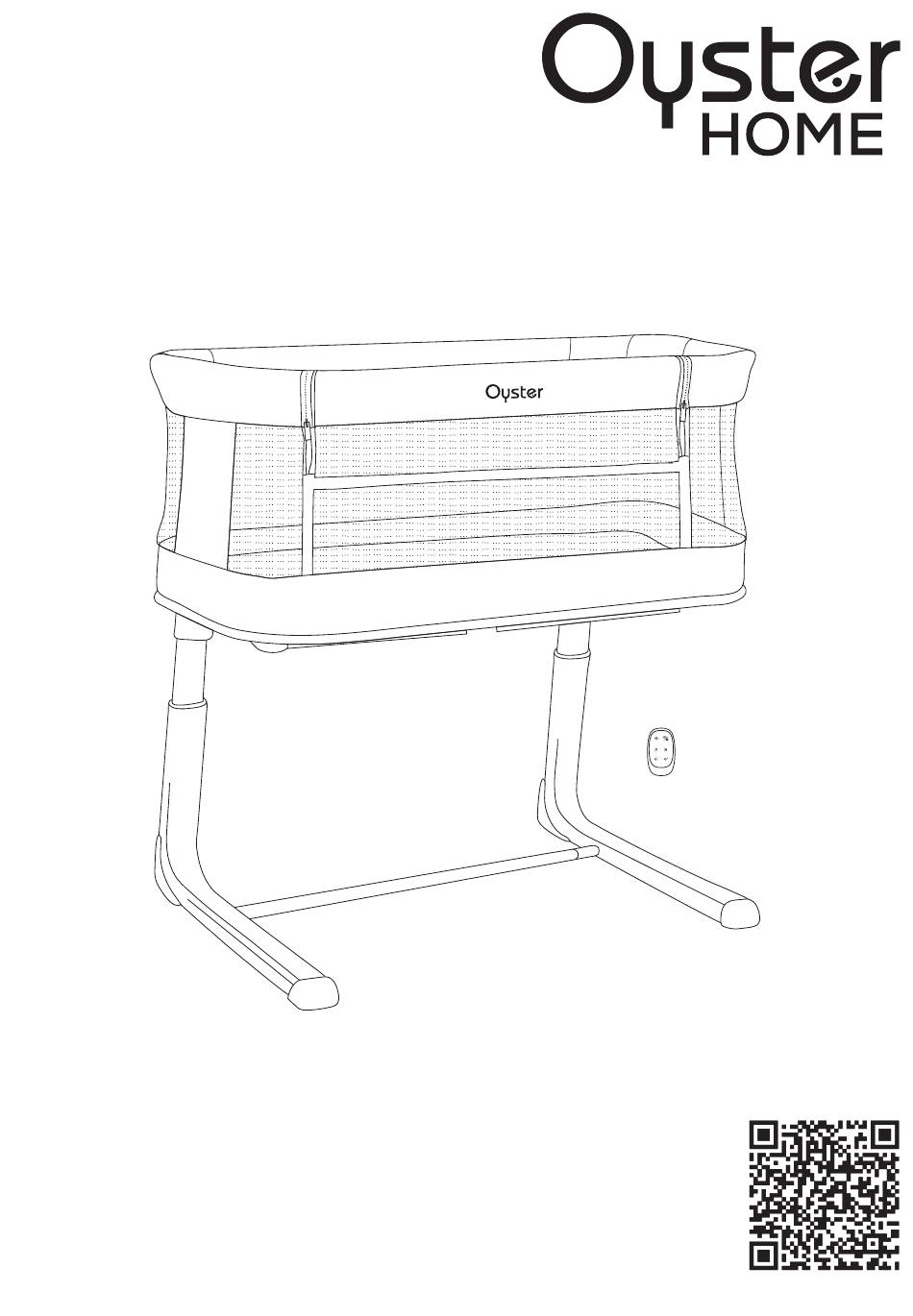

  • Page 1 WIGGLE CRIB - CO-SLEEPER INSTRUCTION MANUAL SCAN TO REGISTER YOUR WARRANTY...
  • Page 2 IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. • The Wiggle Crib Co-Sleeper is suitable for babies from birth until 6 months, 9kg, or until they are able to sit unaided or pull or push themselves up on their hands and knees. •...
  • Page 3 WARNING: • Mattress dimensions: 780 x 450 x 20mm • The maximum thickness of the crib mattress is 1inch (25mm). • Only use the mattress sold or any replacement mattresses approved by manufac- turer with the product. • The crib must always be placed on a horizontal floor. Never leave the crib on a sloping surface with the child inside.
  • Page 4 • DO NOT use the product if there is a gap between the crib and the adult bed. • Do not fill any gap between the crib and the adult bed with cushions, blankets or other objects as they may cause suffocation. •...
  • Page 5 This crib is suitable for adult beds with a height of 610-710mm. First, untie buckles B and C on the frame fixed webbing group. After untying, place buckle C on one side of the adult bed, and then put the buckles C on the side of the adult bed.
  • Page 6 WARNING: Please keep all packaging material away from babies and children, to prevent suffocation. Remote control powered by coin/button batteries WARNING: This product contains a coin/button battery. A coin/button battery can cause serious internal chemical burns if swallowed. Dispose of used batteries immediately. Keep new and used batteries away from children.
  • Page 7 COMPONENTS 1. Crib fabric 2. Mattress 3. Support frame 4. Left leg 5. Right leg 6. Leg connecting bar 7. Crib connecting tubes 8. Instruction manual 9. Remote control 10. Fastening strap x 2 11. USB lead WIGGLE CRIB - CO-SLEEPER INSTRUCTION MANUAL SCAN TO REGISTER YOUR WARRANTY...

  • Page 8: Installation

    INSTALLATION Press the spring loaded pin (on the leg connecting bar), then connect the left and right leg sets with the let connecting bar as directed by the arrows. Spring loaded pin Fig. 1 The fabric part has already been assembled with the support frame, please remove the four corners of the fabric part from the bottom tube as Fig.2 arrow showed and turn the whole crib set over.
  • Page 9 INSTALLATION (CONT.) Fig. 4 Fig. 5 Fig. 6 Put the outer net of the crib into the crib support tube as shown in the arrows of Fig.7, 8, 9 and 10 respectively, and wrap the pipe fitting. Fig.7 Fig. 8...
  • Page 10 INSTALLATION (CONT.) After the cover is completed, insert the male and female fasteners of the two safety straps into each other, as shown in Figure 9 & 10. Safety strap Fig. 9 Fig. 10 Put the foot tube group into the crib set as shown in the arrow in Figure 11 until you hear a click.
  • Page 11 Add the mattress. Mattress dimensions: 780 x 450 x 20 mm Mattress Fig. 13 Fig. 14 WARNING: • Do not use more than one mattress in the crib (crib or suspended cradle). • To avoid a fire risk, never place the product near electric heaters, gas stoves or other sources of strong heat (crib or suspended cradle).
  • Page 12 INSTRUCTIONS FOR USE How to release to drop side bar First unzip the zipper as indicated by the arrow in Figure 15, there are quick release buttons on the both end of the drop side bar, pull the quick-release button inward on both sides at the same time as the arrow show, pull and lift the bar up in the direction of the arrow as shown in Figure 16.
  • Page 13 press studs Fig. 16 Adjust the crib height: press the lift adjustment button to adjust the crib height Figure 17. there are 1-5 numbers on the side of the foot tube to indicate the height (as shown). lift lift adjustment adjustment Fig.
  • Page 14 INSTRUCTIONS FOR USE There are 1-5 numbers on the side of the foot tube to indicate the height Figure 18. 5-position height CAUTION! The numbers on the left and right connecting tube indicate the heights. The left and right height must be adjusted to the same height before use. NEVER USE the crib with two different side heights or create an incline sleep- ing position.

  • Page 15: Music Box Function

    INSTRUCTIONS FOR USE (CONT.) Music box Function The music box is located on the bottom of the crib. Operation by DC adaptor. Adaptor plug not include in this product, the adaptor head required should be 5V 2A. Connect the USB cable line with adaptor head first, directly plug the adaptor head into the 100-240v output socket of the household power supply and insert the plug into the music box adaptor socket to connect external power.
  • Page 16 INSTRUCTIONS FOR USE (CONT.) Power on/off button DC socket CAUTION! • Transformers used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used; •...
  • Page 17 INSTRUCTIONS FOR USE (CONT.) Operation by batteries The DC mode is shown in the figure: Use a screwdriver, open the battery cover at the bottom of the crib , and load 4 LR14 batteries according to the battery symbol at the bottom of the battery box. And lock the battery box by fixing screws.

  • Page 18: Remote Control

    REMOTE CONTROL Each time you press a button on the remote control, the light on the top of the remote control will flash to indicate that it is working properly. Motion Detection on/off • Turn on by short press • Turn off by long press Swing Speed/Power off •...

  • Page 19: Cleaning And Maintenance

    CLEANING AND MAINTENANCE • Crib cleaning: The fabrics on the crib cannot be removed for cleaning. If you need to clean them, use a damp cloth and mild detergent, and dry thoroughly. Do not wash directly with water. This product is not waterproof, wipe frames with a damp cloth and dry.

  • Page 20: Warranty Policy

    WARRANTY POLICY KEEP YOUR ORIGINAL RECEIPT OF PURCHASE SAFE WITH YOUR WARRANTY INFORMATION It will be required should you unfortunately find a defect. The receipt must show the date of purchase clearly. In the first instance you must contact the original place of purchase.

  • Page 21: Warranty Terms

    WARRANTY TERMS • Frame: 24 consecutive months. • Fabrics: 6 consecutive months. • The warranty only applies to the original purchaser and is non-transferable. The warranty will be invalidated in the following circumstances: • The product has not been used for its purpose other than described within the instruction manual.
  • Page 22 BabyStyle UK Ltd 36 Charles Street, Sileby, Leicestershire LE12 7RJ United Kingdom T: 01509 816444 E: info@babystyle.co.uk babystyle.co.uk ©BabyStyle UK Ltd. AW1105 21112024v4...
