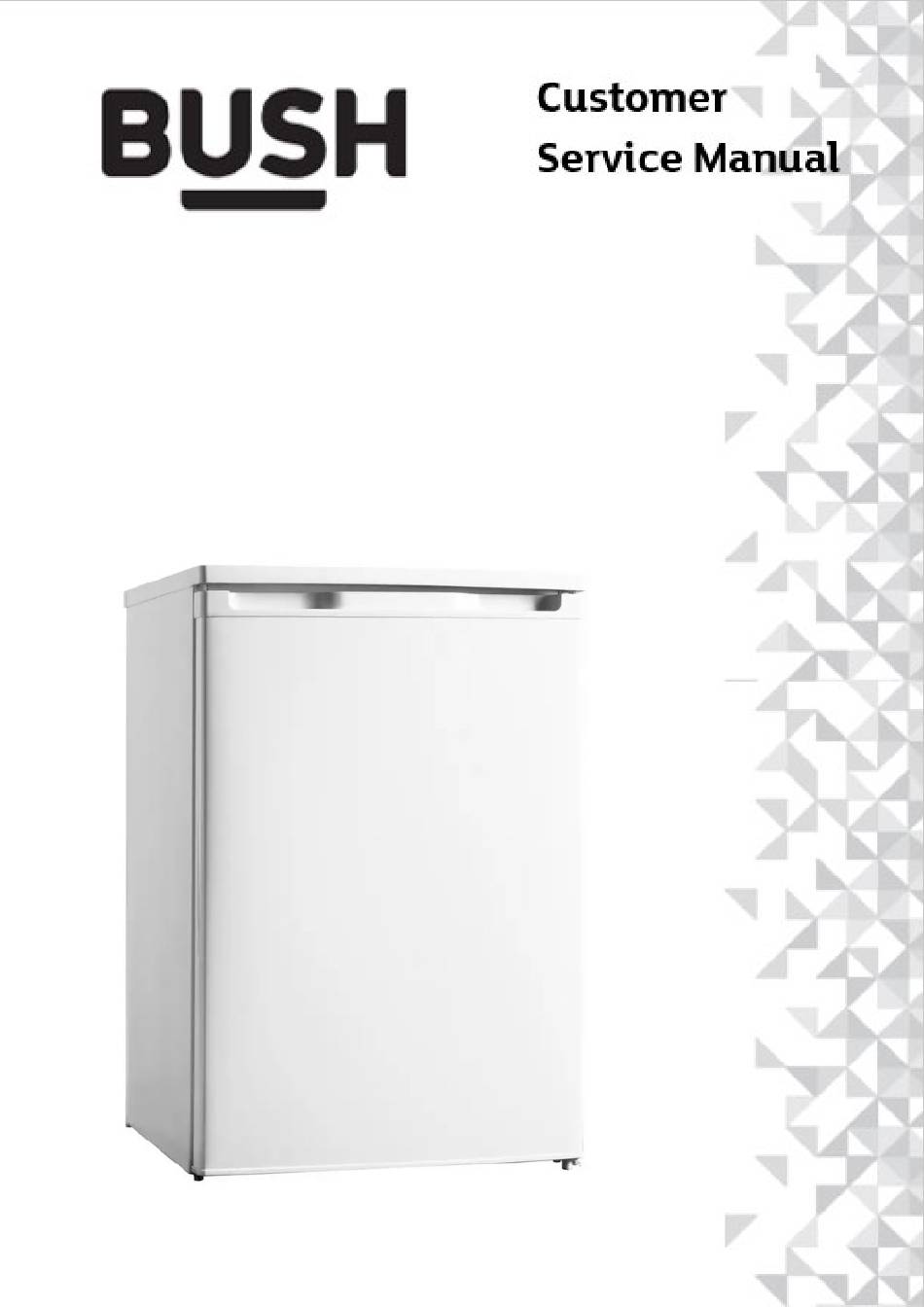

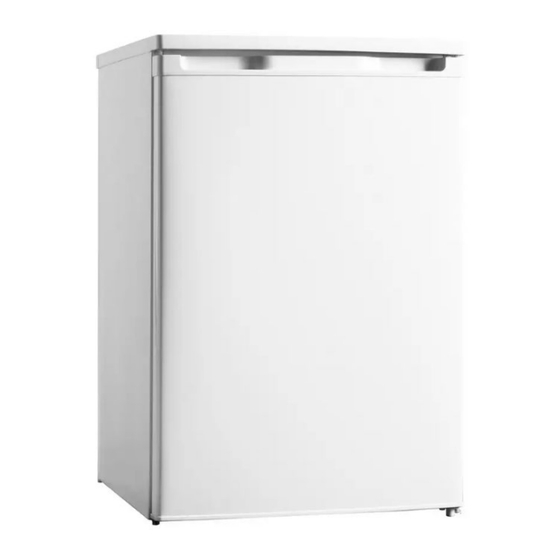

- Page 1 Undercounter Fridge MEE5585UCF Undercounter Larder MEE5585UCL Date: 04/09/2024...
-
Page 2: Table Of Contents
Customer service manual BUSH MEE5585UCF UC FRIDGE BUSH MEE5585UCL UC LARDER Contents Precautions Page 2 Tools for Disassembly and Reassembly Page 6 Replacement of Door Hinge Page 7 Replacement of Door Gasket Page 8 Replacement of Door Handle Page 9... -
Page 3: Electric Shock
Applicable models Precautions General Symbol Meaning Indicates possibility of death or serious injury of a repair technician and a person nearby through the misconducted WARNING work, or of a user by a defect of the product after the work performed by the technician. Indicates possibility of injury or physical damages* of a repair technician and a person nearby through the CAUTION... - Page 4 Applicable models Precautions General WARNING After repair, measure insulation resistance between the charging part (power cord plug) and the non-charging metallic part (ground) with an insulation resistance meter (500V). The resistance shall be 10M or more. CHECK INSULATION Failing to check the insulation resistance may cause a short RESISTANCE circuit, electric shock or other diseases to the customer.
- Page 5 Do not put inflammable into the appliance. AVOID INFLAMMABLE Applicable models Precautions General WARNING • Protective gloves and shoes are required during disassembling and assembling. • If levering or cutting operations are required, no part of the human body should be in the tool’s range of motion. •...
-
Page 6: Tools For Disassembly And Reassembly
Applicable models Tools for Disassembly and Reassembly General... -
Page 7: Replacement Of Door Hinge
Applicable models Replacement of Door Hinge General Unscrew the top cover screws. Remove the top cover. Remove the hinge cover. Unscrew screws. Remove the upper hinge. Note: Reverse previous steps to reinstall new door hinge. -
Page 8: Replacement Of Door Gasket
Applicable models Replacement of Door Gasket General Door seal is installed into door liner groove. Take the door seal ① out of door liner. Open the refrigerator door. Note: Reverse previous steps to reinstall new gasket. -
Page 9: Replacement Of Door Handle
Applicable models Replacement of Door Handle General NOT APPLICABLE... -
Page 10: Replacement Of Internal Accessories
Applicable models Replacement of Internal General Accessories Door Tray Lift up the bottle frame and take it out from the door liner of the refrigerator. Shelves Lift up the division plate with a proper force and pull it out towards yourself. Drawer The drawer is located at the bottom of refrigerating chambers. -
Page 11: Additional Support
Applicable models ADDITIONAL SUPPORT General The following parts are available for the customer to undertake repairs at their own risk. Please carefully follow the guidance given in this manual including all safety measures. • Door handles • Door hinges • Door gaskets •... - Page 12 Applicable models ADDITIONAL SUPPORT General...
