Mann MN 1014-B User Manual

Handheld pulse oximeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mann Electronics India Pvt. Ltd.
R
ME/UM/POM/01 Rev. 00

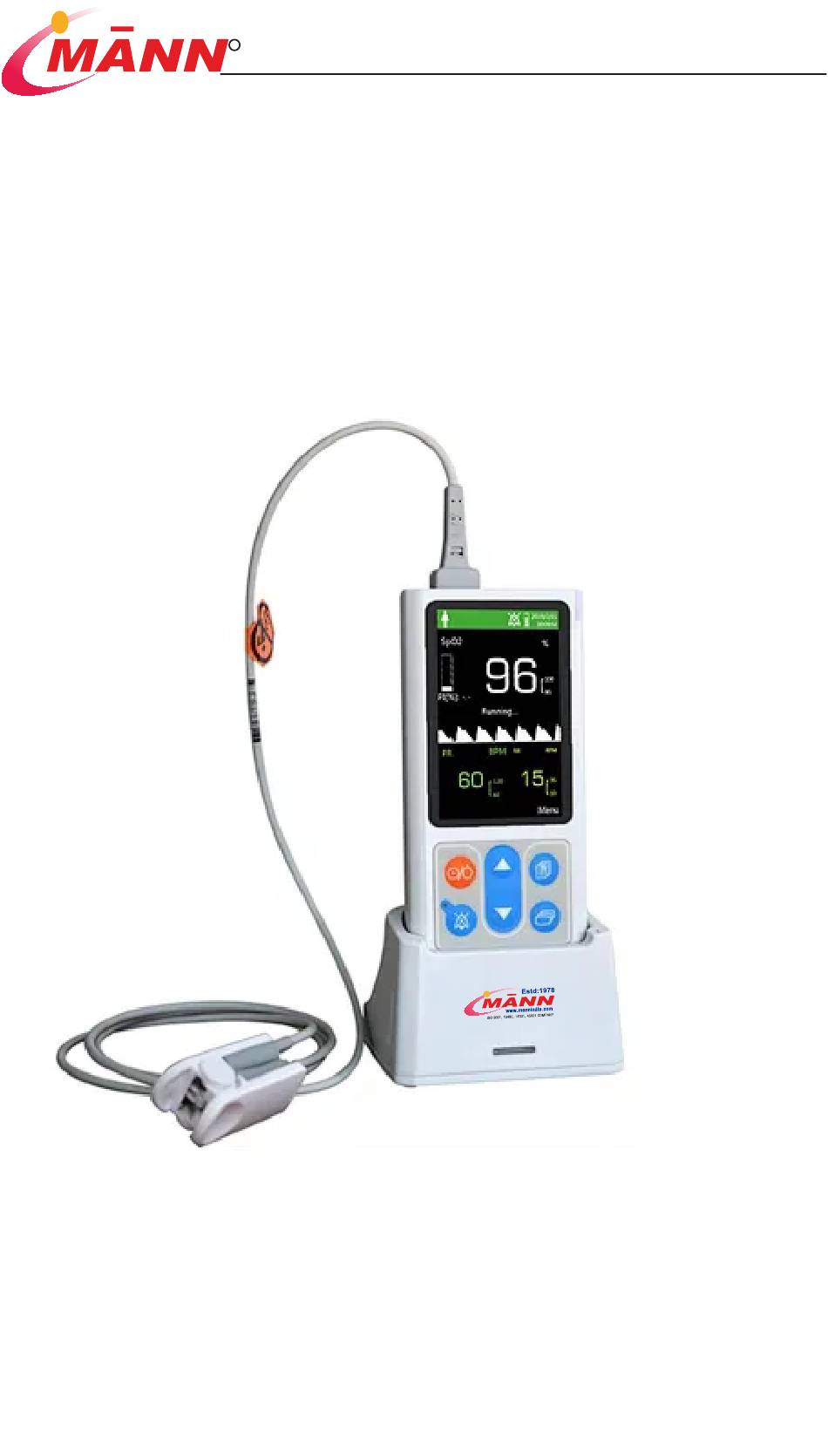

HANDHELD PULSE OXIMETER
MN 1014-B
USER MANUAL
MANN ELECTRONICS INDIA PVT. LTD.
E-55, Road No. 3, Indraprastha Industrial Area, KOTA, INDIA-324005 | Ph. : 91-0744-2425779, 2980779 | Fax : 91-0744-2980779
Mob. : +91-98875 55889 | E-mail : mannelectronics@gmail.com | sales@mannindia.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MN 1014-B and is the answer not in the manual?

Questions and answers

Related Manuals for Mann MN 1014-B

Summary of Contents for Mann MN 1014-B

  • Page 1 Mann Electronics India Pvt. Ltd. ME/UM/POM/01 Rev. 00 HANDHELD PULSE OXIMETER MN 1014-B USER MANUAL MANN ELECTRONICS INDIA PVT. LTD. E-55, Road No. 3, Indraprastha Industrial Area, KOTA, INDIA-324005 | Ph. : 91-0744-2425779, 2980779 | Fax : 91-0744-2980779 Mob. : +91-98875 55889 | E-mail : mannelectronics@gmail.com | sales@mannindia.com...

  • Page 2: Table Of Contents

    Mann Electronics India Pvt. Ltd. Table of Contents Table of Contents ..................I Warranty and Service Informa on ..............１ Proprietary No ce..................１ Limited Warranty ..................１ Service Support .................... １ Chapter 1: Introduction................３ About this Manual .................... ３ Using the Manual....................３...
  • Page 3 Mann Electronics India Pvt. Ltd. Cleaning or Disinfec ng the Sensors............. １7 Performance Considera ons ................ １7 Turning On the Monitor................18 Three Display Modes ..................19 Three Measuring Modes................２0 Turning Off the Monitor ................２0 Chapter 5: Changing the Monitor’s Settings ...........２0 Managing the Pa ent’s Informa on........
  • Page 4 Mann Electronics India Pvt. Ltd. Cleaning or Disinfec ng the Sensors............. ３0 Storage ......................３0 Troubleshoo ng.................... ３1 Chapter 9: Specifica on ................３2 Display ......................32 Indicators ...................... ３2 Alarm Volume ....................３2 Keys/User controls..................３2 Equipment Classifica on................３2 ３2...

  • Page 5: Proprietary No Ce

    Mann Electronics India Pvt. Ltd. Proprietary No ce Information contained in this document is copyrighted by the manufacturer and may not be duplicated in full or part by any person without prior written approval of the manufacturer. Its purpose is to provide the...
  • Page 6 Mann Electronics India Pvt. Ltd. device’s model and serial number ready. Keep all original packing material, including any inserts. If you need to ship the device, use only the original packaging material, including inserts. Box and inserts should be in original condition. If original shipping material in good condition is not available, it should be purchased from the manufacturer.

  • Page 7: About This Manual

    Mann Electronics India Pvt. Ltd. About this Manual Operation Manual provides installation, operation, maintenance instructions for health -care professionals and other users, trained in monitoring respiratory and cardiovascular activity. These instructions contain important information for the safe use of the product.

  • Page 8: Warning Informa On

    Mann Electronics India Pvt. Ltd. indicates the authorized The limit of stacking representative in the European layers is 3 layers Community Indicates compliance of this This way up device to the Medical Device Directive 93/42/EEC Indicates separate collection for Keep away from rain electrical and electronic equipment.
  • Page 9 Mann Electronics India Pvt. Ltd. patient assessment. WARNING! It is the operator’s responsibility to set alarm limits appropriately for each individual patient. WARNING! Prolonged use or the patient’s condition may require changing the sensor site periodically. Change sensor site and check skin integrity, circulatory status, and correct alignment at least every 4 hours.
  • Page 10 Mann Electronics India Pvt. Ltd. fluorescein may adversely affect the accuracy of the SpO 2 reading. WARNING! Any condition that restricts blood flow, such as use of a blood pressure cuff or extremes in systemic vascular resistance, may cause an inability to determine accurate pulse rate and SpO 2 readings.
  • Page 11 Mann Electronics India Pvt. Ltd. WARNING! Failure to carefully route the cable from the sensor to the monitor may allow the patient to become entangled in the cable, possibly resulting in patient strangulation. Route the cable in away that will prevent the patient from becoming entangled in the cable. If necessary, use tape to secure the cable.

  • Page 12: Chapter 2: Intended Use And General Information

    Mann Electronics India Pvt. Ltd. Intended Use This Pulse Oximeter is a low cost monitor for spot checking, continuous, noninvasive monitoring or recording of functional oxygen saturation of arterial hemoglobin (SpO2), pulse rate and pulse strength. Breath rate can be calculated from SpO2 and pulse rate.

  • Page 13: Theory Of Opera On

    Mann Electronics India Pvt. Ltd. Theory of Opera on The pulse oximeter determines SpO2 and pulse rate by passing two wavelengths of low intensity light, one red and one infrared, through body tissue to a photo detector. Information about wavelength range can be especially useful to clinicians. Wavelength information for this device can be found in the SpO2 Specifications section of this manual.

  • Page 14: Monitor Front Panel

    Mann Electronics India Pvt. Ltd. Monitor Front Pane 1. SpO2 Sensor Connector The SpO2 sensor connects here, or an extension cable can be connected between the monitor and the sensor. 2. Speaker It provides audible indication of alarm conditions, pulse tone and feedback for key-presses.
  • Page 15 Mann Electronics India Pvt. Ltd. 6. Battery level Icon This icon is displayed at the information bar and has five levels. It flashes when there is only 15 minutes left for the monitor shut down itself. 7. Alarm icon The alarm icon is displayed near the parameter value and has two states: “...

  • Page 16: Monitor Opera Ng Keys

    Mann Electronics India Pvt. Ltd. 16. Pulse sound Icon The Pulse sound icon has two states: “ ” This icon indicates that the Pulse sound function is turned on,Currently pulse sound is level 4. 17. Silence Indicator The indicator lights steadily during alarm silence.

  • Page 17: Unpacking The Monitor

    Mann Electronics India Pvt. Ltd. Menu Key Press this key to change the settings like: patient’s information, high/low alarm limits, time and date. WARNING! Do not use products, sensor, cables, or connectors that appear to be damaged. WARNING! This device must be used in conjunction with clinical signs and symptoms.

  • Page 18: A Aching The Sensor To The Pa Ent

    Mann Electronics India Pvt. Ltd. 4.2.1 Charging Li-ion ba eries The battery may discharge during prolonged storage or shipment. If the monitor have been in storage for more than 2 months, it is important to plug the AC power adapter into an AC outlet and allow the batteries to charge for approximately 30 minutes before attempting to operate the instrument.

  • Page 19: Choosing The Sensor

    Mann Electronics India Pvt. Ltd. 4. Attach the sensor to the patient. Choosing the Sensor WARNING : Before use, carefully read the sensor direction for use, including all warnings, cautions, and instruction. Choose the appropriate sensor from the following chart.

  • Page 20: Checking The Spo Sensor

    Mann Electronics India Pvt. Ltd. NOTE : Please plug the SpO2 senors on its own connectors correctly. Otherwise, the device may work abnormal. Do not use excessive force or unnecessary twisting when connecting, disconnecting, storing, or when using the sensor.

  • Page 21: Cleaning Or Disinfec Ng The Sensors

    Mann Electronics India Pvt. Ltd. Cleaning or Disinfecting the Sensor Clean or disinfect reusable sensor before attaching to a new patient. WARNING: Do not autoclave, ethylene oxide sterilize, or immerse the sensor in liquid. CAUTION: Unplug the sensor from the monitor before cleaning or disinfecting.

  • Page 22: Turning On The Monitor

    Mann Electronics India Pvt. Ltd. NOTE: Failure to take this precaution in high ambient light conditions may result in inaccurate measurements. If patient’s movement present a problem, try one or more of the following remedies to correct the problem: * Verify that the sensor is properly and securely applied * Move the sensor to a less active site.

  • Page 23: Three Display Modes

    Mann Electronics India Pvt. Ltd. finger is in the device and no operation for longer than three minutes in the Recording measuring modes. Three Display Modes There are four Display Modes of the monitor, you can switch between them by pressing the Mode Key.

  • Page 24: Three Measuring Modes

    Mann Electronics India Pvt. Ltd. Three Measuring Modes There are three Measuring Modes: Spot-Check, Continuous Monitor, Record. Their differences are compared in to below table: In any measurement mode, if you do not press any key within 3 minutes, the display will enter the power saving mode to save energy.

  • Page 25: Changing The Alarm Limits

    Mann Electronics India Pvt. Ltd. Key operation mode: 1. Press the Menu key to enter the main menu interface. 2. Press the Up/Down key to choose the “PATIENT” sub-menu , and press the the mode key to enter the ”PATIENT” sub-menu.

  • Page 26: System Se Ngs

    Mann Electronics India Pvt. Ltd. Key operation mode: 1. Press the Menu key to enter the main menu interface. 2. Press the Up/Down keys to choose the “ALARM” sub-menu, and press the the Mode key to enter the “ALARM” sub-menu.
  • Page 27 Mann Electronics India Pvt. Ltd. Key operation mode: 1. Press the Menu key to enter the main menu interface. 2. Press the Up/Down keys to choose the "SYS SET" sub-menu, and then press the Mode key to enter the "SYS SET" sub-menu..
  • Page 28 Mann Electronics India Pvt. Ltd. Key operation mode: 1. Press the Menu key to enter the main menu interface. 2. Press the Up/Down keys to choose the “RESET” , and then press the Mode key to enter the "RESET" sub-menu.

  • Page 29: Chapter 6: Alarm

    Mann Electronics India Pvt. Ltd. WARNING! In any single area (such as the intensive care unit or heart operating room), the same or similar equipment using different alarm presets is potentially dangerous. WARNING! The alarm settings of different monitoring equipment in the same area may be different in order to adapt to the condition of the patient being monitored.

  • Page 30: Alarm Sound

    Mann Electronics India Pvt. Ltd. NOTE! The overall performance of each alarm corresponds to the level of the alarm . Alarm sound The pulse oximeter distinguishes different alarm levels by the following sound methods. The alarm sound pressure level range is 45~85dB(1 meter away from the operator).

  • Page 31: Alarm Countermeasures

    Mann Electronics India Pvt. Ltd. Alarm countermeasures NOTE! When an alarm occurs, check the patient's condition first. Check the alarm information displayed on the screen, correctly identify the alarm, and deal with the alarm reasonably according to the cause of the alarm.

  • Page 32: Op Onal Accessories

    The Pulse Oximeter User and Technical Manual also contains the circuit diagrams, parts lists, and descriptions required for carrying out repairs and disposing of batteries. The Service Manual is available on request from Mann Electronics India Pvt. Ltd or your local agent.

  • Page 33: Accessories

    Mann Electronics India Pvt. Ltd. CAUTION! Do not allow isopropyl alcohol or water to enter any of the openings on the monitor. Evidence that liquid has been allowed to enter the monitor voids the warranty. Cleaning the Monitor and Sensor WARNING! Do not autoclave, ethylene oxide sterilize, or immerse the monitor in liquid.

  • Page 34: Clean The Surfaces Of The Monitor

    Mann Electronics India Pvt. Ltd. Clean the surfaces of the monitor 1. To avoid possible shock, remove the sensor from the patient, turn off the monitoring system. 2. Dampen a soft cloth with pure water or 75% medical alcohol. If the cloth becomes soaked with liquid, start again with a dry cloth.
  • Page 35 Mann Electronics India Pvt. Ltd.

  • Page 36: 9.1 Display

    Mann Electronics India Pvt. Ltd. 9.1 Display 3.5" -inch TFT LCD Resolution: 320 × 480 pixels Indicators LEDs: Work Status LED Alarm Silence LED Alarm Volume 45dBA to 85 dBA at 1 meter distance(adjustable) Keys/User controls · On/Off Key ·...

  • Page 37: Spo2

    Mann Electronics India Pvt. Ltd. Pulse Rate Pulse Rate Range 30 bpm to 250 bpm Motionless ：±2 bpm；Motion：±3 bpm ； Pulse Rate Accuracy: Low Perfusion：±2 bpm Resolution: 1 bpm Breath rate RR Range 3 rpm to 150 rpm ±3 rpm；...

  • Page 38: Power Requirements

    Mann Electronics India Pvt. Ltd. Power Requirements INPUT: AC 100 V to 220 V, 50/60 Hz, 0.6 A to Power Adapter: 0.2 A OUTPUT: DC 5 V, 2 A Ba ery Li-ion polymer 3.7 V / 4400 mAh(16.28 Wh) Battery:...
  • Page 39 Mann Electronics India Pvt. Ltd. CAUTION! This device has been tested and found to comply within the limits for medical devices to EN 60601-1-2:2014. Medical Device Directive 93/42/EEC. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation.
  • Page 40 Mann Electronics India Pvt. Ltd. IEC61000-3-2 the public low-voltage power supply network that supplies buildings used for domestic Voltage fluctuation purposes. / flicker emission IEC61000-3-3 Guidance and manufacturer's declaration - electromagnetic immunity- For all EQUIPMENT and SYSTEMS Guidance and manufacturer's declaration-electromagnetic immunity The product is intended for use in the electromagnetic environment specified below,...
  • Page 41 Mann Electronics India Pvt. Ltd.
  • Page 42 Mann Electronics India Pvt. Ltd.
