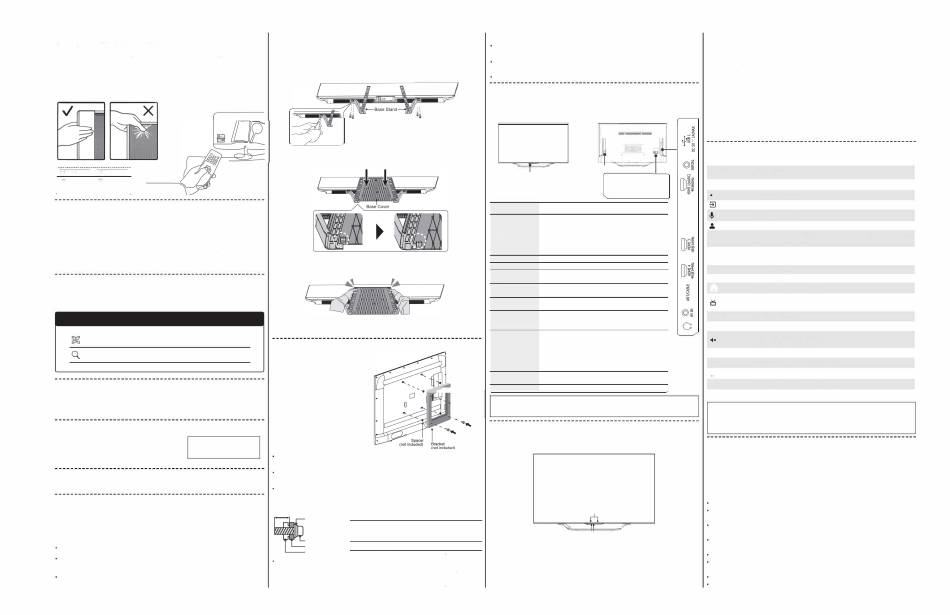

Hisense 55U7N Quick Setup Manual

Hisense
QUICK SETUPGUIDE
Before using the TV, please read this guide thoroughly and
retain it for future reference.
Ii
!155"165"175"1 185"
i
: T 4
: I
( ) ( 6 )
(M5x16) (M5x1 ) i
:
814100309
6
, __________________________________ 1
Disclaimer
Disclaimer: Subscriptions or other payments may be required to access content through some
applications. Some or all of the included or downloaded application services in this Hisense
device may not function depending on the Internet connection. local limitations of included
applications or other reasons outside of Hisense"s control. HISENSE EXPRESSLY DISCLAIMS
RESPONSIBILITY FOR ANY APPLICATION SERVICE FROM FUNCTIONING AT ANY TIME. FOR
CONTENT IN ANY APPLICATION SERVICE. FOR DISRUPTIONS OF SERVICE. LOCAL OR
REGIONAL LIMITATIONS. WARRANTIES OF TITLE, NO INFRINGEMENT, AND FOR IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. By
purchasing this device, you accept such Disclaimer without any claim on Hisense at any time.
Find what you want
This TV is equipped with this quick setup guide and embedded E-Manual (0 >
> >
Settings> System Advanced System E-Manual).
E-Manual support functions
Scan to open the E-Manual on your mobile device.
QR Code
Find the help you are looking for.
Search
This Quick Setup Guide supports the following models:
55U7N / 55U75N / 55U78N
65U7N / 65U75N / 65U78N
75U7N / 75U75N / 75U78N
What's in the box
Your Hisense TV comes with the following items:
Accessory type and
quantity may vary
• TV • 2 base stands
depending on the model.
• power cord • Base cover
• remote control • screws
Disclaimer: This Quick Setup Guide is intended as a general guideline to help you
set up your TV. Images throughout this document are for illustrative purposes only and
may differ from the actual product.
Getting started
(Wall mount kit not included)
Step 1. Attach stand or mount
Before you start using your TV, attach your TV stand or mount it on the wall.
CAUTION:
Disconnect the AC power cord before installing a stand or a wall mount bracket.
T he LED display on your TV is fragile. Make sure the TV screen is not scratched or
damaged by hard objects or from pressure.
After the installation is complete, make sure the TV is steady on a table or firmly
attached to a wall mount, before removing all protective film, if any.
Attach the TV stand
To attach the TV stand legs to your TV:
1. Carefully place your TV face-up on a clean, soft and flat surface.
2. Insert the TV base stands into the bottom slots on your TV.
3. Use the screws provided to secure each base stand tightly.
,, ,,
Screws:
Screws:
M5<16
M5x16
4. Take out the base cover and insert it into the two base stands as the illustration shows.
5. Use your hands to pinch the base cover and base stands together tightly until you
heard a snap sound.
6. Move your TV to a flat surface and you can tidy the cable into cable organizer on the
base stands.
Attach the wall mount bracket (not included)
Before you begin the third-party
manufacturer instructions, be sure to do
the following things:
- -
�
1 . Place the TV on a clean, safe and
cushioned surface.
2. Remove the TV stand if you have
already attached it.
'li>'
3. Place spacers (not included) in the
corresponding bracket holes.
CAUTION:
Follow instructions provided with the wall mount bracket. If it is not correctly mounted,
the TV may fall and cause property damage or personal injury.
When you attach the mount, be sure to use spacers (provided by the third-party
manufacturer) between the TV and the bracket.
To prevent internal damage to the TV and to ensure it is mounted securely, be sure
to use fixing screws (not included) that are 9.5 • 11.5 mm in length when measured
from the attaching surface of the rear cover.
9.5-11.5 mm
Wall mount bracket
400 x 200 (55")(139.7cm)
Wall mount hole pattern(mm) 400 x 300 (65")(165.1cm)
400 x 400 (75")(190.5cm)
Screw j•
Spacer Wall mount screw size M6
Rear cover of the TV
We do not recommend hanging the TV on a slanted wall, and
Vertical
when wall mounting make sure your television remains
surface
parallel to the wall and does not lean forward.
TV
screen
NOTE:
If installed on a ceiling or slanted wall, or the television installed is not parallel to the
wall, the television may fall and result in property damage or severe personal injury.
If you have additional questions, please contact the wall mount manufacturer or the
retailer from which you purchased the TV.
The diameter and length of the screws differ depending on the wall mount bracket model.
Step 2. Connect devices to your TV
Check to ensure that you have connected right cables for right ports securely. Loose
connections can affect the quality of the picture image and color.
TV Front TV Back
r;::
r■-■J
I
I
Power Input
• Power indicator
Yo�;i �
• Power button(Standby/Source)
AUDIO OUT
The light is white in standby mode.
Power indicator
When the TV is in standby mode, quick press the power
�
button, and TV will be turned on.
� (
When the TV is on, quick press the power button to call up
the menu:
Power button
(Standby/Source ) . Q uick press to change the selection.
• Long press to confirm your selection.
Service use only.
SERIAL
Connect an outdoor VHF/UHF antenna.
ANT/CABLE
Connect a High Definition Multimedia Interface (HDMI)
HDMI cable from an external device.
Connect a composite video cable and left-right audio cables
AVIN from an external AV device.
Connect headphones to hear audio from the TV. Head­
0
HEADPHONE/ phones with microphones are not supported.
Power off/ restart (quick press)
Reset your TV back to the factory setting (long press for 5
RESET
seconds)
Connect a USB device for browsing photos, music and
movies. The rate of speed of USB 3.0 port 10 times faster
than the USB 2.0 port.
USB NOTE: You can still plug a USB 2.0 device into a USB 3.0
port; however, the rate of speed will not be as fast. USB 3.0
devices are also backwards compatible with USB 2.0 ports.
(not included) Screw Connect an Ethernet cable to access a network or the
LAN Internet. The TV also has a wireless connectivity feature.
l
Connect an optical cable from an external digital audio system.
DIGITAL AUDIO OUT
NOTE: The image shown here is for illustrative purposes only and may be subject
-'li>,
to change. The actual number of ports and their locations may vary depending
on the model.
Step 3. Get to know controls
Control on the TV
Front view
Microphone
_JL
/
OFFaJv�
Built-in microphone control button Voice indicator
The Google Assistant can answer your questions or help you change TV configuration.
Before using this function, connect the TV to the Internet and sign in your Google
account. When you turn on the TV for the first time, you can select Set up Google TV
to sign into a Google Account by the setup guide, if you select Set up basic TV, you
can also select Set up Google TV on launcher later.
• How to use the Google Assistant function via the control button on your TV:
1. Switch the button to [ to turn on built-in microphone.
'9J]
2. Pair the remote first, press ,.e, button to select
3. Start a conversation by saying "Hey Google", and the dialog bar appears at the top
of the TV screen. At the same time, voice indicator illuminate.
4. Continue speaking, such as "What's the weather" or "volume up".
• Screenless Mode
Talk to the Google Assistant even when the screen is off.
In Screenless Mode, the Google Assistant is always available to help even when the
screen is not on. Just say "Hey Google".
T his feature will affect standby power consumption. To turn it off, go to Settings >
System > Advanced System > Screenless Mode
NOTE: T he Google Assistant and some features are available on limited country/
:;i
region/language.
Get your remote ready
The following table shows the buttons on your remote control and describes what they are for.
BUTTON DESCRIPTION
(,!) Power on/off
USB 2
DC SV cc O.SA(MAX)
Microphone / Indicator
rnii
Change TV input source
Google Assistant of TV
I.;
Accounts & Sign In or switch profile
i(l
Access the settings (direct or through the dashboard in GTV) from
0
any place in the system
@
D-pad (up/down/left/right navigation buttons)
Confirmation button
OK
Return to the previous place in the menu or app
�
ti!
Press to display the Home screen
Enter to Live tab in launcher/Display the Electronic Program
Guide (if support)/Return to Live TV*
+VOL­ Volume (up/down)
,,._CHv Channel (up/down)
Press to mute or restore sound
Hold to display Accessibility menu
MENU Press to enter Menu
Media content control function buttons
►
II
12�
Enter Channels/input numbers and special function buttons
App Quick access buttons to applications
Custom button to launch input or apps quickly
�
NOTE:
• Buttons listed here are for reference only. Actual remote control may vary depending
on model, country.
• • Pressing the button in different scenarios will have different responses.
(Batteries not included)
Insert the batteries
1. Take off the back cover to open the battery compartment of the remote control.
2. Insert two AA or AAA ( 1.5Vcc) size batteries. Make sure to match the(+) and (-)
ends of the batteries with the(+) and(·) ends indicated in the battery compartment.
3. Restore the battery compartment cover.
Important information about the remote and batteries
Discard batteries in a designated disposal area. Do not throw them into a fire.
Remove old batteries immediately to prevent them from leaking into the battery
compartment.
If you do not intend to use the remote control for a long time, then remove the
batteries.
Battery chemicals can cause a rash. If the batteries leak, clean the battery
compartment with a cloth. If chemicals touch your skin then wash it immediately.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc} or rechargeable (NiCd, NiMH, etc.}
batteries.
Do not continue using the remote if it gets warm or hot.
Contact a Service Center.
