Summary of Contents for Core Streamer Single Zone Preamplifier

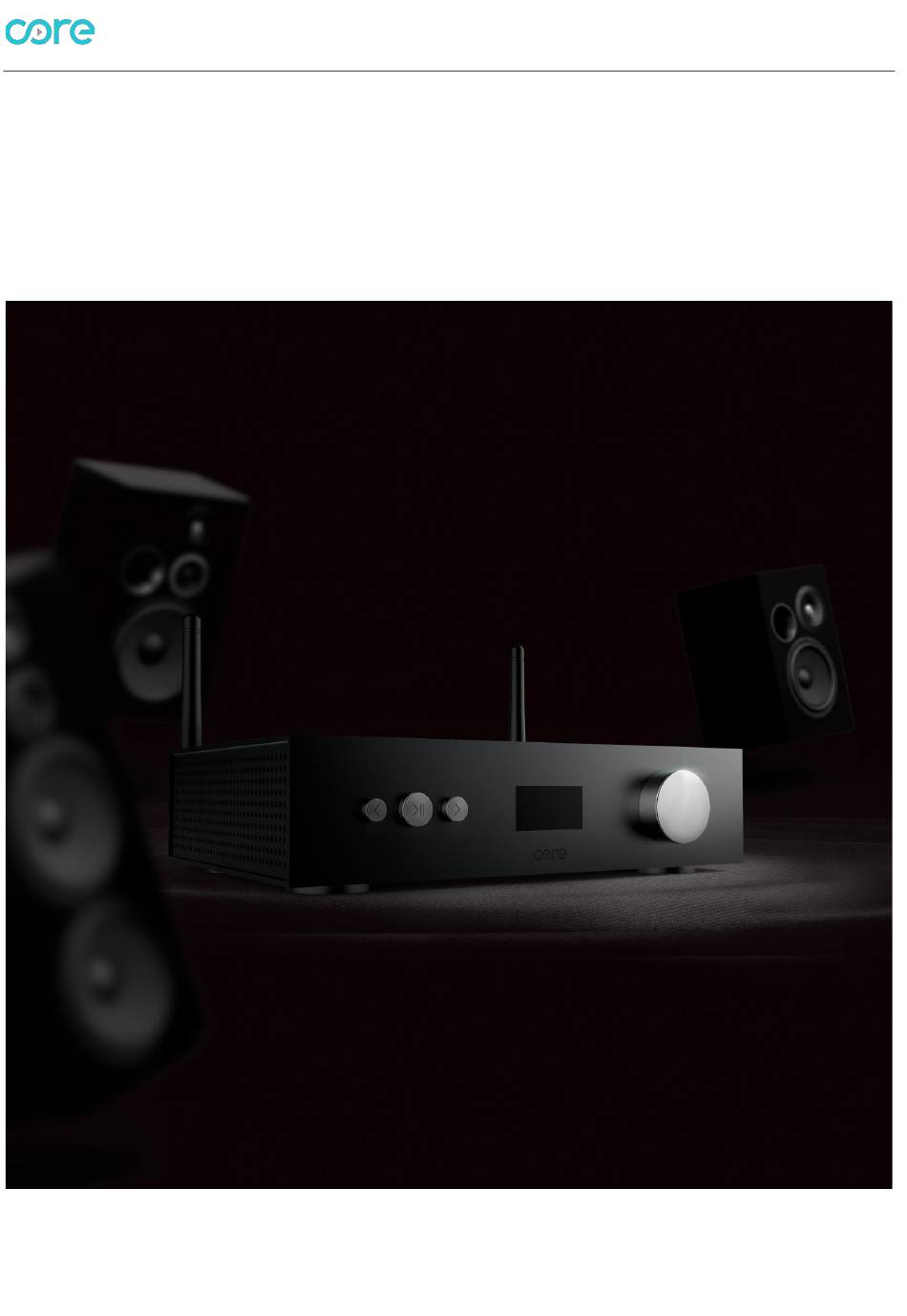

  • Page 1 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL...
  • Page 2 Connecting Wired Ethernet Network 4.12. Connecting Power Adaptor 5. CoreOS4 Integration 5.1. Audio Streamer IP Configuration 5.2. CoreOS4 Configuration 5.2.1. Adding Core Audio Streamer 5.2.2. KNX Integration 6. How To Use 6.1. CoreOS4 Touch Panel UI 6.1.1. Dashboard 6.1.2. Sources 6.1.3.

  • Page 3: Technical Specifications

    Core Multi-Room Audio Streamer offers a seamless listening experience, enabling you to stream your favorite music, podcasts, radio stations, and more to different areas of your space with ease. Core Multi-Room Audio Streamer supports Spotify connect, Tidal connect, Airplay 2, Internet Radio Bluetooth and also comes with a rich selection of analog and digital inputs.

  • Page 4: Product Overview

    MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 3. PRODUCT OVERVIEW FRONT PANEL 1. Previous Button 2. Play/Pause Button 3. Next Button 4. Display Panel: Display the current source input and other info 5. Knob: Turn to change volume and press to change source input...

  • Page 5: Back Panel

    MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL BACK PANEL 11 12 13 14 15 16 1. Wi-Fi Antenna 2. Speaker Terminals: Used to connect speakers. 3. Trigger Output: Used to turn on or off an external amplifier with a 3.5 mm cable. 4.

  • Page 6: Connecting Speakers

    1. Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it. Turn the speaker terminal counterclockwise to loosen it. 3. Insert the speaker cable’s core wire to the hilt into the speaker terminal. 4. Turn the speaker terminal clockwise to tighten it.

  • Page 7: Connecting Subwoofer

    MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL CONNECTING SUBWOOFER Connect the Subwoofer output to an input on your powered subwoofer or your subwoofer amplifier. CONNECTING LINE IN Connect any playback device with Audio out/Line out/AUX out to Line in using an RCA cable.
  • Page 8 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL CONNECTING OPTICAL IN Connect any playback device with Optical out to Optical in using an optical cable. CONNECTING COAXIAL IN Connect any playback device with Coaxial out to Coaxial in using a coaxial cable.
  • Page 9 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL CONNECTING HDMI ARC IN If TV has HDMI ARC port, there should be an ARC text beside. You can use a HDMI cable to connect it to the ARC port on the device. CONNECTING USB DISK DRIVE Plug in a FAT32 or exFAT formatted USB mass storage device containing digital music files to USB port.
  • Page 10 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL CONNECTING LINE OUT Connect to any playback device with Audio in/Line in/AUX in using an RCA cable. CONNECTING OPTICAL OUT Connect to any playback device with Optical in using an optical cable.
  • Page 11 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 4.10 CONNECTING COAXIAL OUT Connect to any playback device with Coaxial in using a coaxial cable. 4.11 CONNECTING WIRED ETHERNET NETWORK Connect wired ethernet network to a router. IP configuration is in DHCP mode by default.

  • Page 12: Connecting Power Adaptor

    MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 4.12 CONNECTING POWER ADAPTOR Plug in the power adaptor to power input. Please make sure all necessary connections are made.
  • Page 13 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 5. COREOS4 INTEGRATION AUDIO STREAMER IP CONFIGURATION Audio streamer should have a static IP. A static IP can be assigned by using Core Audio Streamer Configurator Tool. Core Audio Streamer Configurator Tool can be downloaded at https://core.com.tr/streamer/ Steps for setting static IP: 1.
  • Page 14 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL COREOS4 CONFIGURATION 5.2.1 ADDING CORE AUDIO STREAMER Follow the steps to add Core Audio Streamer into CoreOS4 Touch Panels: Please see CoreOS4 Programming Manual for Touch Panel Configuration. CoreOS4 Programming Interface Manual 1. Connect to the web interface of Touch Panel.
  • Page 15 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 6. Now go to “Accessories” section and click “Add New Accessory” button. 7. Select Driver as “Audio Steamer – (IP Address)”, name the accessory and select the room. Then click “Next” button.
  • Page 16 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 8. Select Icon and click “Next” button. 9. Click “Save” button to finish adding the accessory.
  • Page 17 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 5.2.2 KNX INTEGRATION It is possible to use CoreOS4 Touch Panels as a KNX Gateway for Core Audio Streamers and CoreOS4 Touch Panels provide two-way communication. CoreOS4 Touch Panels support the following features: • Play/Pause •...
  • Page 18 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 2. Select the features that you want to use in KNX System...
  • Page 19 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 3. Fill the group addresses that have already been created in ETS program as “Write” section for command group addresses and “Read” section for status group addresses.
  • Page 20 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 4. Click “Save” button to finish adding accessory. 5. Now link the group objects of KNX devices with related group addresses.
  • Page 21 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL...
  • Page 22 6. HOW TO USE COREOS4 TOUCH PANEL UI It is possible to control Core Audio Streamer via CoreOS4 Touch Panels. You can pause the music, change the volume, skip to next song, change the source and more. To control a Core Audio Streamer, select the accessory.
  • Page 23 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 6.1.1 DASHBOARD On the dashboard menu, the played music can be controlled. 1. Album cover 2. Song name 3. Artist name and Album name 4. Source 5. Repeat/No Repeat 6. Previous song 7. Play/Pause 8. Next song 9.
  • Page 24 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 6.1.2 SOURCES It is possible to change the source and display current source on sources menu. To change the source, click on source button 6.1.3 PRESETS It is possible to add favorite playlists to presets so whenever it is wanted, those presets can be called on Touch Panel or via KNX devices.
  • Page 25 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 6.1.4 ZONES It is possible to group multiple rooms and zones on Zones menu to play the same music in sync. To add a room to multiroom function, go to zones menu on master zone and select the zones you want to add.
  • Page 26 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 1. Shows the master room and how many slave rooms are added. 2. Group Volume. Affects to all zones volume. 3. Individual room volume control 4. Master icon 5. Slave icon 6. Connect/disconnect button Slave Audio Streamer: When an Audio Streamer is set to slave, a connected icon is shown on the accessory.
  • Page 27 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL All controls (except volume control) on a slave audio streamer accessory become passive. To disconnect the room from multiroom function just click on disconnect button. 1. Shows the master room which the audio streamer is connected. 2.

  • Page 28: Spotify Connect

    MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL SPOTIFY CONNECT To stream music from Spotify app: 1. Connect your mobile device to the same network with Core Audio Streamers. 2. Open Spotify App on your mobile device. 3. Select a song and click on available devices.
  • Page 29 2. Turn on Bluetooth on your mobile device. 3. Find Core Audio Streamer and click to connect. 4. When connected, play music. 6.5 HDMI ARC Switch the source to HDMI Arc to connect Core Audio Streamer to any device with HDMI Arc out.
  • Page 30 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 6.6 OPTICAL IN Switch the source to Optical In to connect Core Audio Streamer to any device with optical out. Core Audio Streamer supports only stereo audio codecs. When using optical in connection, select PCM type for digital audio for the devices with optical out.
  • Page 31 MULTI-ROOM AUDIO STREAMER INSTALLATION MANUAL 6.8 COAXIAL IN Switch the source to Coaxial In to connect Core Audio Streamer to any device with coaxial out. 6.9 USB Switch the source to USB to play music from a USB disk drive.
