Summary of Contents for Alesis Drums NITRO AMP

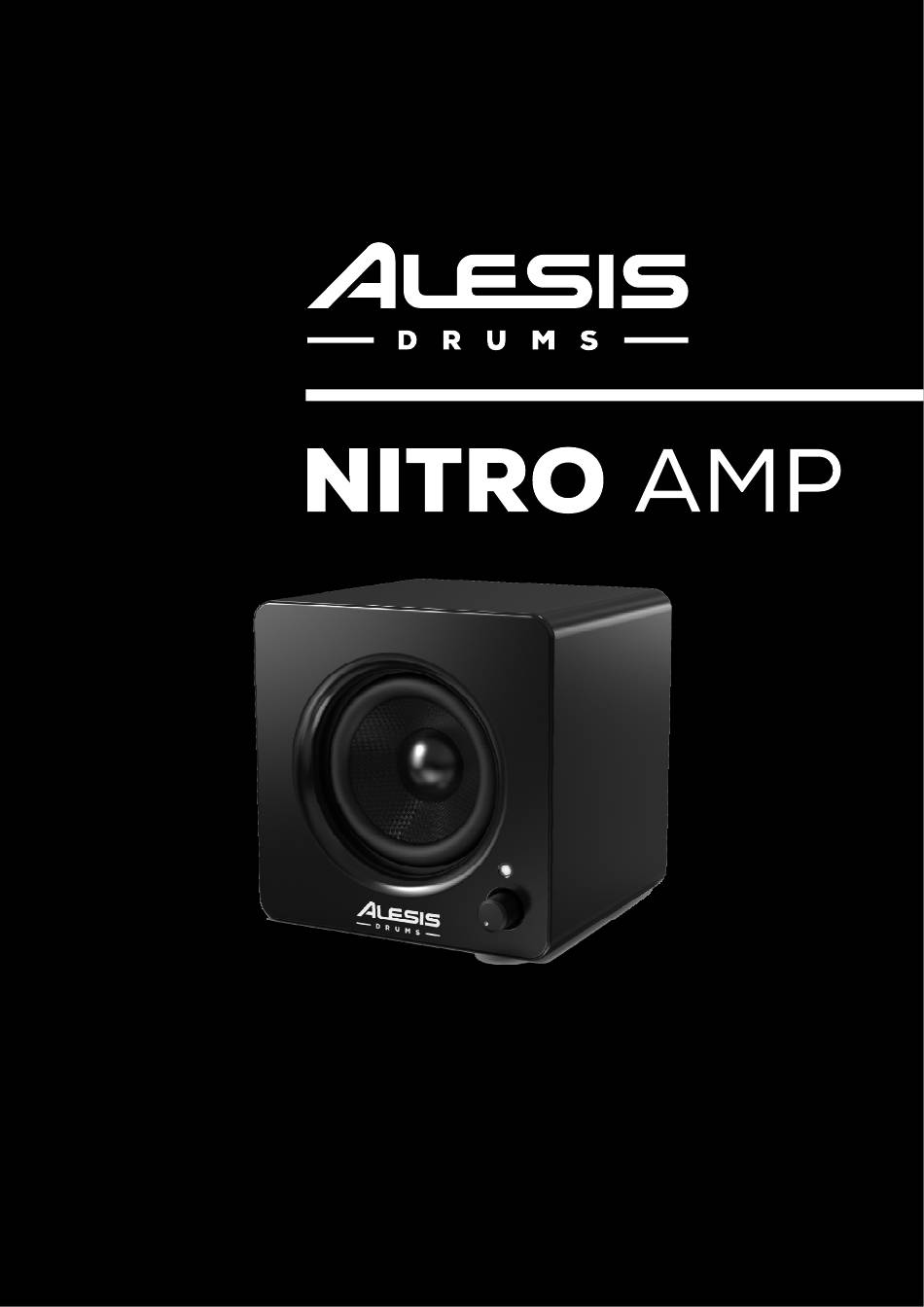

- Page 1 User Guide v1.1...
-
Page 2: (1.1) Box Contents
(1.0) Introduction (1.1) Box Contents Nitro Amp External Power Supply (DC 18V, 2.0 A; center-positive) Rack Mount Kit: 1/4" (6.35 mm) TRS Cable [5 ft. (1.5 m)] • Rack Clamp Quickstart Guide • Safety & Warranty Manual Threaded Nut •... - Page 3 3. Place Nitro Amp so that the hole at the 4. Gently screw in Nitro Amp onto the rack bottom of the speaker is in line with the mount arm until it is secure. Do not over threads at the top of the rack mount arm.
- Page 4 Connect to the output labeled MONO where applicable. 7. Use the included external power supply to connect Nitro Amp to a power outlet. 8. Turn the VOLUME / POWER KNOB to power on Nitro Amp and adjust the volume to your liking.
- Page 5 1/4" (6.35 mm) TRS cable. This input can accept balanced (TRS) or unbalanced (TS) audio inputs. E. Power Input Insert the included external power supply here and connect it to a power outlet to power Nitro Amp. Use the VOLUME/POWER KNOB to turn the speaker on and off.
- Page 6 (4.0) Appendix (4.1) Technical Specifications Speaker 3” full-range composite driver Output Power 70 W (peak) Max SPL 98 dB Frequency Response 120 Hz – 18 kHz Input 1/4" (6.35 mm) TRS balanced/unbalanced Power DC 18V, 2.0 A; center-positive Rack Clamps Large Rack Clamp for Ø37.5 mm Nitro Pro Tube Small Rack Clamp for Ø28.0 mm Nitro Max Tube Dimensions...
- Page 7 alesis.com...
