Deprag D52 User Manual

Dental milling machine
Hide thumbs

Advertisement

Table of Contents

DENTAL MILLING MACHINE
USER'S MANUAL
2.0 version
1 / 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Deprag D52

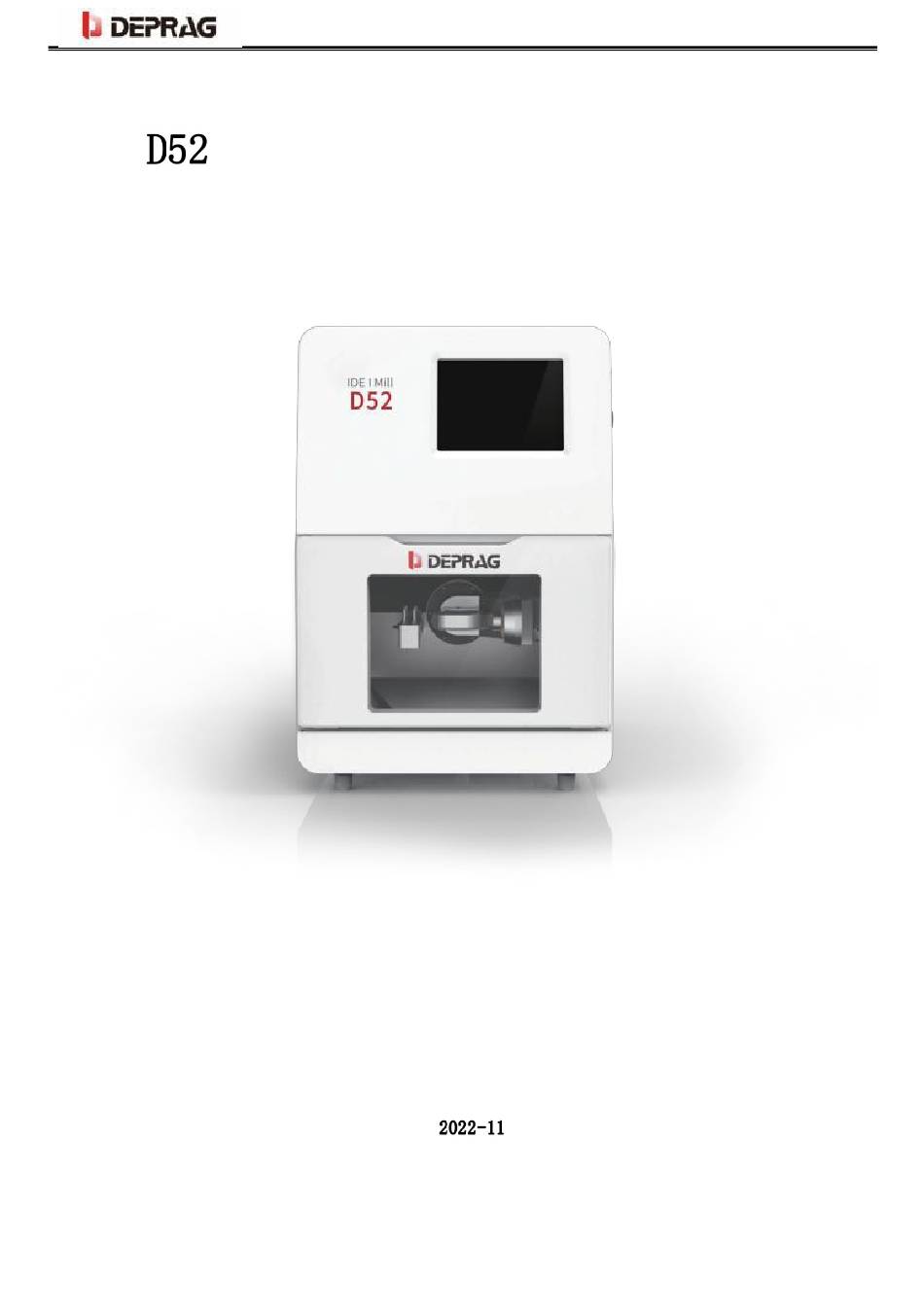

  • Page 1 DENTAL MILLING MACHINE USER’S MANUAL 2.0 version 1 / 24...
  • Page 2 1.Mill machine description ................................2 2 .Installation and adjustment of the mill machine .......................... 4 3.Machine operation ..................................7 4. Panel interfaces explanation ................................8 5.Axis Calibration ....................................17 6.Daily use instructions ..................................22 1.Mill machine description 1.1 Safety instruction A. Before operate the mill machine, please read through carefully the following safety instructions. B.
  • Page 3 Maximum ： +30º~-90° ， ： ± 360° axis axis rotation axis Tool shank 4mm/6mm ( Optional) diameter Tool QTY Process mode Dry cut Material Zirconia 、Composite 、wax、PMMA、Cobalt chromium suitable 1.3 Ports ① Machine interface panel Ports located at bottom left rear of the machine Explanation: From left to right, top to bottom: Presents the current air pressure...

  • Page 4: Connect The Vacuum Cleaner

    G. INLET: Cool the spindle inlet water. H. PROBE: Automatic calibration interface I. CN： air source access port J. CHILLER: Refrigerator interface K. Other ports are spare ports and do not need to be connected. 2.Installation and adjustment of the mill machine 2.1Machine stand required 2.
  • Page 5 2 .2 . 2 The connect of automatic start- stop line ( Customers bring their own vacuum cleaners and need to automatically control the start and stop) The definition of the device side is as follows, if there is any discrepancy, please consult the manufacturer. 2.3 Connect the spindle water cooler 2.3.
  • Page 6 2 .3.4 After filling the coolant, turn on the power button of the water cooler. 2.4 Connect to the outer air pressure 2.4. 1 The compressed gas used by the machine should be dried and should not contain moisture, otherwise it will burn the spindle.

  • Page 7: Machine Operation

    2 .6. 1The machine lights work normally, and the fans on the back of the machine work normally 2.6.2 The D52 starts up fine 2 .6.3 Confirm that there is no foreign matter stuck on the AB axis. 2. 6 .4 Click the " Home" button, and check whether the interface shows that the system is normal after returning to zero.
  • Page 8 4.1 homepage introduce(Mainly introduce the operation of Permission 2 .Permission 2 includes the operations of permission 1 4. 1. 1 homepage introduce ※DEPRAG： Press the logo on the top left, input the pass code to enter into higher permission ※Tool：...
  • Page 9 ※Breakpoint process： When the machine is stopped and reset, press the Breakpoint Processing button, and the program can continue to be processed after the previously disconnected program line. ※Start up： Start the programs and files in the schedule list. ※Pause： Click to suspend equipment processing ※...
  • Page 10 4.1.5 Operating line number and breakpoint line number display 4.1.6 Feed rate progress bar control 4.2 Coordinate setting page introduction 4.2. 1 Click the “Manual” button to enter the coordinate setting page 10 / 24...
  • Page 11 ※Return auto： Click this button to return to the home page ※Coordinate: Click this button to enter the Coordinate Settings page ※Other： Entering the manual page, you can perform manual tool change, tool information change, language switch, etc ※Tool life： Click to enter into the page of setting tool life.

  • Page 12: Other Page

    ※Reset： For data reset to factory settings. 4.2.2 Axis coordinate display window 4 . 2 . 3 Axis calibration parameter setting window, input various values corresponding to the picture 4.3 Other Page 12 / 24...
  • Page 13 4 .3. 1 Manual tool change and manual resetting of spindle tool number. When the TNS key is gray, click on any number between T01 - T1 0 , the device will execute tool change action and grab the selected tool; when TNS is red highlighted, click on any number between T01 - T10 to change the spindle current number.
  • Page 14 ※Calibration :Automatic calibration button 4.4Tool life manual setting page, you can set the tool life and OPEN/OFF the standby (standby tool library) function. ※Save： Saves the current tool life setting. ※StandbyOFF： This button for setting the Standby tool library to open and close. ※Tool life enable：...

  • Page 15: System Information Page

    ※Read： Read the current point coordinates ( for debugging). ※Save： Save the modified parameters. 4.6 System Information Page 15 / 24...
  • Page 16 ※SYS update： 。 System update button ，For system updates and upgrades (The manufacturer guides the use) ※SYS backup： Data backup button ，For system data backup (The manufacturer guides the use) 。 ※FIR update： 。 Firmware upgrade button (The manufacturer guides the use) ※...

  • Page 17: Axis Calibration

    5.Axis Calibration 5.1Tool information confirmation Zirconia Ball Head Z*R1.0*16*4D*50L Zirconia Ball Head Z*R0.5*16*4D*50L Zirconia Ball Head Z*R0.3*8*4D*50L Zirconia Flat Head Z*D1.5*20*4D*50L Zirconia Ball Head Z*R0.15*3*4D*50L Composite Ball Head resin P*R1.0*19H*4D*50L Composite Ball Head resin P*R0.5*19H*4D*50L Composite Ball Head resin P*R0.3*10H*4D*50L Composite Flat Head resin...
  • Page 18 5 .3.2 Find the calibration file "D52- Calibration Program", click to select this file, click the "Loading" button, 5 . 3.3. Find the "D52 calibration program" in the left local file, click the "Loading" button, and then click the "start up" button in the main interface 5 .3.4 After the cutting is finished, remove the material disc and use the grinding tool to grind down the two...
  • Page 19 Enter the “ coordinate” to input the record value Click the " Manual" button, and then click the " Coordinate" button to enter the calibration interface 5 ,4.2 Enter the measured values of B, C, F, D, E and G into the corresponding dialog box on the Amend Setting page 5 .4.3 Click the "Amend"...
  • Page 20 5 .5.2 Click on the "Manual" button ，Click on "Axiscali" again to enter the calibration interface 5 .5 .2 Click on the " pration prepara" button. The mill machine spindle moves to the specified position 5.5.3 Hold the tool on the spindle of the cutting machine with the left hand when the spindle is stopped ，Click on the "Tool I / O"...
  • Page 21 5.5.4 Clean and dry the AB axis of the cutting machine without dust or debris residues. ，Install the auto-calibration jig onto the A- axis bracket 5 . 5.5 Click on the "Calibration" button ，The mill machine performs the automatic calibration process of the axis. The whole process takes about 2 minutes.

  • Page 22: Daily Use Instructions

    the automatic calibration module in the box. ( The calibration side head is a precision part and needs to be kept well to avoid measurement errors) 5.6 .Calibration confirmation instructions (important) 5 .6. 1 To confirm that the machine coordinates have been calibrated back to within the standard range, it is 2 2necessary to cut the calibration block again and measure the values of B, C, F, D, E, and G.

  • Page 23: Tool Change

    6. 1. 2 According to the typesetting software template, check whether the bur corresponding to the tool number in the tool magazine is correct, complete and in good condition 6. 1.3 Under "Production Management" in automatic mode, click "Plan" to add NC files ready to start processing. 6 .
  • Page 24 ① In manual mode, confirm that the tool number button shown in red is the tool to be replaced, such as the T01 button in this case. ② In manual mode, hold the tool on the spindle with your left hand, click the "Tool I/O" button on the touch screen with your right hand, release the spindle chuck, remove the old or broken tool, replace it with a new one, and click "Tool I/ O"...
