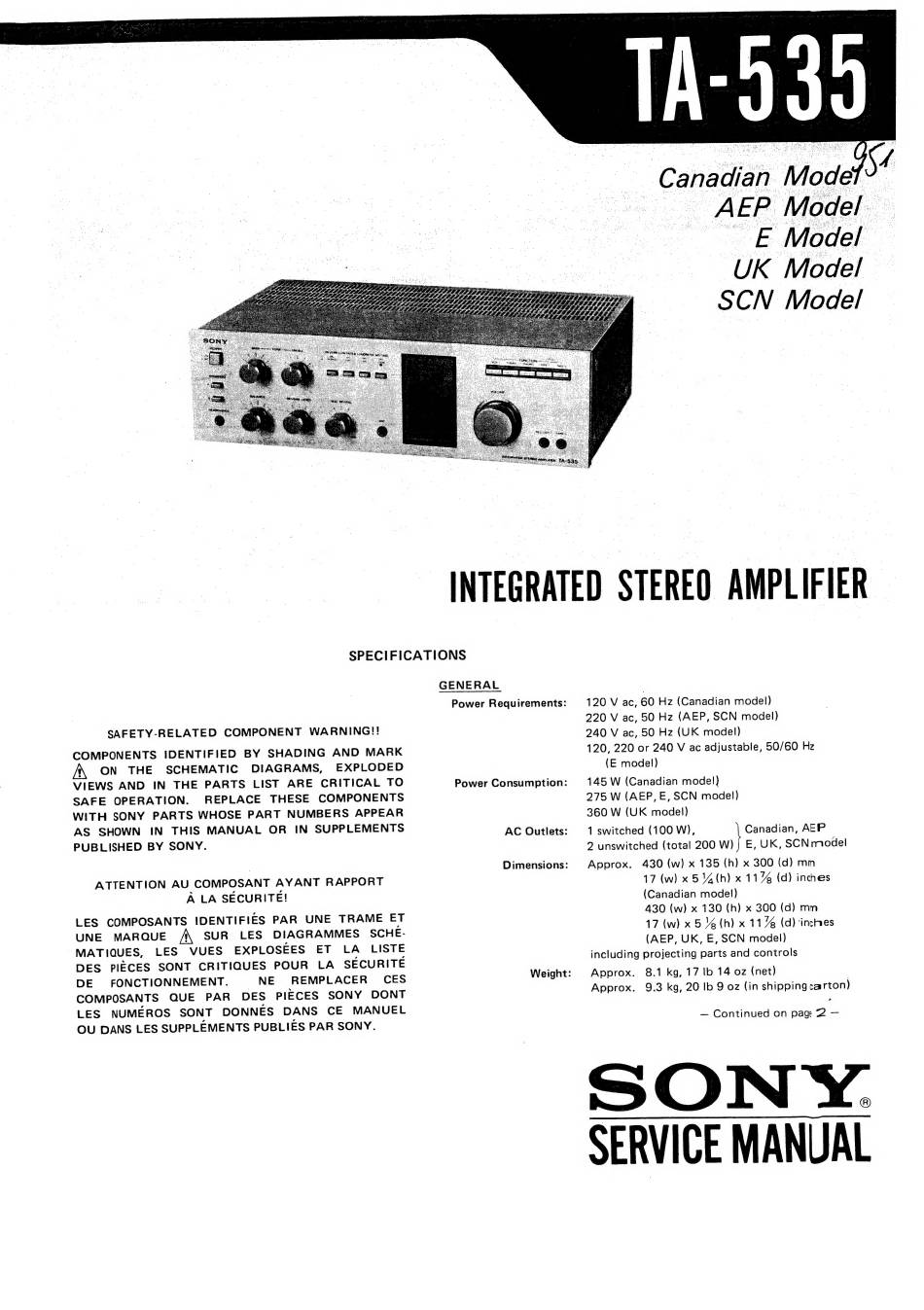

Sony TA-535 Service Manual

SCN Model
SPECIFICATIONS
GENERAL
Power Requirements:
Power Consumption:
AC Outlets:
Dimensions:
Weight:
120 V ac, 60 Hz (Canadian model)
220 V ac, 50 Hz (AEP, SCN model)
240 V ac, 50 Hz (UK model)
120, 220 or 240 V ac adjustable, 50/60 Hz
(E model)
145 W (Canadian model)
275 W (AEP, E, SCN model)
360 W (UK model)
430 (w) x 135 (h) x 300 (d) mm
17 (w) x 5 Yh) x 11% (d) inches
(Canadian mode!)
430 (w) x 130 (h) x 300 (d) mm
17 (w) x 5 %(h) x 11% (d) 'inches
(AEP, UK, E, SCN model)
including projecting parts and controls
8.1 kg, 17 Ib 14 oz (net)
9.3 kg, 20 Ib 9 oz (in shipping carton)
Approx.
Approx.
Approx.
— Continued on pag 2 —
