40kV VLF Hipot Test System with Integrated Tan Delta

HIVOLT VLF40T

USER MANUAL

Table of Contents

Need help?

Do you have a question about the VLF40T and is the answer not in the manual?

Questions and answers

Summary of Contents for hivolt VLF40T

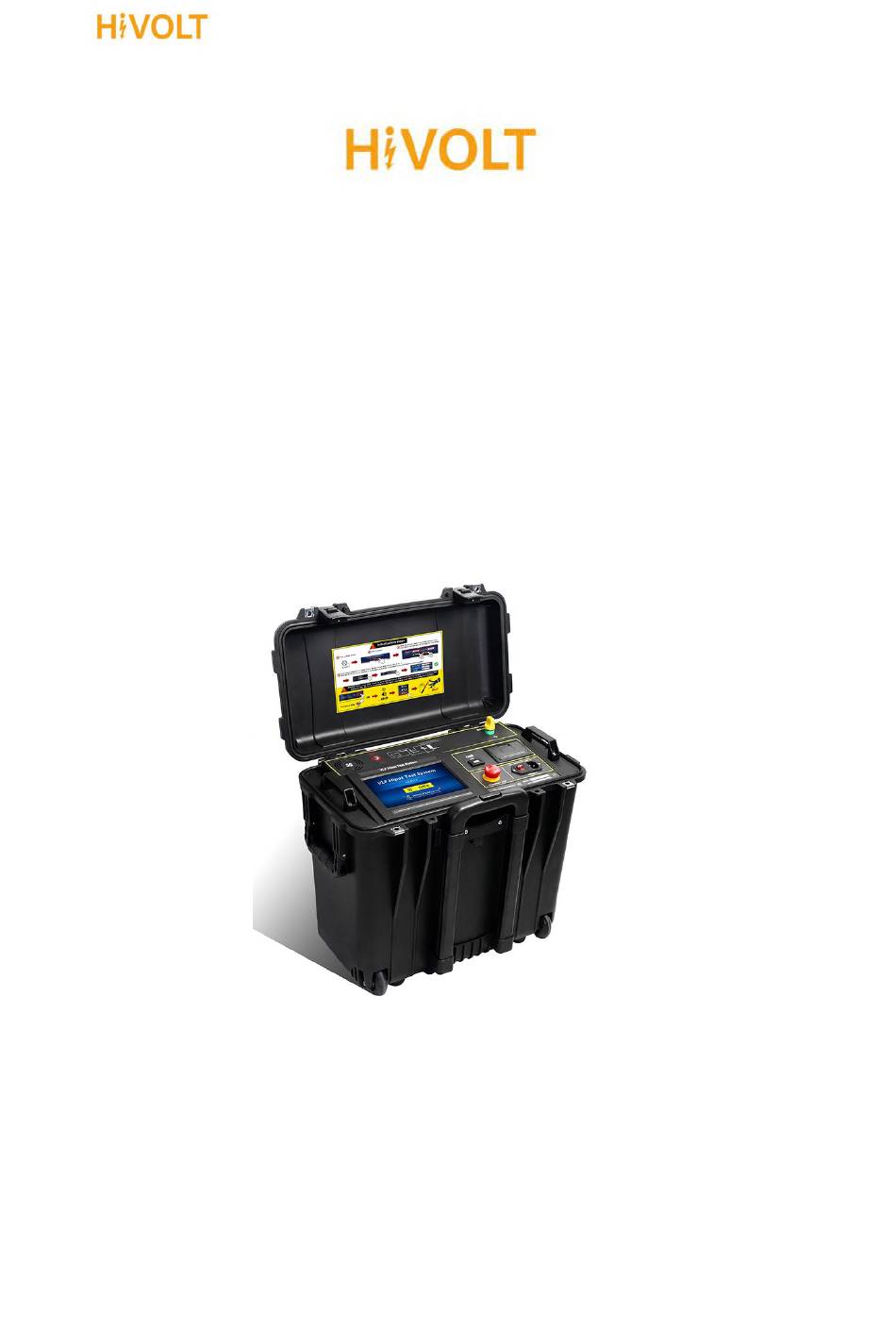

Page 1 40kV VLF Hipot Test System with Integrated Tan Delta HIVOLT VLF40T USER MANUAL...
Page 2: Important Notes
1.Important notes Safety precautions This manual contains basic information about commissioning and operating the device/system. Therefore, it must be ensured that this manual is accessible to authorised and trained operating personnel at all times. The operating personnel must read the manual carefully. The manufacturer will not accept liability for any damage to persons or materials caused by a failure to observe the safety instructions contained in this manual.
Page 3: Safety Instructions
2. Safety instructions Lifting and carrying devices The device may only be lifted and carried using the carry handles provided on the side. Other parts of the device, such as the connection cables, are unable to withstand the forces that occur when the device is lifted and could therefore break or tear off. WARNING Risk of electric shock pecial attention and safety-conscious conduct is required by measuring personnel...
Page 4: Instrument Summary
Tan Delta Diagnostics. 4 Technical description 4.1 System description The HIVOLT VLF Series of hipot test sets provide true sine wave AC output voltage for the test of high voltage cables and other capacitive loads. 4.2 Features •...
Page 5 Load rating 0.6µ@0.1Hz@32kV 6µF maximum test capacity Output voltage 0~32kV /0~40kV peak Tan delta Range 0.01×10 ~655.35×10 -3， For values ＞655.35×10 , displayed as >655.35×10 Accuracy ±1% Resolution 1x10 Range 0.001μF–10μF Capacitance Resolution 0.001μF Accuracy ±3% Range 1MΩ-65535MΩ Resistance For values ＞65535MΩ, displayed as >65535MΩ Resolution 1MΩ...
Page 6: Display And Operating Elements
5.Display and operating elements 5.1 Front panel Number Description Cooling vent For instrument cooling ① HV output indicator lamp This lamp will flash when high voltage is output ② Guard port For safety grounding. ③ Only for performing VLF Tan Delta testing. Protective grounding For protective earthing...
Page 7: Side Panel
5.2 Side Panel Number Description Application High voltage output port Serves as connection point from the device to the ⑩ HV connection lead. To connect: Screw the HV connection cable into the HV output connector and tighten. 6. Commissioning Normal connection To connect the test system to the test object, proceed as follows: 1.
Page 8: Single Connection
7 Basic operation of the test system 7.1 Welcome screen Before it is switched on with the on/off button , the device is in the 'Out of service' state. After turning on the power switch, the welcome screen will be displayed. Push "Click"...
Page 9: Working Status
POWER SUPPLY FREQ Automatic detection and display of power supply frequency RECALL DATA The stored data can be recalled STANDARD Recall STD.TD test result TIME/DATE Time and date can be set POWER SUPPLY DESC Users can see the precautions for using different power supply modes.
Page 10: Setting Measurement Parameters
8.2 Setting measurement parameters Click "Test setup" to enter the test setup screen: Item Description HIGHT VOLTAGE Click the orange arrow and type in the test voltage in the drop-down box. The test voltage to be set is derived from the rated voltage of the connected cable and the guidelines to be applied for the test (e.g.
Page 11: Starting The Test
For test objects with low capacitance, such as cables under 100 meters, a supplied standard capacitor must be connected in parallel during the test. SHIELDING CONN. In tan delta test, select "single" or "double" according to the actual test leads connection . In VLF or DC test, select "NO"...
Page 12 Description Item VOLTAGE The test voltage being applied. CURRENT Current output during test The relevant standards usually recommend a test frequency of FREQUENCY 0.1 Hz for cable tests with VLF voltage. The maximum test frequency depends on the determined cable capacity and the test voltage being applied.In order to ensure the safety of the device, the device automatically adjusts the test frequency according to the capacity of the cable and the test...
Page 13 9. Tan Delta 9.1 Application The HIVOLT VLF40T is a VLF test unit with an integrated Tan Delta measuring system. It provides a high-voltage Tan Delta measuring system suitable for testing medium-voltage electrical insulation systems such as cables (including XLPE, PE EPR, PILC, etc.), capacitors, switchgear, transformers, rotating machines, insulators and...
Page 14: Test Lead Connection
recorded and displayed on the screen. The results can be easily stored in internal memory. 9.2 Test lead connection Connect the test leads according to the test leads connection diagram displayed on the screen or the connection diagram in the user manual. The test leads connection method is the same as the VLF withstand test.
Page 15 9.3 Start the test system Turn on the power switch, click "Click" on the welcome interface, and click "Single Connection" (please refer to section 7 of this manual) 9.4 Performing Tan delta tests and diagnoses 9.4.1 Preparing and starting the test Click "Single connection"...
Page 16 The test duration to be set must be selected in accordance with the applicable guidelines (e.g. recognized standards, factory standards, customer's specifications). COMP CN According to whether the compensation capacitor is connected, click the orange arrow and select "Yes" or "No" in the drop-down box. Note：...
Page 17: Repair And Maintenance
9.4.5 Recall data To recall the test results: TD test results: Return to the main menu and click "Recall data". STD.TD test results: Return to the main menu and click "STANDARD". 10. Repair and Maintenance Maintenance Repairs and service must only be done by RAPID-TECH or authorised service departments of RAPID-TECH.
Page 18 should inform the RAPID-TECH service to resolve the problem. The instrument may only be operated when the malfunction is resolved. Behaviour in the event of continuous faults In the event of damage, irregularity or faults that cannot be rectified using the instructions in this manual, the system must be immediately taken out of service and marked accordingly.
