Summary of Contents for KoamTac SKX Series

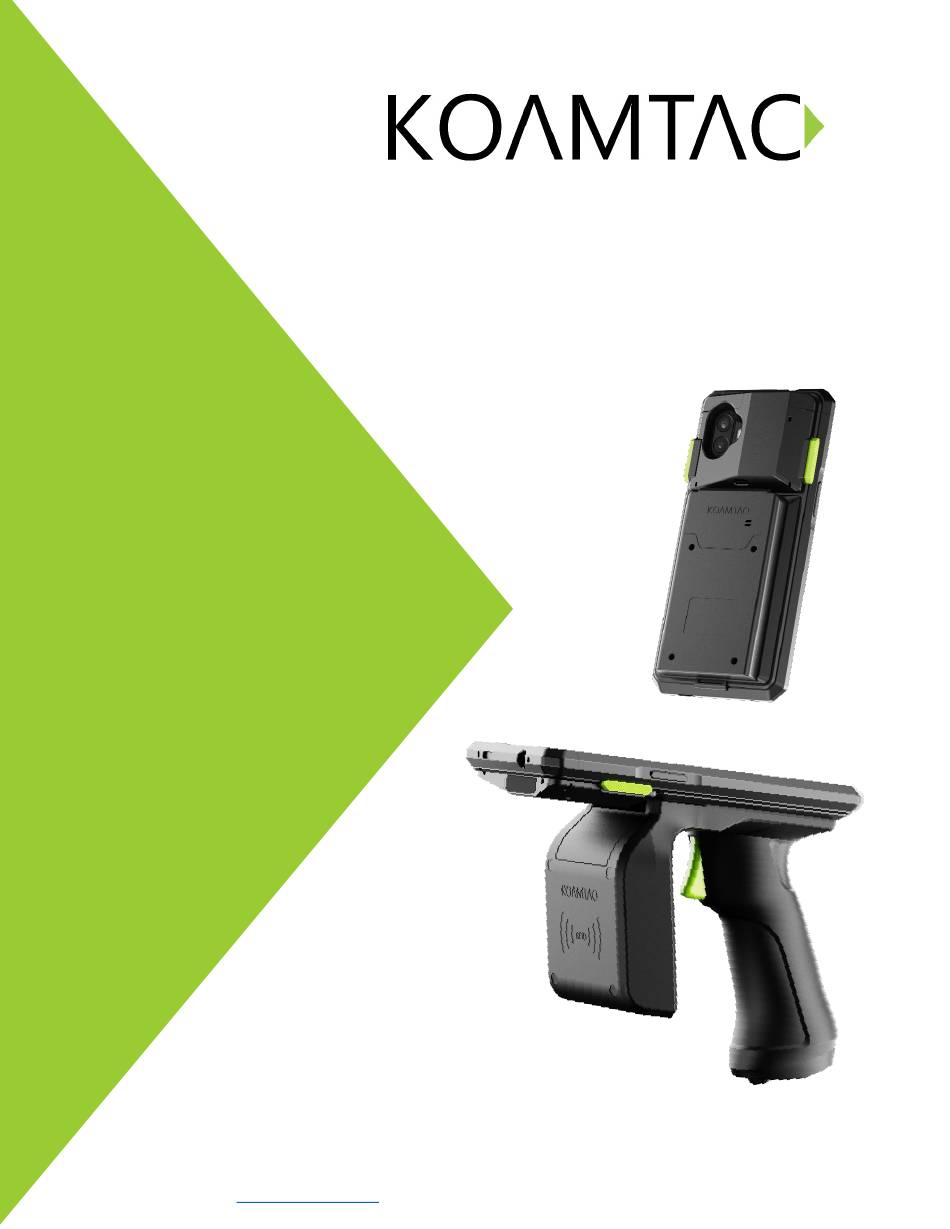

- Page 1 SKX Series UHF Quick Guide 100 Village Blvd, Suite 300, Princeton, NJ 08540 USA ©2025 KOAMTAC, Inc. T: + 1-609-256-4700 QG_SKX_UHF info@koamtac.com www.koamtac.com...
-
Page 2: Table Of Contents
SKX series 0.5W UHF Reader Diagram ......................3 How to turn on and off ..........................3 Connectivity ................................4 Connection Between the Smart phone and the SKX series ............... 4 Usage ..................................5 Toggling the Read Mode: Barcode mode vs. UHF mode ................5 Changing the UHF Read Tag Modes: Single, Multiple, or Active .............. -
Page 3: Product Introduction
SKX Series UHF Quick Guide Product Introduction The 1.0W or 0.5W UHF Reader is attached to the back of SKX series SmartSled Scanner. 1.1 SKX series 1.0W UHF Reader Diagram * 1.0W UHF Reader mounted to SKX series See Reference Manual for more detailed information. -
Page 4: Skx Series 0.5W Uhf Reader Diagram
The SKX series works only when the smart phone is mounted into SKX series Scanning Sled. If you need to access the SKX series or the smart phone, you can access them by using the USB port from the back of the SKX series. -
Page 5: Connectivity
USB HID connectivity by default. This allows the SKX series to function as a keyboard. The SKX series is also able to utilize USB Serial connectivity. It is recommended to use USB Serial mode for using UHF reader. -
Page 6: Usage
The SKX series UHF reader should be used by a professional person who fully understands how to operate the SKX series UHF reader. • Maintain at least 20cm (about 8 inches) between the SKX series UHF reader and the body when reading UHF RFID tags. •... - Page 7 SKX Series UHF Quick Guide o 2 short beeps will occur when changing mode. o Time setting can be changed in Settings ->Reading Timeout. • Active Mode: Basic operation status. Simultaneous reading of multiple tags while pressing the scan button (max. 10 minutes) o 3 short beeps will occur when changing mode.
-
Page 8: Uhf Tag Counting (Beep Count)
SKX Series UHF Quick Guide 3.3 UHF Tag Counting (Beep Count) By setting the Count attribute, you can get an estimate on how many tags are read per beep. • Count = 0: The device only beeps once when you start reading •... -
Page 9: Using "Kdcuhf" Application - Android
Start KDCUHF you just installed then KDCUHF is automatically connect to your SKX series. b) If you want to connect to the SKX series manually, please use the menu “Connect” from KDCUHF. c) Select “INVENTORY” and approach your UHF tags to read. - Page 10 SKX Series UHF Quick Guide g) To change the read mode, select the Barcode Mode button. Unique Tag Number of unique tags read Speed Average speed to read tags, in pcs/s (Total Tag / Total Time) Total Tag Total number of tags read...
-
Page 11: Using Other Developed Applications With Free Sdk - Android
A Software Development Kit (SDK) for Android is available to all KOAMTAC customers to ensure smooth development of applications that work seamlessly with SKX series scanner. It’s easy to request the SDK from the KOAMTAC website: a) On any web browser, open www.koamtac.com... -
Page 12: Product Specifications
SKX Series UHF Quick Guide Product Specifications 4.1 1.0W UHF Reader Design Pistol Grip UHF Reader Physical Weight (w/o KDC) 14.99 oz (425 g) Supported Standards EPC Class1 Gen2, EPC Gen2 V2 20’+ (6m+) Nominal Read Range dependent on tag type and operating environment...
