Maintaining the Cisco Remote PHY Shelf 7200

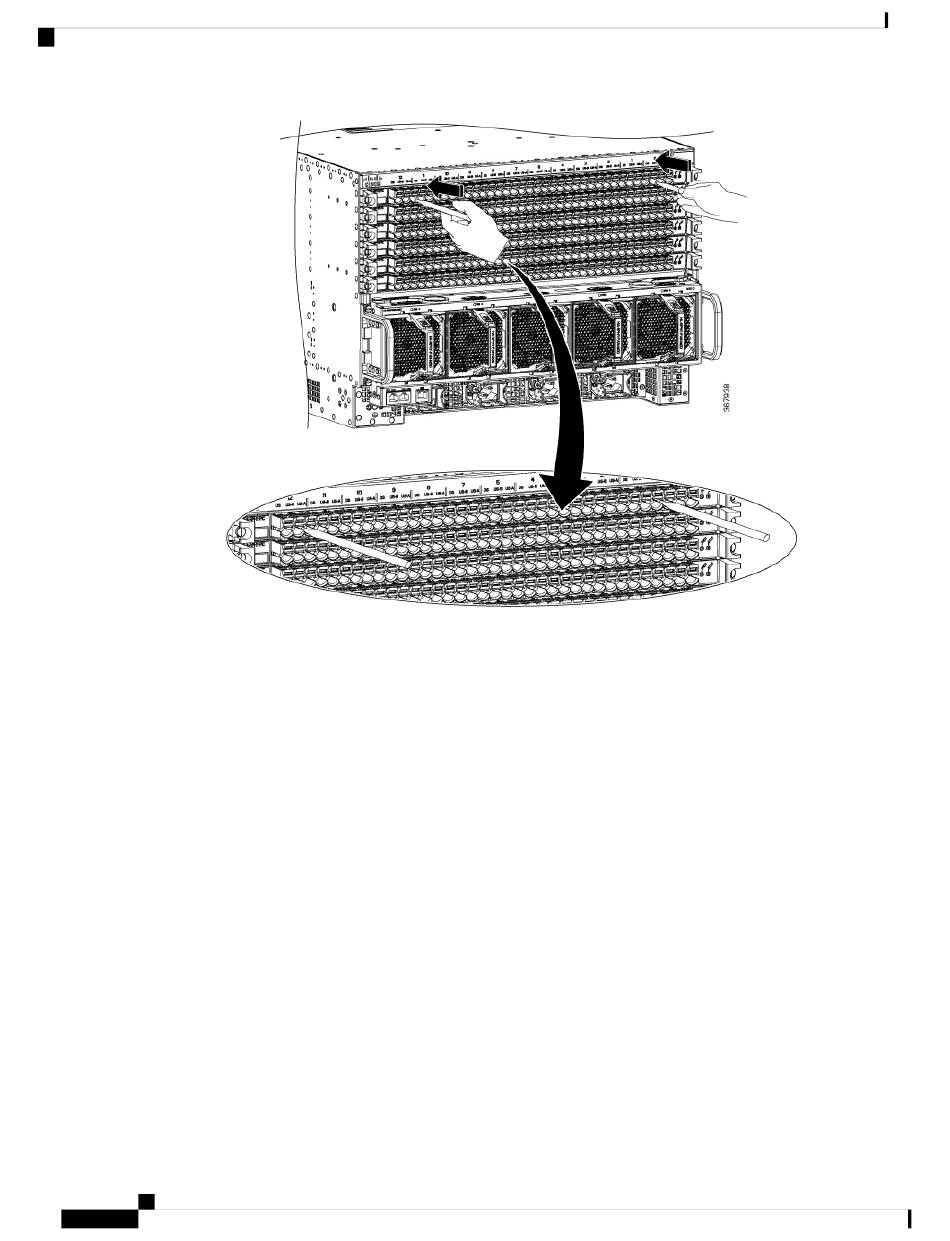

Opening the PIC Connector Latches
4. Use the PIC removal tools as handles to pull the RF PIC card out of the system.
Opening the PIC Connector Latches
The PIC connector latches are springs designed to close automatically when cables are patched into them.
When opened they want to spring back closed.
You can choose to actuate the latch using your fingers or by using a tool.
• You can actuate the latches with your fingers. There is no end detent that keeps them open. To actuate
the latch, gently lift the latch upward.
