Avansa 110-Z Instructions For Use

110-Z
AVANSA
CONTROLLER FOR CIRCULATION PUMP AND
1. AREAS OF USE
AVANSA 110-Z is a modern electronic controller that can be used in the heating equipment of
solid fuel boilers for the coil of a heat circulation pump (radiators) and a pump that supplies heat
to the coil of a hot water storage (hot water) boiler.
The controller will operate both pumps as follows:
- The circulation pump will start working if the temperature of the heating medium in the boiler
(measured by sensor 1) is higher than a certain set value (70°C - 80°C is recommended), and
will stop the circulation pump if the temperature drops below this value.
- The hot water boiler pump will work based on the temperature difference. The pump will start
working when the temperature of the heating medium in the boiler (measured by sensor 1) is
higher than the hysteresis value (set by the user) than the temperature of the water in the
storage boiler (measured by sensor 2). The hot water pump will stop when the temperature in
the boiler reaches the value set by the user or when the temperature in the boiler has the same
value as the temperature of the heating medium in the boiler.
If the priority mode P for domestic hot water is activated, then the heat circulation pump will be
turned off until the water temperature in the boiler reaches the set value.
The AVANSA 110-Z has a function called ANTI-STOP that prevents the pump rotor from
snapping. If the pump does not work at all for 15 days, the controller automatically starts the
pump for 15 seconds. An additional safety function is the ANTI-FROST function, which starts
the pump when the heating substance temperature drops below 5°C.
functions, you must always leave the controller turned on.

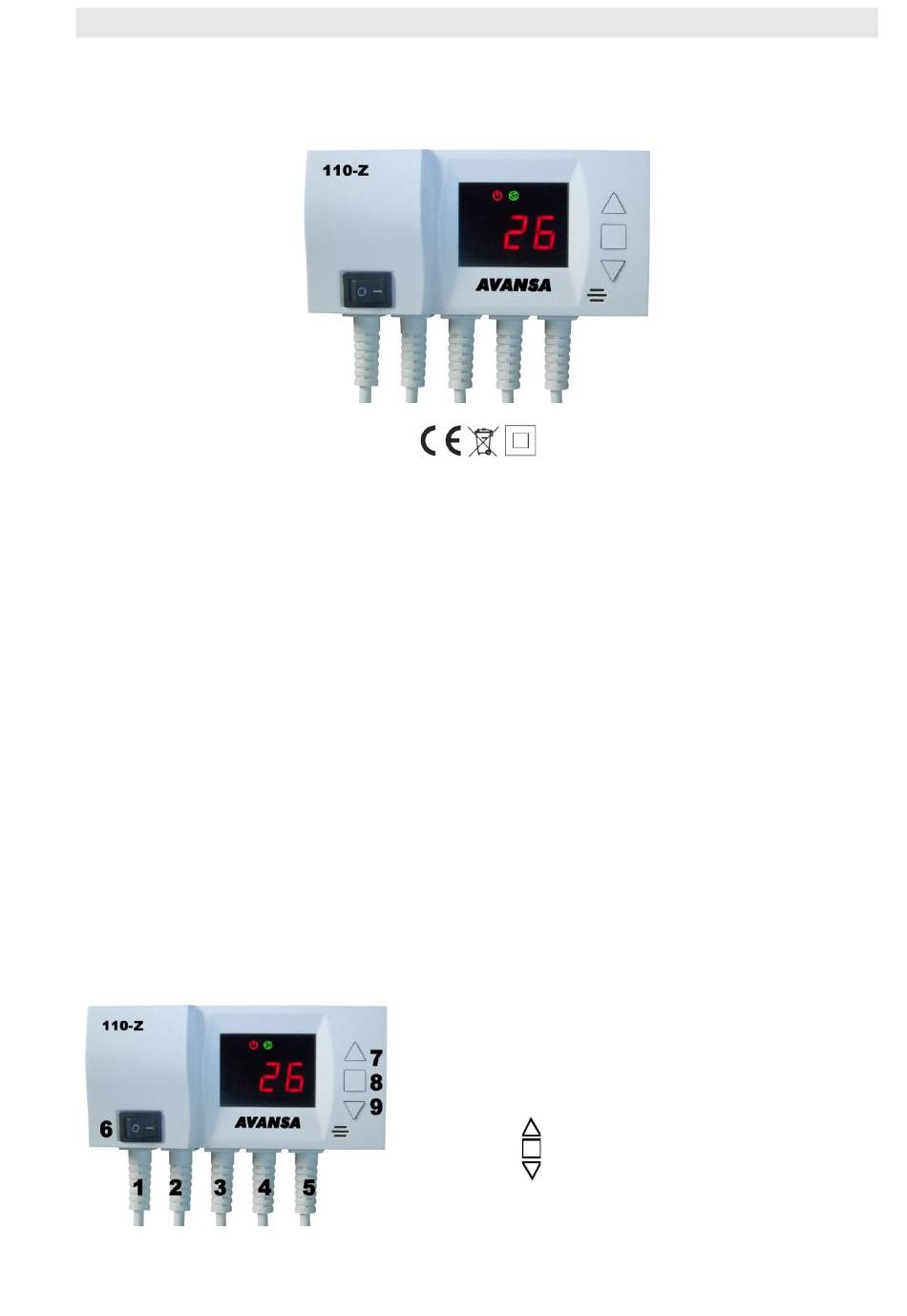

2. DESCRIPTION OF THE CONTROLLER
INSTRUCTIONS FOR USE
AVANSA 110-Z
HOT WATER BOILER SUPPLY PUMP
1. 230 VAC~ controller power supply (plug cable)
2. 230 VAC~ circulation pump supply
3. 230 VAC~ hot water boiler pump supply
4. Temperature sensor cable 2 (ACM boiler)
5. Temperature sensor cable 1
6. On (I) / Off (O)
7. Button
8. Button
9. Button
- temperature increase
- temperature setting
- temperature reduction
1
To perform these
