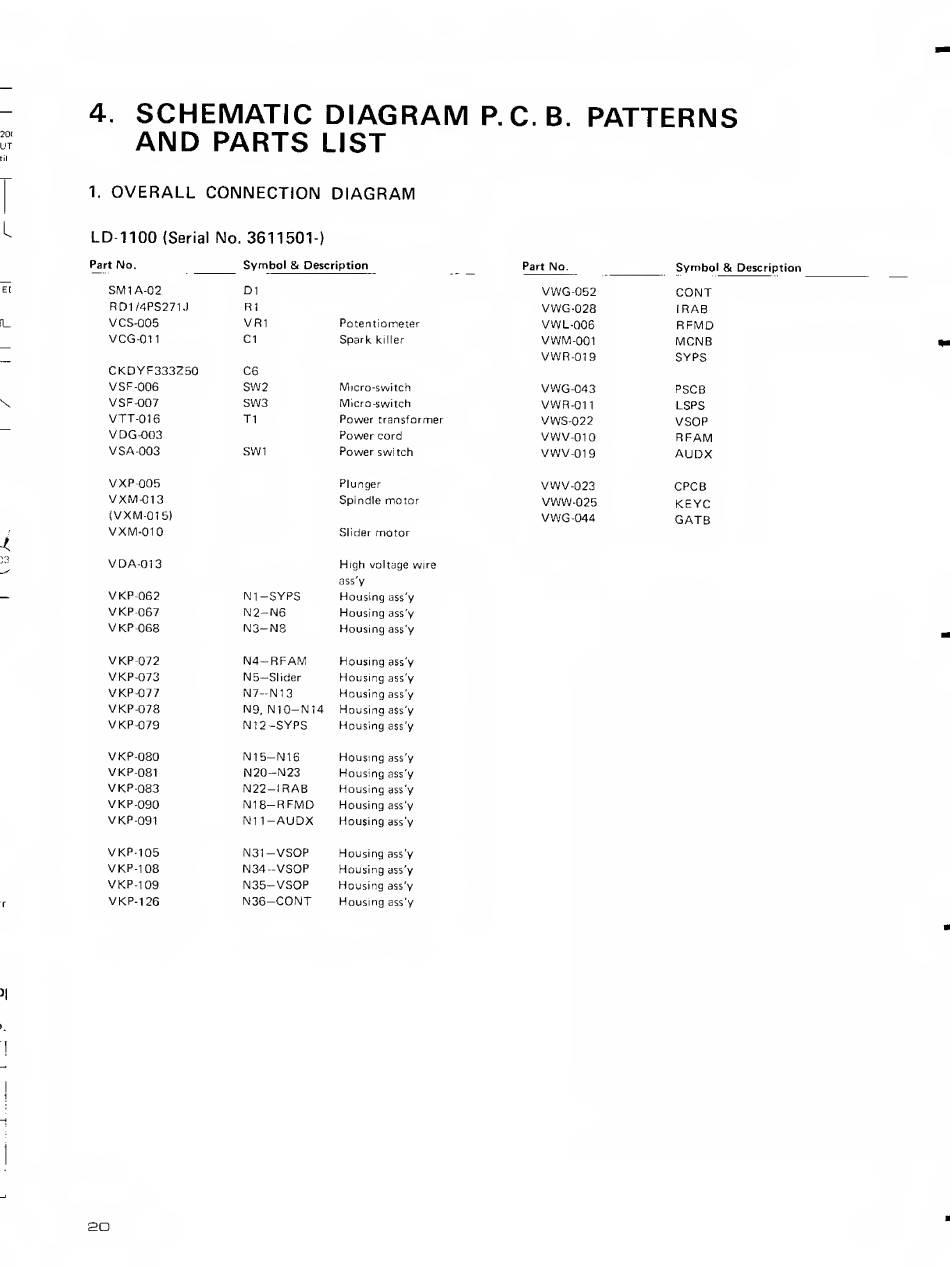

4. SCHEMATIC DIAGRAM P. C.B. PATTERNS
AND PARTS LIST
1. OVERALL CONNECTION DIAGRAM
LD-1100 (Serial No. 3611501-)
Part No, Symbol & Description
Part No.
Symbol & Description
SMI A-02
D1
VWG-052
CONT
RD1/4PS271J R1
VWG-02a
IRAB
VCS-005
VR1
Potentiometer
VWL-006
RFMD
VCG-011
Cl
Spark killer
VWM-001 MCNB
VWR-019
SYPS
CKDYF333Z50 C6
VSF-006
SW2 Micro-switch
VWG-043
PSCB
VSF-007 S\N3 Micro-switch
VWR-011 LSPS
VTT-016
T1
Power transformer
VWS-022
VSOP
VDG-003
Power cord
VWV-010
RFAM
VSA-003 SWl Power switch
VWV-019 AUDX
VXP-005 Plunger
VWV-023
CPCB
VXM-013 Spindle motor
VWW-025
KEYC
(VXM-015)
VWG-044
GATB
VXM-010 Slider motor
VDA-013
High voltage wire
ass'v
VKP-062
N1-SYPS Housing ass'y
VKP-067 N2-N6 Housing ass'y
VKP-068 N3-N8 Housing ass'y
VKP-072 N4-RFAM
Housing ass'y
VKP^073 N5-Slider
Housing ass'y
VKP-077
N7-N13 Housing ass'y
VKP-078
N9, N10-N14 Housing ass'y
VKP-079
N12-SYPS Housing ass'y
VKP-080
N15-N16 Housing ass'y
VKP-081 N20-N23
Housing ass'y
VKP-083
N22-IRAB Housing ass'y
VKP-090 N18-RFMD Housing ass'y
VKP-091 N11-AUDX Housing ass'y
VKP-105 N31-VS0P Housing ass'y
VKP-108 N34--\/SOP Housing ass'y
VKP-109 N35-VSOP Housing ass'y
VKP-126
N36-CONT
Housing ass'y
20
