USER GUIDE
MHD-A1U-C44
User Guide: 4x4 MHD-A1U-C44
This guide will help you control the front panel buttons of your device, find its IP
address, access its WebGui, and more. By following these steps, you should be able to
use your device with ease. If you have any further questions or issues, please refer to the
user manual or contact customer support for assistance.

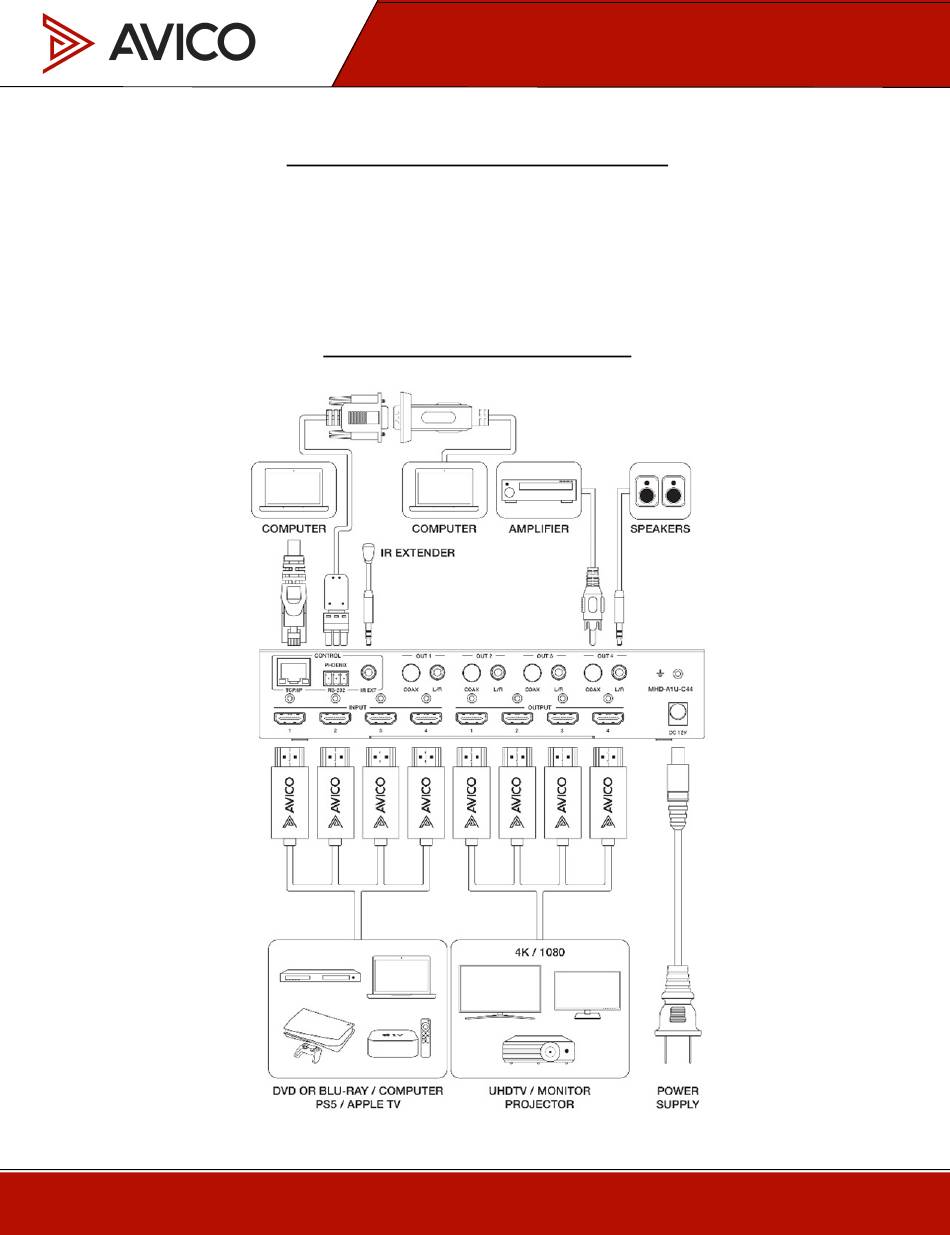

CONNECTION DIAGRAM:
Support: contact@avicotech.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MHD-A1U-C44 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avico MHD-A1U-C44

  • Page 1 USER GUIDE MHD-A1U-C44 User Guide: 4x4 MHD-A1U-C44 This guide will help you control the front panel buttons of your device, find its IP address, access its WebGui, and more. By following these steps, you should be able to use your device with ease. If you have any further questions or issues, please refer to the user manual or contact customer support for assistance.

  • Page 2: How To Use Remote

    USER GUIDE MHD-A1U-C44 HOW TO CONTROL FRONT PANEL: Light: The red light indicates that the Matrix is active and ready to operate. Green Lights: The green lights show which input source is selected for each output. Each output has its own dedicated button that cycles between all four input sources.
  • Page 3 USER GUIDE MHD-A1U-C44 HOW TO FIND IP ADDRESS Method 1: Use an IP scanner application like Advanced IP Scanner to identify the Matrix on your network. The Matrix name usually appears as “IP Module” but it can appear as a different name.
  • Page 4 USER GUIDE MHD-A1U-C44 Accessing the Web GUI: The WebGui grants access to a wide range of options, including resolution controls, audio controls, video selections, preset video selections, and many more. Once you know the IP address of your Matrix, open a web browser on the same network and type in the IP to the browser.
  • Page 5 USER GUIDE MHD-A1U-C44 DISPLAYING 4K CONTENT By default, the Matrix preloads all inputs as 1080pP to automatically display on all outputs. Access the WebGui to set the desired EDID settings under Input Settings. Once the input is set to the desired EDID, in this case, 4K, it will push through 4K on all outputs.

  • Page 6: Audio Output

    USER GUIDE MHD-A1U-C44 AUDIO: Each output has a dedicated 3.5mm Aux & coax port. If you connect Speakers to Output 1 3.5mm Aux/Coax these speakers will only output the audio of whatever input is being transmitted to output 1. AUDIO OUTPUT...
