Summary of Contents for DL4KA LiNK500

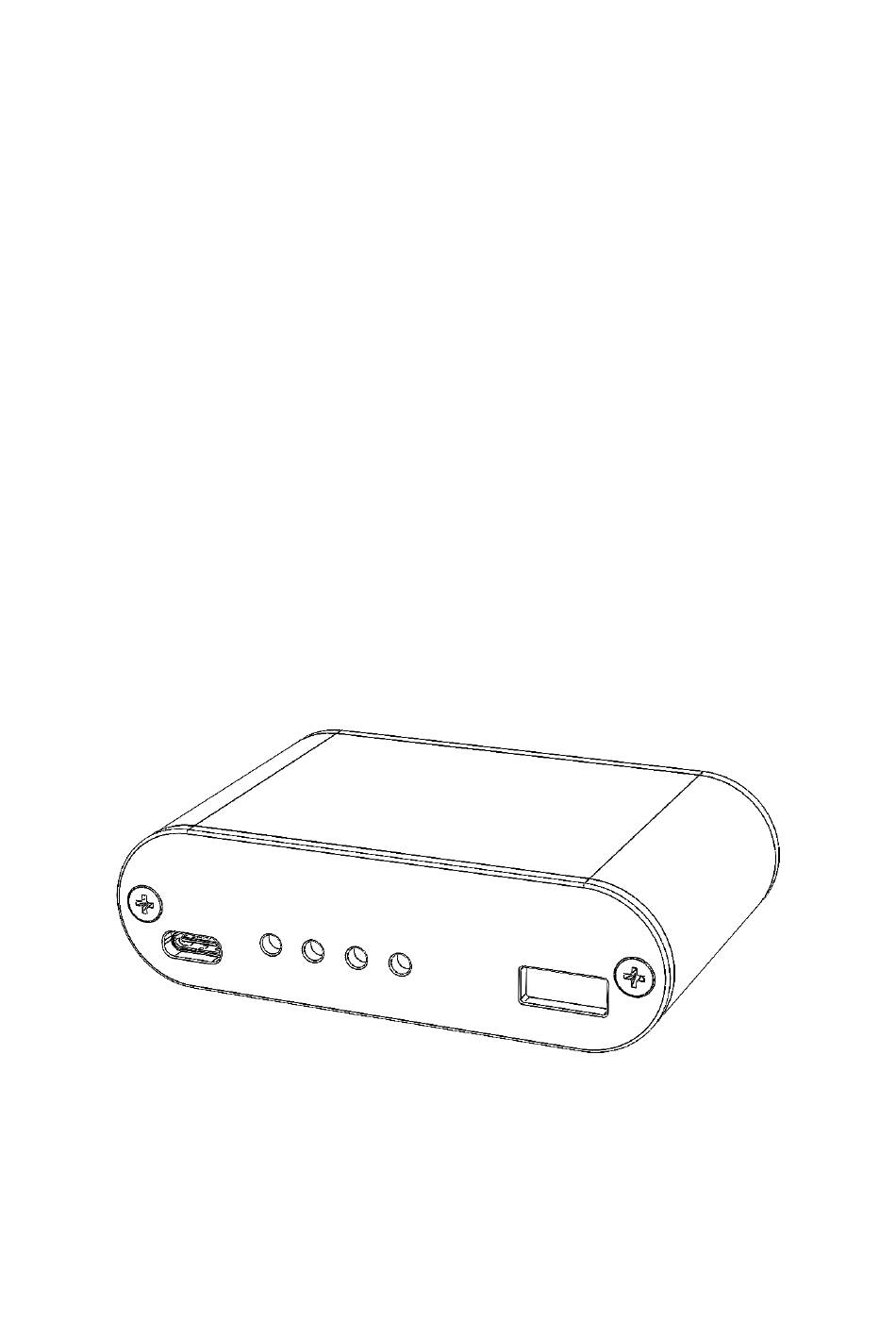

- Page 1 DIY599.com multi standard TNC with standalone APRS Tracker LiNK500 INSTRUCTION MANUAL Version 2.3 / Revision 4 The device requires an amateur radio transceiver to operate. This device is for use by licensed radio amateurs only © 2024 DL4KA...
-
Page 2: Table Of Contents
Table of Contents Introduction and Overview ........................3 Jumper configuration ..........................6 LiNK500 Protective internal circuits ....................... 6 Configuration and Wiring ........................7 Transceiver connection in general ....................... 13 Radio Data-Port audio amplitude setup ....................13 safety instructions ..........................15 device specifications .......................... -
Page 3: Introduction And Overview
This makes it ideal for amateur radio operators and those using digital communication protocols in various applications. Secondary Purpose: The LiNK500 also functions as an interface for connecting to a PC, allowing users to engage with software applications such as: •... - Page 4 Supports the KISS (Keep It Simple, Stupid) protocol for terminal node controllers, making it easy to integrate with existing systems and software. 4. Super Low Power Consumption: Designed for efficiency, the LiNK500 consumes minimal power, making it suitable for portable and solar operated setups. 5. theQRPstation/PA500 Integration: Seamlessly integrates with the theQRPstation and PA500, providing a cohesive experience for users looking to enhance their low-power operations.
- Page 5 LiNK500 Contents, LEDs, Ports, and Jumpers Fron Panel The USB Interface type for a connection to an external Host like a PC is a USB-C Connector. An additional USB-A Port (5V / 100mA) is for additional equipment like a Radio with an USB connection.
-
Page 6: Jumper Configuration
Reverse polarity protection Diode f. Ext. Power Protect the LiNK500 to reverse voltage polarity Resettable 100mA Overcurrent fuse Protect the LiNK500 USB-A port in case of for the 5V USB-A voltage overcurrent Resettable 20mA Overcurrent fuse Protect the LiNK500 Interface port in case of for 3.3V Interface voltage... -
Page 7: Configuration And Wiring
Configuration and Wiring TX500 TX-500 Menu Settings Use: DIG mode Set the DIG-Level to: 90% (menu09) CAT config is: 9600,n,8,1 Rig is: Kenwood TS-2000... - Page 8 AF Gain 50%, MIC Gain 50%, AGC setting = fast, compression = off, notch filter = off, noise blanking = off, noise reduction = off For FT8, JS8Call, Vara, VaraC operation via USB which use the LiNK500 USB-PnP Audio feature: Set to USB (upper side band)
- Page 9 Xiegu G90/G106/G5105 Xiegu Gxxxx Menu Settings Use: DIG mode CAT config is: 19200,n,8,1 Rig is: ICOM IC-7100...
- Page 10 Yaesu FT817/818/891...
- Page 11 Elecraft KX2...
- Page 12 ICOM IC-7100,IC-7200,IC-7300,IC-703,IC-706 Kenwood TS-480...
-
Page 13: Transceiver Connection In General
Transceiver connection in general Due to the variety of radios, connecting the LiNK500 TNC to the radio is a bit more complicated. Robust-Packet uses differential phase modulation (DPSK) as the modulation type, which leads to a very narrow spectrum. To maintain this favorable property on the band, careful adjustment of the transceiver is required. - Page 14 Don’t overdrive the TRX because in this case the signal will be broadened and corrupted! Don’t be confused, as many modern SSB transceivers only display the peak envelope power. If it is necessary to set the MIC-Gain value to more than half of its maximum, it is recommended to increase the output level of the DSP TNC.
-
Page 15: Safety Instructions
safety instructions EM interference This equipment has been tested and found to comply with the defined limits for amateur radio equipment. This device is tested in a laboratory, all measurements were applied with suitable measuring devices. The device itself does not emit radio frequency energy to the antenna without a connected amateur radio transceiver. -
Page 16: Device Specifications
LiNK500 NF-Input impedance 50 KOhm NF-Input Level 0 mVss–2Vss NF-Output impedance 2.5mm Jack 27KOhm NF-Output impedance DATA-Port 100 Ohm NF-Output Level 3.5mm Jack and DATA-Port max. 3 Vss configurable in 1 mV steps NF-DSP processing Teensy 4.0 Plattform Module Working temperature range -10°C - +40°C... -
Page 17: General Troubleshooting
GENERAL TROUBLESHOOTING fault description Possible reasons solution... -
Page 18: After-Sales Service Policy
AFTER-SALES SERVICE POLICY If this kit is bought in the European union, this product has a limited two-years warranty effective from the date of purchase. This warranty covers only manufacturing and parts defects. It does not cover damage caused by lightning, excess voltage on the power supply, accidental damage or purposeful damage or misuse. -
Page 19: Regulatory Information
REGULATORY INFORMATION United States of America Contains FCC ID:A8TBM78ABCDEFGH This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 20 Europe The RN4678 module is Radio Equipment Directive (RED) assessed, CE marked, and has been manufac tured and tested with the intention of being integrated into a final product. The RN4678 module has been tested to RED 2014/53/ EU Essential Requirements mentioned in the following European Compliance table.
- Page 21 Taiwan UKCA (UK Conformity Assessed) The RN4678 module is a UK conformity assessed radio module that meets all the essential requirements according to CE RED requirements. Hereby, Microchip Technology Inc. declares that the radio equipment type RN4678 is in compliance with the Radio Equipment Regulations 2017.
-
Page 22: Warranty Limitations
WARRANTY TERMS For amateur radio LiNK500 TNC legal guarantee determinations apply only if the device is operated in a manner corresponding to its intended use. This includes the compliance with the operating limits mentioned in this manual. -
Page 23: Disclaimer Of Liability
DISCLAIMER of LIABILITY All LiNK500 specifications and descriptions are based on the latest information available at the time of this document’s printing. As we are always striving to improve and update our products, ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE and DIY599 reserves the right to make...
